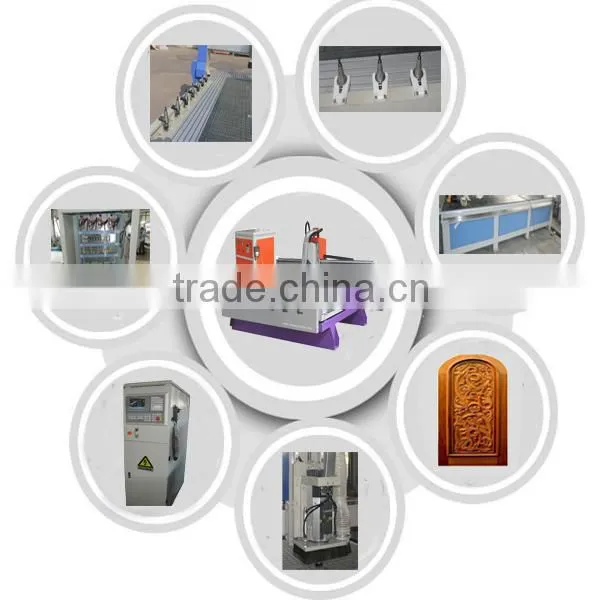

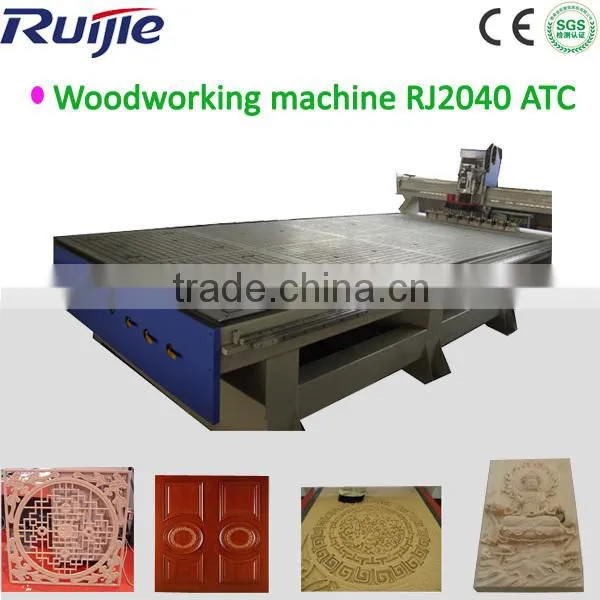

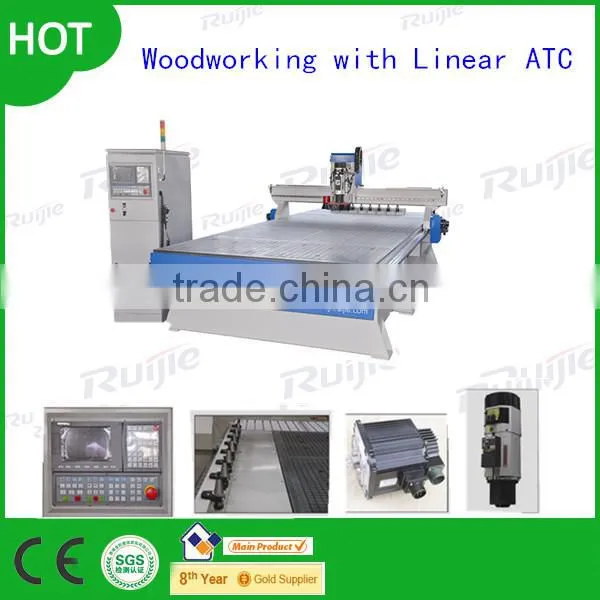

Woodworking Linear ATC RJ2040
1.Features
* Adopt domestic 5.5KW ATC water cooling spindle of large power
(Option:Italy 9.0KW HSD air cooling spindle)
* Japan Yaskawa Servo motor.
* Unique Auto Tool Changer system .
* Tool magazine standard capacity of 8 tools,(Optio:more than 8 tools).
3. Parameters:
Model |
RJ-2040 Linear ATC |
Working Area |
2000×4000mmx300mm |
Max Travelling Speed |
60000mm/min |
Max Engraving Speed |
25000mm/min |
Transmission |
X,Y axis High Precision Rack Gear,Z Axis Imported Ball Screw |
X,Y,Z Guide Rails |
HIWIN Square Rail |
Control System and Driver |
DSP Control System |
Accuracy |
0.08/300mm |
Spindle motor |
5.5 KW Domestic water cooling |
Spindle speed |
6000-24000rpm |
Tool Magazine and Tools NO |
Side Linear,8 tools |
Motor/Driver |
Japan YASKAWA Servo System 850W |
Machine Power |
5.5KW |
Fixing Method |
T-Slot aluminum &Vacuum absorption |
Working Environment |
Temperature:0—45°C Humidity 5%—95% ( No condensate water) |
Supported Format and Software |
PLT,DST,DXF,BMP, AI, Support AutoCAD,Corel Draw output directly |
Warranty and After-Sale Service of CNC Metal Cutting Machine
2) 24 hours technical support by email or calling;
3) Friendly English version manual and operation video CD disc.
4) Samples for free
5) CE/ISO certificate
Jinan Ruijie Mechanical Equipment Co.,Ltd is one of the top leading professional manufactures of Advertising Machine,Woodworking Machine and Laser Machine.
JINAN RUIJIE is a high-tech enterprise who is committed to providing medium&small power laser equipment,CNC Router and plasma machine globally.
Sophia li
Tel/(what'sApp):86-15169047173
Fax: 86-531-88082666
ADD: Jinan Ruijie Mechanical Equipment Co., Ltd
Daliu sect, North of 308 national highway daqiao, Tianqiao zone,
Jinan city, Shandong province, China. (Zip: 25012)
