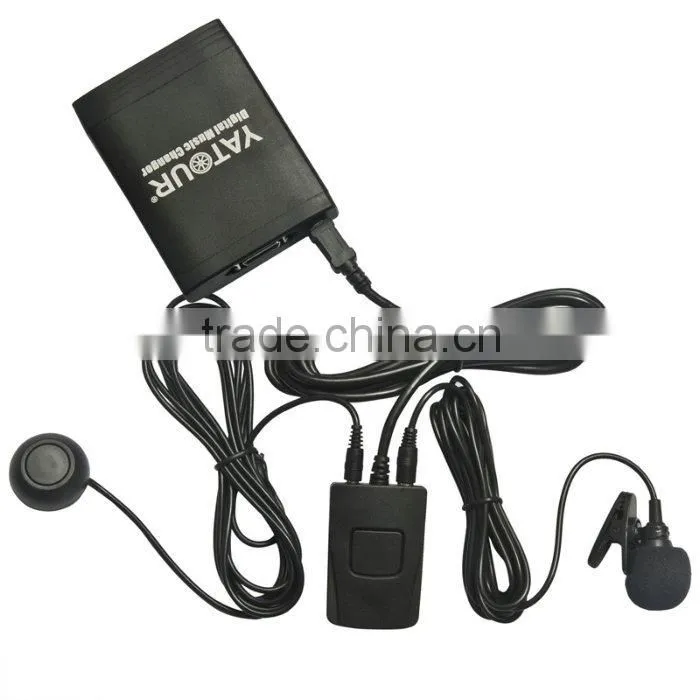

Yatour universal car stereo remote control with car bluetooth handsfree connect YT-M06
New arrival~~~!! Car stereo adapter for Bluetooth connection
Specification:
Voltage |
DC 11V~14.6V |
Frequency Response |
20HZ-20KHZ |
Operating Temperature |
-35℃~+75℃ |
Outage Memory |
√ |
MP3 player function |
√ |
FM radio funtion |
√ |
Support |
Radio button support; Mobile phone Recharge |

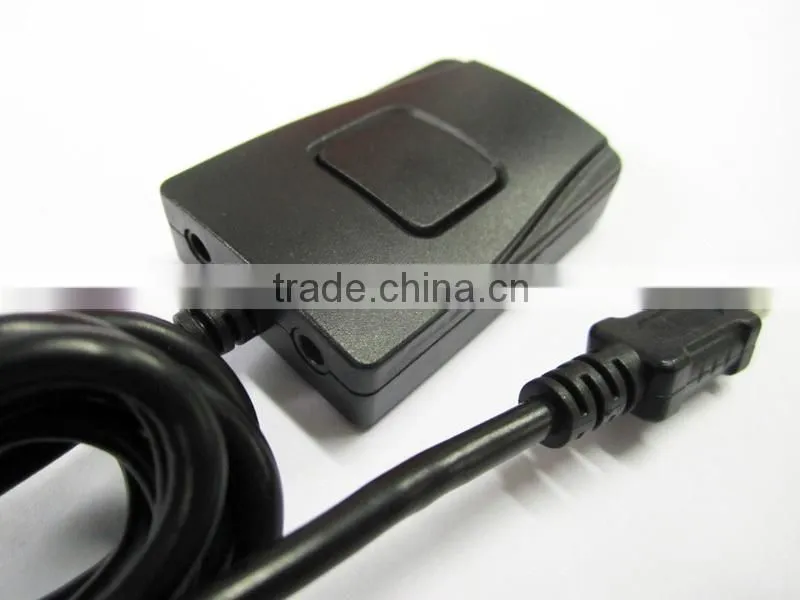

YT-BTM Bluetooth Module Car Kit | |
Bluetooth car kit,hands free phone call,A2DP music streaming, quality sound connect with Yatour yt-m06
BTM Main feature:
1. Hands free phone call via factory car stereo system.
2. Wireless Bluetooth A2DP music streaming into factory car stereo system.
3. Controlled via YT-BTM button,YT-REMO button, car radio button and Steering wheel button.
4. Excellent quality sound from radio speaker and from microphone for HFP and A2DP.
5.LED indicator continuously displays the working status of YT-BTM
6. Automaticly pauses when a phone call is made or received, then resume once the call has ended (Requires pressing CD button to resume A2DP playback for Apple devices).
7. Supports connected with only one Bluetooth device each time.
Supports Bluetooth enabled devices like iPhone,Android phone,other bluetooh capable phone ,bluetooth enabled GPS,etc.
8. Bluetooth distance limitation: 6-8 meters.
9. Bluetooth pairing needs to be performed only once.
After pairing is completed ,your phone will automatically connect to YT-BTM upon ignition start (whether radio on or off) or once your phone is back into discoverable distance.
10. No need to disconnect other audio sources to use Bluetooth.
Once YT-BTM is in use, other audio sources (USB/SD/iPod/AUX) will be automatically paused (except AUX) and muted.
11. Supports Bluetooth Voice Dialing .
Special for mobile phones supporting voice dialing over Bluetooth
patible with Bluetooth version 2.1, and downward compatible with lower Bluetooth version
YATOUR Digital music changer is Car MP3 Interface (CMI) , which can be easily installed and used. Digital Music Changer USB/SD MP3 Adapter with built-in high quality MP3/ WMA decoder, controls from car radio & steering wheel.
It is deliver CD quality music directly into car stereo system via CD changer port.
Yatour other compatible Car Audios:
Toyota/BMW/Peugeot/Citroen/Ford/Suzuki/Volvo/Nissan/Mecedez/Smart/Fiat/Alfa/Opel/Lancia/Scion/Lexus/ Honda/Acura/ VW/Skoda/Audi/Lamborghini/ Mazda/ Hyundai/ Kia/ Mitsubisi/Outlander
Retrofit Audio: Sony/ Alpine/Clarion/Pioneer/Panasonic /Sanyo/Blaupunkt
As space is limited here, please contact us for further detailed vehicle models.
Installation Guidance:
1. After finishing installation for Yatour YT-M06/ YT-M05/YT-M07,connect YT-BTM to bluetooth port of YT-M06 or YT-M05 or YT-M07. Mount the YT-BTM module away from metal structures in the dash and as close to the phone as possible.
2. Then connect our microphone to microphone port of YT-BTM. Choose a proper mounting location for the microphone either on the upper part of A-pillar on driver side or near centre rear view mirror or head liner console control panels region. Avoid mounting the microphone by the side windows to eliminate extra noise. Please also avoid mounting behind visor to avoid blocking voice from reaching the microphone.
3. Carefully route the microphone cable down into the dash where the YT-BTM module is installed. Carefully arrange plugs at last.
4. Turn on the car stereo and switch to CD mode, then start to pair your mobile phone with YT-BTM.
Notice:

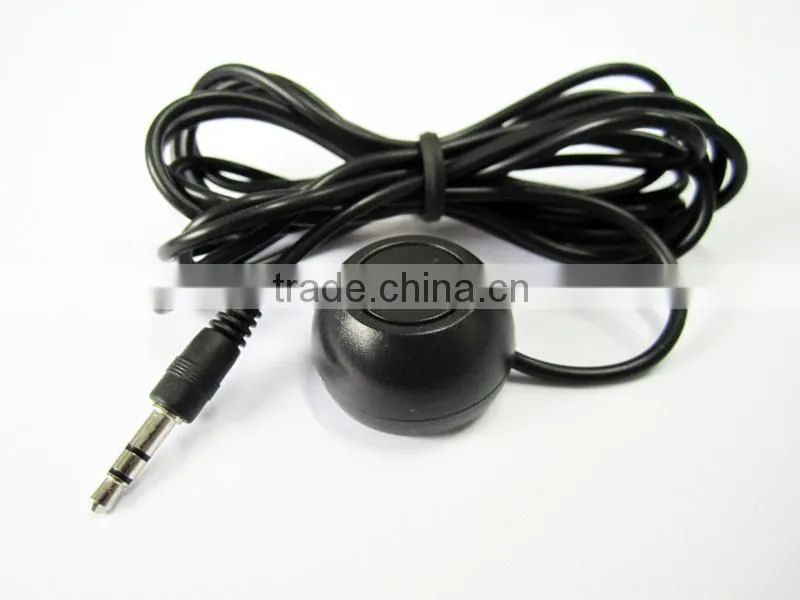

If users already have Remote Control Unit (YT-REMO), Bluetooth module could be hidden under radio panel or glove box etc, and only Remote Control Unit’s small head is placed and seen on radio panel or A pillar or any other positions easily touched bydriver, and carefully arrange plugs at last.
Simply pair it with any Bluetooth enabled mobile phone, and it will allow you to make and receive calls hands free through your car stereo speakers. Also provides a separate microphone for added convenience and optimum sound quality. Music playing automatically pauses when a call is made or received and then :
1. Automatically resumes when call is ended on YT-M06;
2. Resumes via pressing radio CD buttons on YT-M05;
Supports Bluetooth version 2.1 and lower version
Compatible with most Bluetooth-enabled phones
*Standard packing box : 210 x 150 x 60 mm
*Half-size packing box : 150 x 105 x 60 mm
*Module weight : 90g
*Gross weight : 220g~400g .
Customs code (HS code):8522909100
If you already have YT-M06 or YT-M05 or YT-M07 on hand and you want to purchase YT-BTM , Please check your BT slot carefully and notify the seller the type of BT slot you own before your purchase.

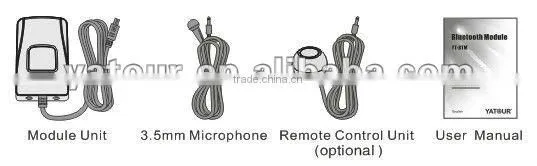

Accessories:
Usage

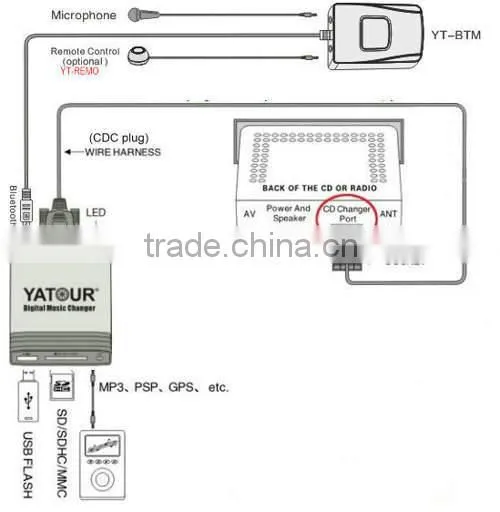

How to connect YT-BTM with YT-M06/YT-M05:
This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.
If you have any problem, please feel free to contact me.
