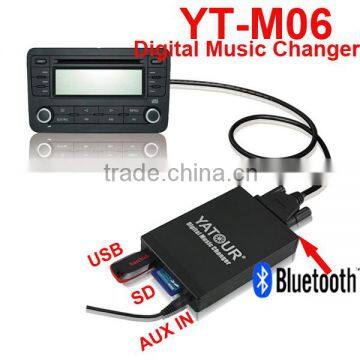

YT-M06 yatour cd changer mp3 aux input
1. Features:
* Support USB / SD / AUX IN;
* Deliver Original CD quality sound through CD Changer port ;
* Plug and Play ;
* Direct controls from car radio panel ;
* Supports last position memory(LPM) ;
* Able to work together with original Mechanical Disc Box, arbitrary switch playing allowed;
* Optional Bluetooth function support.
2. Specifications :
| Voltage input:11v~14.6v DC | Operational current: 200mA |
| Standby current : 3mA | Operating Temperature : -35 °C~+85 °C |
| DAC resolution : 20bit | Total harmonic distortion : 0.05% |
| SN ratio : 90dB | Frequency response : 20Hz-20KHZ |
3. Compatible car :
1999-2003 VW/Audi/Skoda/Seat 8pin |
2004-2011 VW/Audi/Skoda/Seat 12pin |
2004-2011 VAG with existing CD changer |
1994-1998 VW Gamma4 |
1991-2000 BMW/Mini/Rover 17pin round |
2000-2006 BMW/Mini/Rover 40pin flat |
1991-2006 BMW 3pin+6pin trunk connection |
Smart450(Grundig) 8pin |
1994-1998 Benz 10pin |
97-04 Peugeot/Citroen |
05-11 Peugeot/Citroen |
98-08 Renault/VDO 8pin |
09-11 Renault quadlock 12pin |
05-11 Fiat/Alfa/Lancia blaupunkt |
94-04 Europe Ford/Lincoln |
03-11 Europe Ford quadlock new |
European Suzuki/Fiat/Opel 14pin |
94-00 Volvo (SC headunit) |
99-07 Volvo (HU headunit) |
2006+ Opel CD30 MP3/CD300 radios |
05-11 Toyota/Lexus 6+6 small |
05-11 Toyota/Lexus 6+6 with CD changer |
98-04 Toyota/Lexus 5+7 big |
05-12 Toyota Aygo/Citroen C1/Peugeot 107 |
2006-2011 Honda/Acura |
2006-2011 Honda/Acura with CD changer |
2001-2010 Goldwing GL1800 |
1998-2005 Honda/Acura |
2002-2008 Mazda |
2009-2012 Mazda with can-bus |
2000-2011 Nissan/Infiniti |
04-09 Hyundai standard radio 8pin |
Hyundai/Kia standard radio 13pin |
Alpine M-bus |
Alpine AI-Net |
Becker/Porsche/Ferrari |
Nissan Micra/Blaupunkt with DMS symbol |
Clarion CE-NET/ Suzuki/Subaru |
JVC Unilink |
Pioneer IP-Bus |
Sony |
Sanyo |
4. Installation Diagram :
This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.
Note : Mp3 / CDC Swith cable is optional , available for some vehicles only.
5. How to save music into folders :
1. Name folders as CD01 ,CD02 ,CD03...etc
2. The naming of songs is unrestricted .
3. Don't save music files in the folders of the sub directory , otherwise , can't recognized .
4. Support mp3 / wma .
Below is showing example .
6. Accessories:
1 pc Module , 1pc wireless harness , 1pc 3.5mm aux cable , 1 pc user manual
7. Package:
• Standard packing box : 210 x 150 x 60 mm
• Half-size packing box : 150 x 105 x 60 mm
• Module weight : 90g
• Gross weight : 220g~400g .
