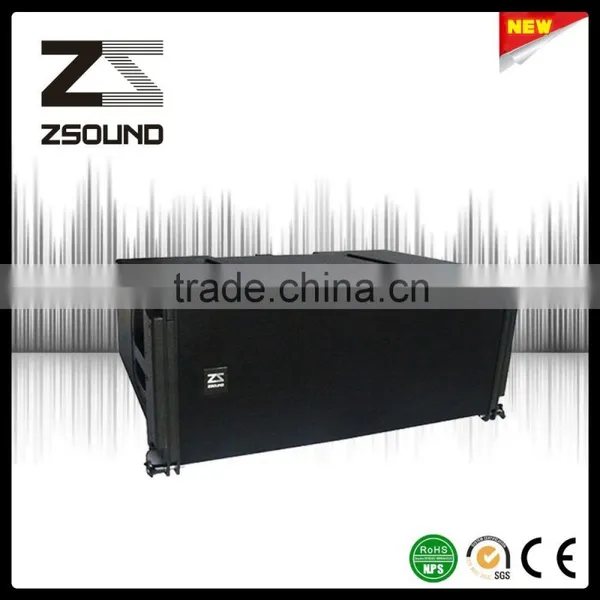

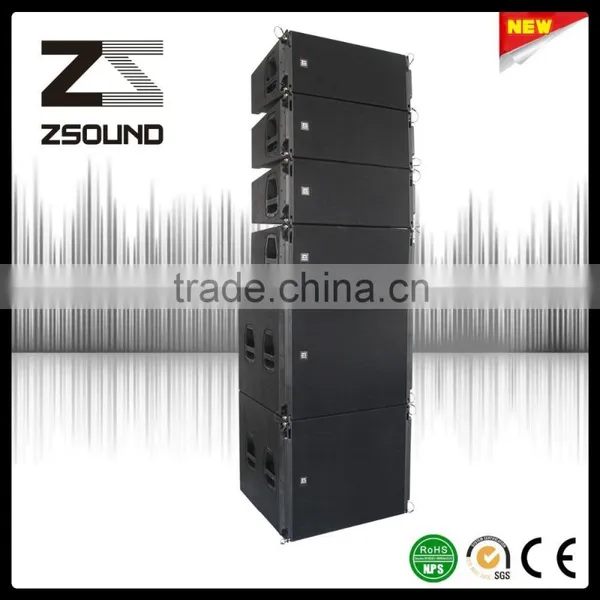

10 inch pro speaker box line array system
Applications
Middle and large touring performance
Stadium
Feature
MF and HF coaxial structure
HIFI class, low frequency elasticty, soft and slim high frequency
Presettable angles
VCM system advantage
3) Neodymium high-sensitivity driver which is deal with and tested by 200 degree high temperature treatment.
3) Three way system, 16ohm nominal impedance, save amplifier
4) the plywood was import from Russia, Just go ahead use outdoor
5) Our hander cup is the same as LA, D&B. All of our spare parts are used penn elco
6) Three points design for hanging, Save manpower and time
7)We use SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision test,And all the data is open. We also have our own EASEFOCUS data and GLL picture for our LA110 system
| TECHNICAL SPECIFICATION | |
| Frequency Response: | 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| Nominal Coverage: | 90°(H) 10°(V) |
| Sensitivity (@1w/1m): | HF:112dB; MF:106dB; LF:103dB |
| Power Rating (AES): | HF/MF/LF:120W/130W/350W |
| Nominal Impedance: | HF/MF/LF:16/16/16Ohm |
| Maximum SPL: | HF:132/138dB;MF:127/133dB; LF:125/131dB |
| Drivers: | LF 2*10" neodymium woofer (75mm voice coil) MF:1*8" neodymium bass(38mm voice coil) HF 2*1.75" neodymium compression driver (44mm voice coil) |
| PHYSICAL DATA | |
| Dimension (H*W*D): | 300*700*465mm |
| Weights: | 39kg |
| Connectors: | 2*NL8 or WP7 connectors |
| Speaker Cables: | 1-2+…LF,3-4+…MF; 5-6+...HF |
| Materials: | 15mm 18mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,7.5 ,10degree adjustable |
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
