EN 10216-2 16Mo3 Seamless Boiler Tubes

FOB Price

US$ 900 - 1,200 / Ton

2 Tons(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Thickness	1.6, 100	Section Shape	Round
Outer Diameter	10.2 - 720 mm	Place of Origin	Hubei, China
Secondary Or Not	Non-secondary	Application	Boiler Pipe
Certification	Other	Surface Treatment	Other
Alloy Or Not	Non-alloy

Product Description

Seamless Boiler Tubes:

Standard: BS EN 10216-2 16Mo3 Seamless steel tubes for pressure purposes — Technical delivery conditions – Non-alloy and alloy steel tubes with specified elevated temperature properties

BS EN 10216 16Mo3 Seamless steel tubes for pressure purposes — Technical delivery conditions

Part2: Non-alloy and alloy steel tubes with specified elevated temperature properties

Applications:

Boiler tubes for temperatures determined by grades, without determination of pressure level.

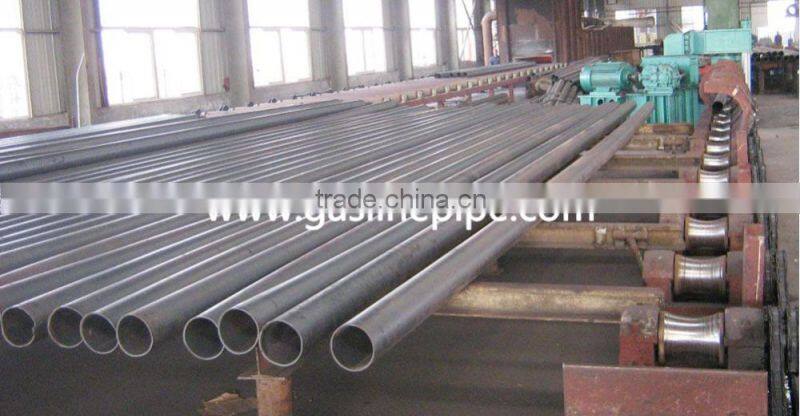

Detailed Images

Chemical Composition:

Grade	Steel No.	C	Si	Mn	P	S	Cr	Mo
P195GH	1.0348	0.13 max	0.35 max	0.70 max	0.025 max	0.020 max	0.30 max	0.08 max
P235GH	1.0345	0.16 max	0.35 max	1.20 max	0.025 max	0.020 max	0.30 max	0.08 max
P265GH	1.0425	0.20 max	0.35 max	1.40 max	0.025 max	0.020 max	0.30 max	0.08 max
16Mo3	1.5415	0.12-0.20	0.35 max	0.40-0.90	0.025 max	0.020 max	0.30 max	0.25-0.35
13CrMo4-5	1.7335	0.10-0.17	0.35 max	0.40-0.70	0.025 max	0.020 max	0.70-1.15	0.40-0.60
10CrMo9-10	1.738	0.08-0.14	0.50 max	0.30-0.70	0.025 max	0.020 max	2.00-2.50	0.90-1.10
25CrMo4	1.7218	0.22-0.29	0.40 max	0.60-0.90	0.025 max	0.020 max	0.90-1.20	0.15-0.30
X10CrMoVNb9-1	1.4903	0.08-0.12	0.20-0.50	0.30-0.60	0.020 max	0.010 max	8.00-9.50	0.85-1.05

Grade	Steel No.	Ni	Al	Cu	Nb	Ti	V
P195GH	1.0348	0.30 max	0.02 min	0.30 max	0.01 max	0.04 max	0.02 max
P235GH	1.0345	0.30 max	0.02 min	0.30 max	0.01 max	0.04 max	0.02 max
P265GH	1.0425	0.30 max	0.02 min	0.30 max	0.01 max	0.04 max	0.02 max
16Mo3	1.5415	0.30 max	0.04 max	0.30 max	/	/	/
13CrMo4-5	1.7335	0.30 max	0.04 max	0.30 max	/	/	/
10CrMo9-10	1.738	0.30 max	0.04 max	0.30 max	/	/	/
25CrMo4	1.7218	0.30 max	0.04 max	0.30 max	/	/	/
X10CrMoVNb9-1	1.4903	0.40 max	0.04 max	0.30 max	0.06-0.10	/	0.18-0.25

Mechanical Properties:

Grade	Steel No.	Wall Thickness 16mm max Yield Strength R2 (Mpa)	Wall Thickness 16mm-40mm Yield Strength R2 (Mpa)	Wall Thickness 40mm-60mm Yield Strength R2 (Mpa)	Wall Thickness 60mm-100mm Yield Strength R2 (Mpa)	Tensile Strength Rm (Mpa)	Elongation(%)(L)
P195GH	1.0348	195 min	/	/	/	320-440	27 min
P235GH	1.0345	235 min	225 min	215 min	/	360-500	25 min
P265GH	1.0425	265 min	255 min	245 min	/	410-570	23 min
16Mo3	1.5415	280 min	270 min	260 min	/	450-600	22 min
13CrMo4-5	1.7335	290 min	290 min	280 min	/	440-590	22 min
25CrMo4	1.7218	345 min	345 min	345 min	/	540-690	18 min
X10CrMoNb9-1	1.4903	450 min	450 min	450 min	450 min	630-830	19 min

Grade	Steel No.	Elongation(%)(T)	Izod Impact (J) at 20°C(L)	Izod Impact (J) at 0°C(L)	Izod Impact (J) at 0°C(L)	Izod Impact (J) at 20°C(T)	Izod Impact (J) at 0°C(T)
P195GH	1.0348	25 min	/	40 min	28 min	/	27 min
P235GH	1.0345	23 min	/	40 min	28 min	/	27 min
P265GH	1.0425	21 min	/	40 min	28 min	/	27 min
16Mo3	1.5415	20 min	40 min	/	/	27 min	/
13CrMo4-5	1.7335	20 min	40 min	/	/	27 min	/
25CrMo4	1.7218	15 min	40 min	/	/	27 min	/

Specification:

Standard	BS EN 10216-2 Seamless steel tubes for pressure purposes — Technical delivery conditions – Non-alloy and alloy steel tubes with specified elevated temperature properties
	BS EN 10216 Seamless steel tubes for pressure purposes — Technical delivery conditions
	Part2: Non-alloy and alloy steel tubes with specified elevated temperature properties
Steel Grades	P195GH, P235GH, P265GH, 16Mo3, 13CrMo4-5, 10CrMo9-10, 25CrMo4, X10CrMoVNb9-1
O.D	10.2mm-720mm
W.T	1.6mm-100mm
Packing	According to your request.
Delievery	By sea container

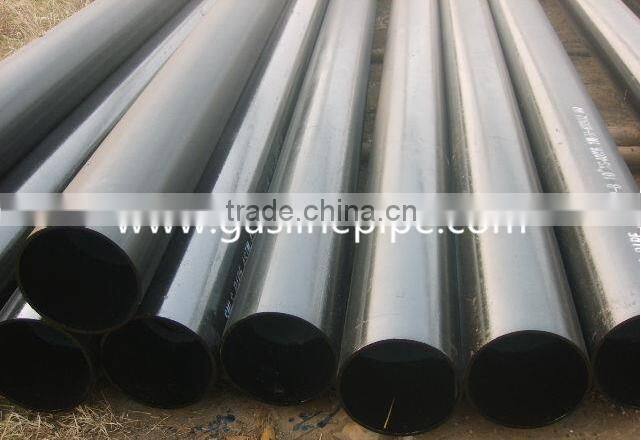

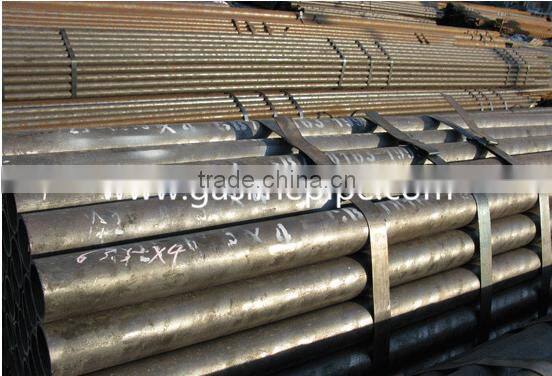

Product Pictures
