Mini Access Control Keypad OCS-K8

1. Features

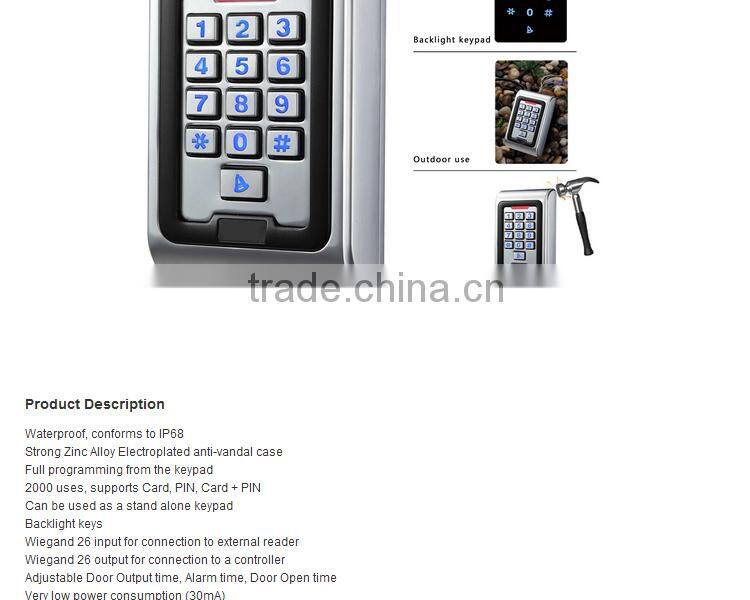

· Waterproof IP68, Can connect external reader

· 2000 uses, supports Card, PIN, Card + PIN

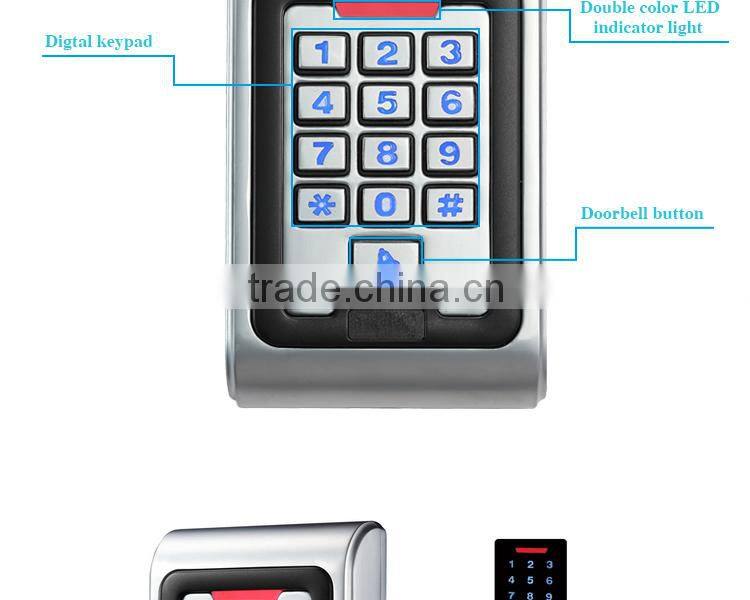

· Can be used as a standalone keypad, Backlight keys

· WG26 output for connecting to a controller, input for connecting with a reader

· Adjustable Door Output time, Alarm time, Door Open time

· low power (30mA) ,Fast operating speed, <20ms with 2000 users

· Lock output current short circuit protection

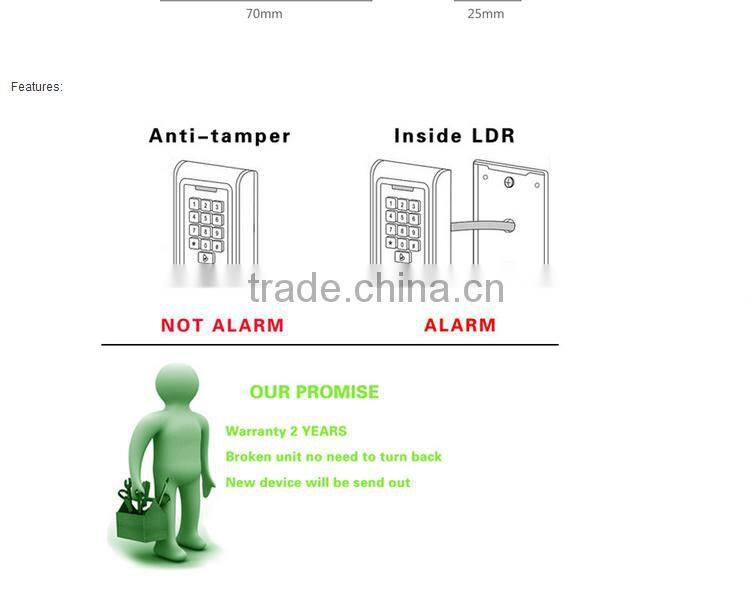

· Built in light dependent resistor (LDR) for anti tamper, Built in buzzer

· Red, Yellow and Green LEDS display the working status

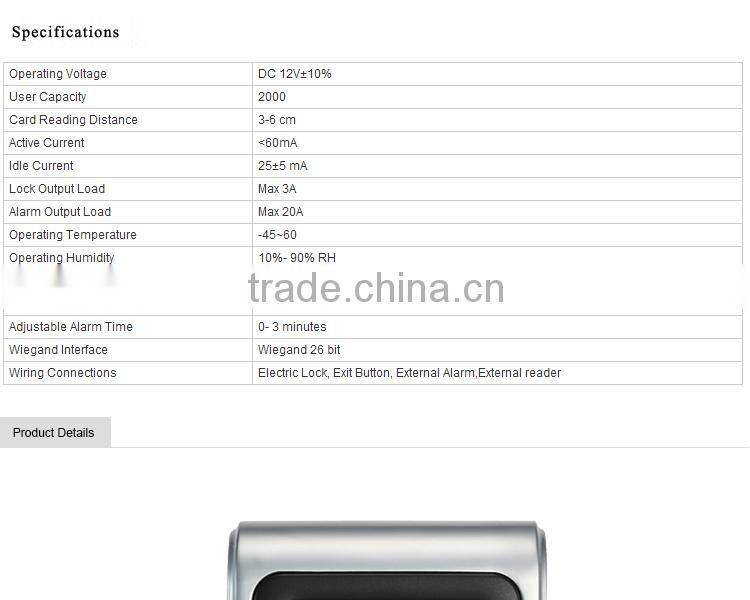

2. Specifications

Operating Voltage DC 12V±10%

User Capacity:2000

Card Type:EM, MF

Card Reading Distance:3-6 cm

Active Current:<60mA

Idle Current:25±5mA

Lock Output Load:Max3A

Alarm Output Load:Max20A

Operating Temperature:-45~60°C

Operating Humidity:10%- 90% RH

Environment:Conforms to IP68

Adjustable Door Relay time:0 -99 seconds

Adjustable Alarm Time:0- 3 minutes

WiegandInterface:Wiegand 26 bits

Wiring Connections:Electric Lock, Exit Button,External Alarm & Reader

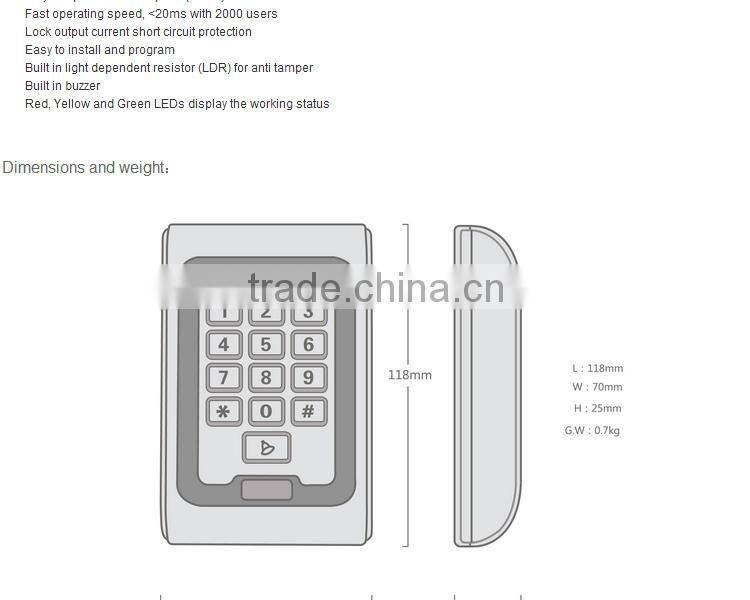

Dimensions:L118 x W78x H25 mm
