Home > Consumer Electronics > Audio & Sets > Professional Audio > pa Audio Speaker Systems

pa Audio Speaker Systems

Name: pa Audio Speaker Systems
Brand: ZSOUND
SKU: 128577797
Availability: InStock

US$ 1 - 5,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ZSOUND

Model Number:

U12

Contact Supplier Request Quote Chat Now

Guangzhou ZSOUND Proaudio Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ZSOUND

Model Number U12

pa audio speaker systems

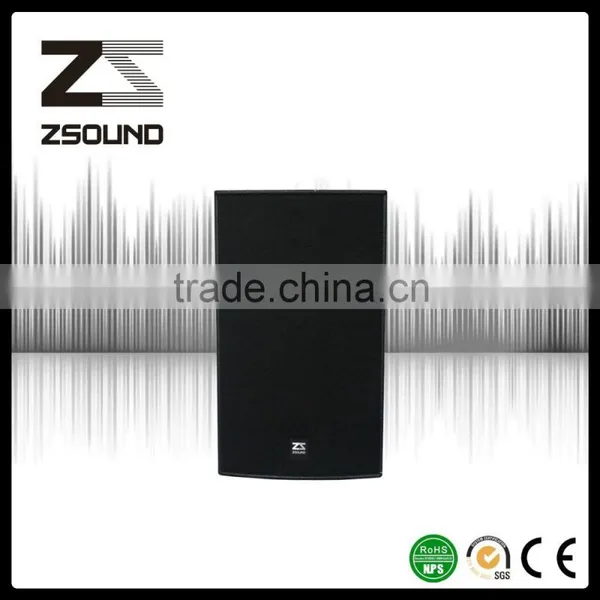

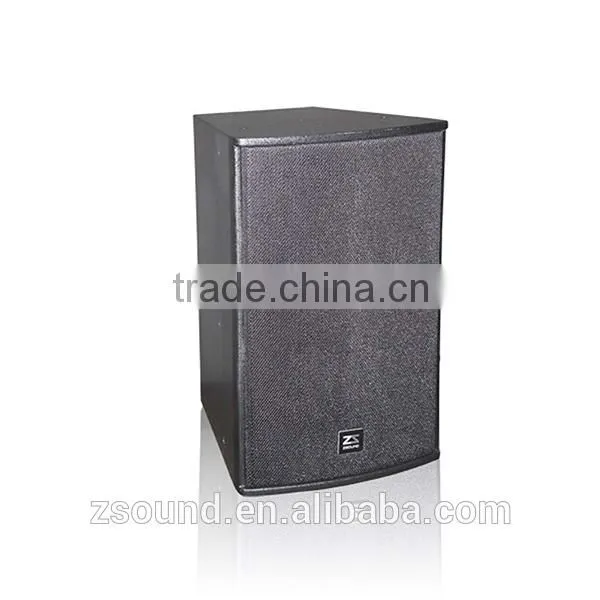

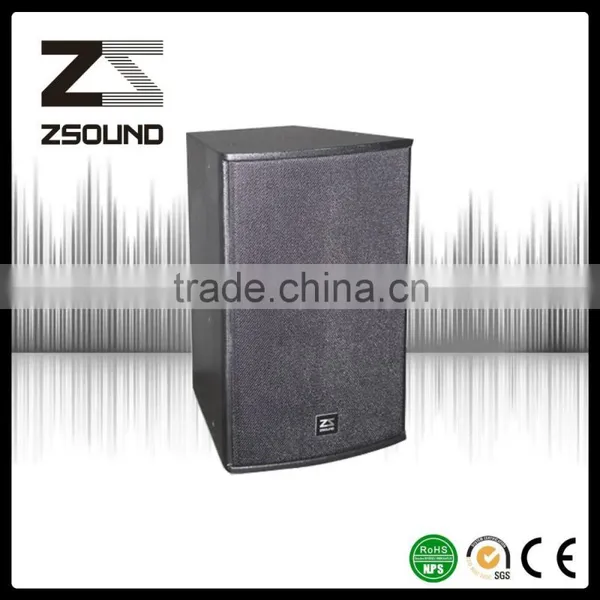

ZSOUND U12 is a medium scale two-way passive system, utilizing the latest Phase control technology,the enclosure features a 12" LF driver

and a 1.75"(44mm voice coil) HF compression driver mounted on a constant directivity horn, with the Phase correction technology to eliminate distortion

between LF units and keep smooth frequency and Phase response.

Feature:

Elastic bass

Long stroke rubber edge LF driver

Rotatable 80*50° directivity horn

Applications:

Bar

KTV

Near-field sound

TECHNICAL SPECIFICATION
FREQUENCY RESPONSE:	55Hz-18KHz(±3dB) 40Hz-20KHz(-10dB)
NOMINAL COVERAGE(-6dB):	80° (H) 50° (V) Constant directivity
SENSITIVITY (@1w/1m):	96dB SPL
POWER RATING(AES):	400W(Continuous) 1600W(speak) 800w(Recommended amplifier power)
NOMINAL IMPEDANCE:	8 Ohm
MAXIMUM SPL:	122dB (continuous) 128dB(Peak)
DRIVERS:	LF 1 x 12”woofer(75mm voice coil) rubber edge woofer HF 1×1.75" (44mm voice coil) compression driver

PHYSICAL DATA
DIMENSIONS (H x W x D):	602 x 359 x 363mm
WEIGHT:	22kg
CONNECTORS:	2 x NL4MP Neutrik connectors
SPEAKER CABLES:	1+1-
MATERIALS:	18mm multiply-plywood
FINISH:	Black water paint
GRILLE:	Black epoxy mesh grille acoustically reticulated foam
