PRO sound audio systems

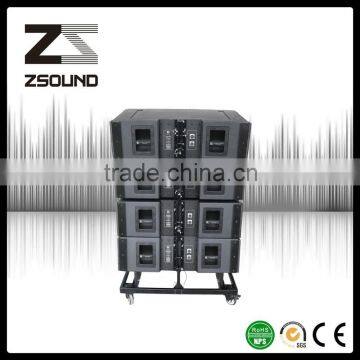

VCL line array is a dual 12" trip-amped three points suspension system. It can be presettable angle in the air when working with palm hoister
under hanging. And this speaker uses neodymium drivers. Light weight, MF&HF parts are coaxial structure to optimize image. Rubber edge LF driver,
lower limit & thicker vocal. Its more convenient to transport and hang with the application of six handle cups and neodymium pin.
The speaker is finished with poly gland paint, more resistant to climate. Mounting wear-resisting Nylon bar.
The mid and low frequency adpots a couple of 12" rubber edge woofer, ech unit's power handling is 450W and two units connect in series.
One high sentivity 10" MF driver is mounted at the rear of the HF driver to make up a coaxial configuration. One MF phase plug is mounted on the
surface of the MF driver, which has excellently improved the directivity and increased sensitivity. The HF part utilizes 2x75mm (voice coil) neodymium
drivers, they're coupled with 90° constant directivity horn via plane-wave transducer to make coherent wave front. The 113dB HF enables the loudspeaker
provide 141dB peak SPL output.
VCL is a trapezoidal speaker with the seamless gap between each cabinet. The adjustable angle of the cabinet is 0-7.5°,1° per step,VCL rigging harware is made of
high strength steel. It is safe enough to hand 16 enclosures together, as the safety factor reaches up to 7:1. The enclosure is constructed by multi-plywood,with panel size
18mm,and other panel size is 15mm. It is finished in black textured waterproof paint. 4 recessed handle cups are mounted on both sides of the enclosure for easy lifting
and carrying. A rear panel connector plate carries 2 Neutrik Speakon NL4MP connectors for loopp in and loop out connections to additional enclosure.
Applications:
Touring performance
Stadium
Theatre
Feature:
Large-scale,thri-amp,three-way line array system
Presettable angles
Neodymium high-sentivity driver, maximum headroom
rubber edge LF driver, extend low frequency
| TECHNICAL SPECIFICATION | |
| Frequency Response: | 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| Nominal Coverage: | 90°(H)7.5°(V) |
| Sensitivity (@1w/1m): | HF:113dB SPL MF:105 dB SPL LF:99 dB SPL |
| Power Rating (AES): | HF/MF/LF:160W/350W/900W |
| Nominal Impedance: | HF/MF/LF:16/16/16Ohm |
| Maximum SPL: | HF135/141 dB MF:130/136 LF;128/134 dB |
| Drivers: |
LF 2*12"(75mm Voice coil)neodymium woofer; MF 1*10”(65mm voice coil)neodymium mid-range; LF 2*3” neodymium compression driver |
| PHYSICAL DATA | |
| Dimension (H*W*D): | 374*1030*565mm |
| Weights: | 60kg |
| Connectors: | 2*WP7 connectors |
| Speaker Cables: | 1-2+…LF 3-4+…MF 5-6+…HF |
| Materials: | 18mm,24mm birch multi-plywood |
| Finish: | Black water paint |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,7.5 degree adjustable |
