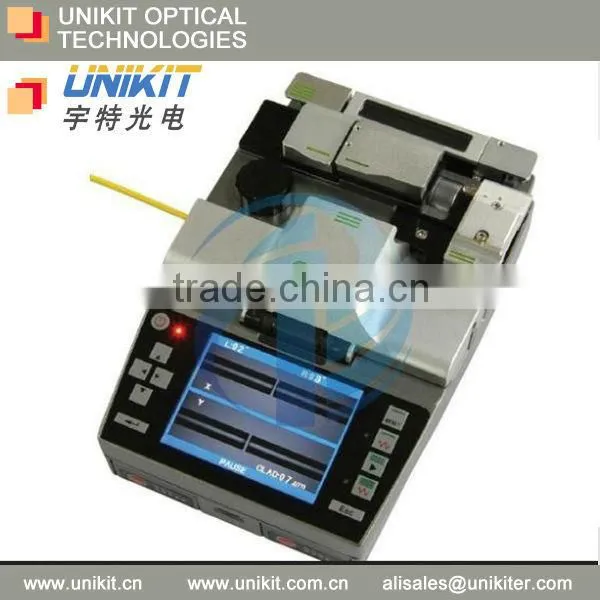

Optical Fiber Splicing Machine
US$ 4,400 - 5,200
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
South Korea
Brand Name:
ILSINTECH
Model Number:
Optical Fiber Splicing Machine-swift f1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
South Korea
Brand Name
ILSINTECH
Model Number
Optical Fiber Splicing Machine-swift f1
Specifications
1. Optical Fiber Splicing Machine2. RoHS, ISO9001:2008
Optical Fiber Splicing Machine
Operation Video:
/watch?v=EmUgU2Vaquc
| Splicing | |
|---|---|
| Alignment | Fixed V-Groove (Clad to Clad) |
| Applicable Fibers | SM, MM, DS, NZDS |
| Cladding Diameter | 125 µm |
| Coating Diameter | 250 µm – 900 µm |
| Fiber Cleave Length | 26 – 40 mm |
| Typical Average Splice Loss | SM: 0.03 dB, MM: 0.02 dB, DS: 0.06 dB, NZDS: 0.06 dB |
| Splicing and heating time (typical) | 7 sec - fusion splicing, 20 sec for sleeves heating (fiber 0.9 mm), 70 sec (fiber 3.0 mm) |
| Protection Sleeves | 30 mm (for fiber0.9 mm), 40 mm (in-plant cable 2.0, 3.0 mm) |
| Internal Memory | up to 2000 results |
| Thermal Stripper | |
| Fiber Parameters | fiber diameter 125 µm, coating diameter 250 µm and 900 µm |
| Fiber Cleave Length | up to 28 mm |
| Heating Time | 1 – 15 sec |
| Heating temperature range | from +60 to +150°C |
| Stripping Effort | 4 kgs |
| Fiber Optic Cleaver | |
| Fiber parameters | fiber diameter 125 µm, coating diameter 250 µm and 900 µm |
| Cleave Length | 7.5 mm |
| Blade lifetime | 48 000 |
| Tube Heater | |
| Applicable Cable Diameter | for fiber: 250 µm and 900 µm, for in-plant cable: 2.0 mm – 3.0 mm |
| Sleeves Length | 32 mm (standard) |
| Heating Time | 20 – 35 sec |
| Heating temperature range | from +130 to +200°C |
| General Characteristics | |
| Tension test | 1.96 N |
| Operation Conditions | from –10 to +50°C, at RH up to 95% |
| Storage Conditions | from –40 to +80°C, at RH up to 95% |
| Interface | USB, RCA, ext. power |
| Power Supply | lithium-polymer battery / power adapter ~100-240 V |
| Battery | 1400 mA/h, 2 pcs. |
| Battery splice/heat cycles | 120 cycles (for 0.9 mm fiber) |
| Dimensions & Weight | |
| W | 135 mm |
| D | 200 mm |
| H | 82 mm |
| Weight | 1.5 kg (with battery) |
Ilsintech Swift F1 Fusion Splicer Package Contents
- Fusion Splicer (1 pc.)
- AC Adaptor (1 pc.)
- Battery Charger (1 pc.)
- Battery Pack (2 pc.)
- Fibre Holder (1 set)
- Spare Electrodes (2 pc.)
- Cooling Tray (1 pc.)
- Carrying Case (1 pc.)
- Manual / CD (1 pc.)
