Fiber Optic Mechanical Splice

Specifications

1 Fiber Optic Mechanical Splice

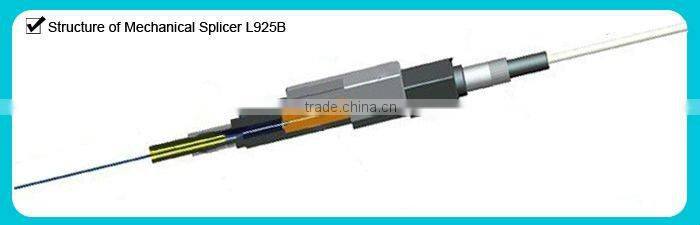

Fiber Optic Mechanical Splice

Product Performance:



Operation video:

/watch?v=eYukoou7irA



/watch?v=EmUgU2Vaquc



Technical specification



Item	Parameter
Applicable for	3.1 x 2.0 mm dropcable
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm & 900μm
Applicable mode	single & multimode
Operation time	about 30s (without fiber cut)
Insert loss	≤ 0.25dB(1310nm & 1550nm)
Return loss	≤ -45dB
Success rate	>98%
Reusability times	>10times
Fastening strength of naked fiber	>5 N
Clamping force of fiber with tight buffer	>8 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength)	IL ≤ 0.2dB
Mechanical durability (500 times)	IL ≤ 0.2dB
Drop off test ( 4 meters high, cement floor, three directions)	IL ≤ 0.2dB







1



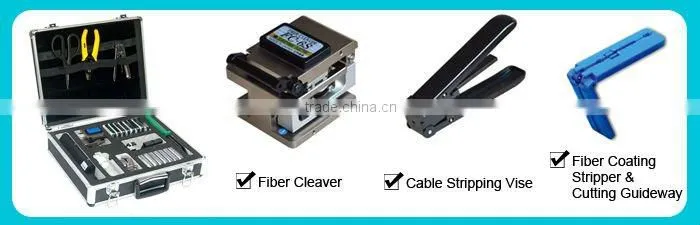

3  A practical design with simple tools and easy operation in 150 seconds.





4  With reusable operation, Unikit Product is adopted by the three telecoms operators in China(China Mobile, China Telecom, China Unicom) and leading ahead in domestic market. In the first half of 2001, the sales of fiber optic connector and mechanical splicer has reached 4 million sets.

5  Product Technical Parameters:

Insert loss  <0.1dB

Return loss >40dB

V groove clamping force variety  <0.2dB(Insert loss variety)

4M height dropping test (3 times)   <0.2dB(Insert loss variety)

temperature cycle test    <0.2dB(Insert loss variety)

High temperature test    <0.2dB(3000 hours 85°C)(Insert loss variety)

Low temperature test    <0.2dB(3000 hours --40°C)

Wet and hot test   <0.2dB(120 hours -40°C~85°C)

Vibration test, 10-55Hz in three direction, three hours in each direction <0.2dB(3000 hours 85%RH 85°C)

Marinated test  <0.2dB(10-55Hz in three direction)

Wet and hot test   <0.2dB(3000 43°C PH=5.5±0.5)

6 Company Perforance:

7 Unikit participated several important exhibitions worldwide.

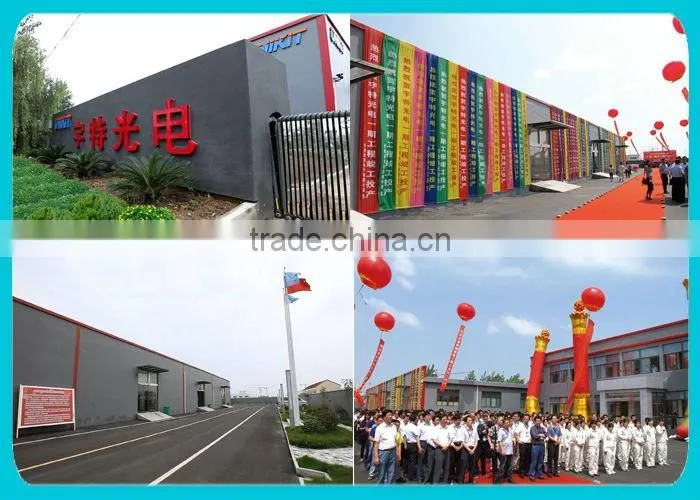

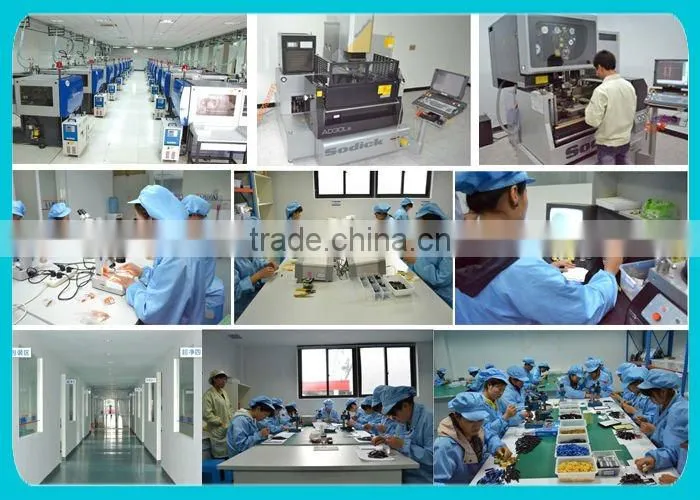

8 Unikit Production Workshop:

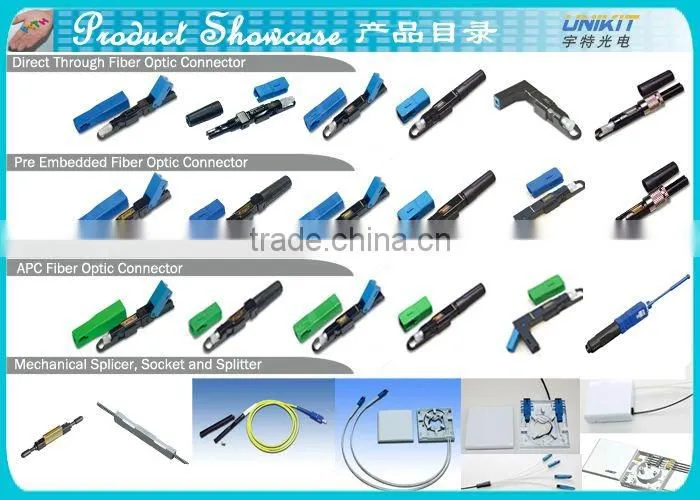

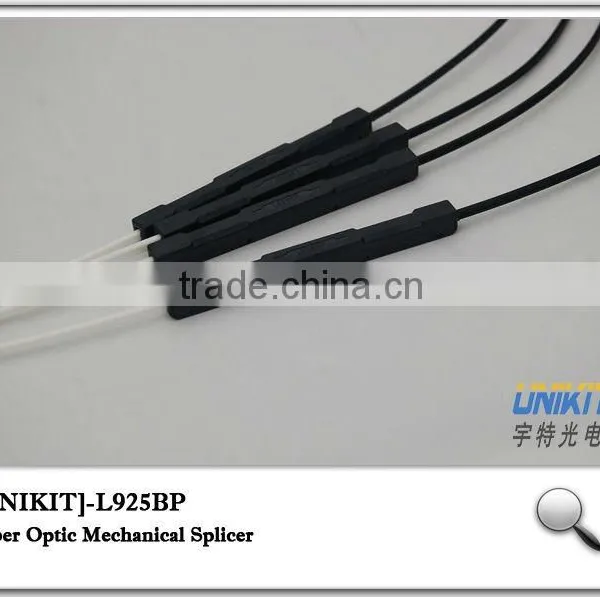

9 Product Showcase:

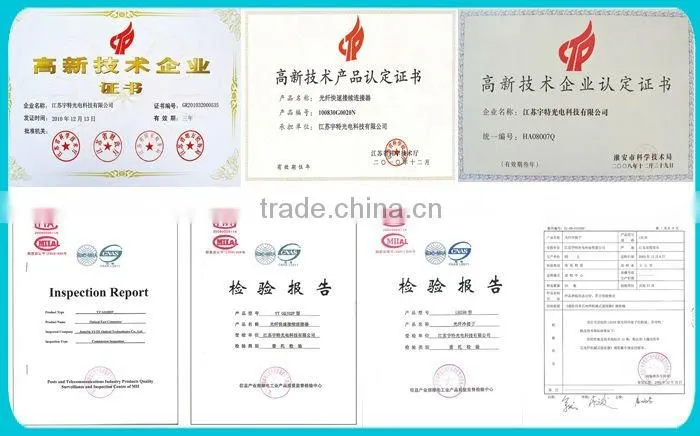

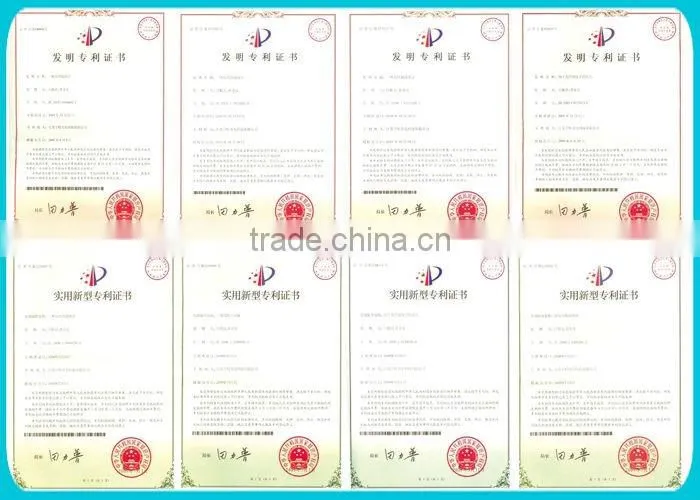

10 Certificate of High-Tech Enterprise, Quality Management System Certificate, Certificate of TLC Test, National and International Patents of Invention and Patents of Ultility Model:
