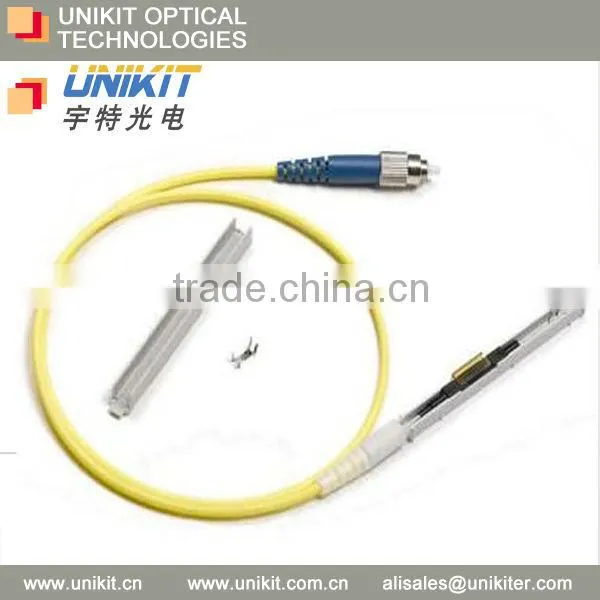

Pigtail Connector
US$ 0.9 - 1.5
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Unikit
Model Number:
pigtail connector
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
Unikit
Model Number
pigtail connector
Specifications
1. pigtail connector2. ISO 9001:2008, RoHs, TLC, own patents
pigtail connector
Operation Vedio:
/watch?v=eYukoou7irA
/watch?v=EmUgU2Vaquc
Technical specification
Item |
Parameter |
|
Cable Scope |
3.0 x 2.0 mm Bow-type Drop Cable Telecom Cable |
|
Fiber Diameter |
125μm ( 652 & 657 ) |
|
Coating Diameter |
250μm |
|
Mode |
SM/MM |
|
Operation Time |
about 15s(exclude fiber presetting) |
|
Insertion Loss |
≤ 0.30dB(1310nm & 1550nm) |
|
Return Loss |
≤ -40dB |
|
Success Rate |
>98% |
|
Reusable Times |
>100 times |
|
Tighten Strength of Naked Fiber |
>5 N |
|
Tensile Strength |
>50 N |
|
Temperature |
-40~+85°C |
|
On-line Tensile Strength Test (20 N) |
IL ≤ 0.3dB |
|
Mechanical Durability(500 times) |
IL ≤ 0.3dB |
|
Drop Test(4m concrete floor, once each direction, three times total) |
IL ≤ 0.3dB |
|
