dj stage subwoofer equipment

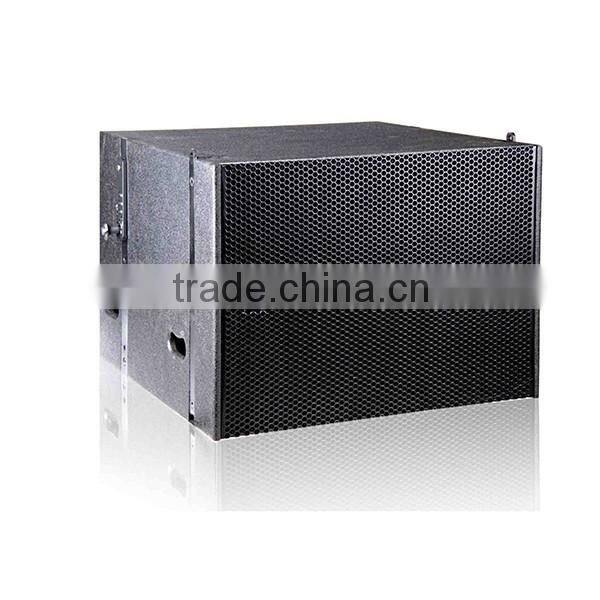

LA108S subwoofer is a one way system, which provides 40Hz-200Hz,30Hz-320Hz frequency response, with flat frequency and phase response.
one 15” low-frequency driver to generate ultrahigh headroom,effectively decrease the weight of the enclosure,
and obviously improve the ratio of SPL and Volume.
Feature:
Theatre and multi-function hall
Church
Applications:
75mm voice coil high transient response woofer
Thick and elastic hearing
Neutrik NL4MP socket
| TECHNICAL SPECIFICATION | |
| Frequency Response: | 40Hz-200Hz(±3dB) 30Hz-320Hz(-10dB) |
| Nominal Coverage: | Omnidirectional |
| Sensitivity(@1w/1m): | 98dB SPL |
| Power Rating (AES): | 500W |
| Nominal impedance: | 8 Ohm |
| Maximium SPL: | 125dB(continuous)131(peak) |
| Drivers: | 1x15" (75mm voice coil) woofer |
| PHYSICAL DATA | |
| Dimension(H*W*D): | 455*563*650mm |
| Weight: | 25kg |
| Connectors: | 2*NL4MP Neutrik Speakon connectors |
| Speaker cables: | 1+1- |
| Materials: | 15mm, 18mm brich multi-plywood |
| FINISH: | Black water paint |
| GRILLE: | Black epoxy mesh grille with acoustically reticulated foam |
| RIGGING | 0 degree |
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
