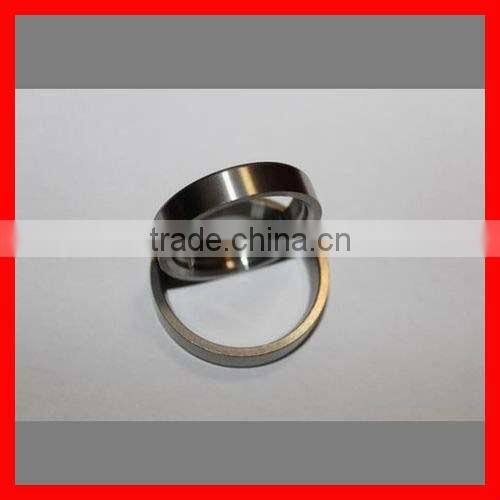

Help CenterEngine Valve Seat For Cummins
Related Products
Valve Seat Ring
1. Engine parts valve seat ring is used for different egines, Automobiles, Marines, Air compressors, Engineering machines engine...etc.
Engine Type: 6BT, 6CT, NH220, 6BT145, 6BTA, 6BTAA, 6CT8.3, 6CTA, 6CT-300, NH250, NT855, NH250A, K19, V265, V300, V6E-195, VT6-280 etc .
2. Wide range size for different bran engine. Cummins, Hino, Mitsubishi, Yamaha, Benz, Deutz, Komatsu, Caterpillar, Perkins, Volvo, Kia, Fiat, Chrysler, Ford, Chevrolet, Dodge, Buick, Lada, Audi, Peugeot...etc.
| Series No. | Outer Diameter mm | Inner Diameter 1 mm | Inner Diameter 2 mm | Height mm |
| 1 | 47 | 44 | 40 | 7.5 |
| 2 | 40 | 36.5 | 33 | 7.5 |
| 3 | 45 | 42.5 | 38.8 | 7.8 |
| 4 | 38 | 35.25 | 31 | 7.8 |
5 |
74.651 | 63.5 | 14.3 | |
| 6 | 47.702 | 38.1 | 9.5 | |
| 7 | 55.55 | 44.45 | 11.1 | |
| 8 | 40.6 | 36.6 | 34.8 | 7.8 |
| 9 | 39 | 35.5 | 33 | 7.8 |
| 10 | 33.5 | 29.4 | 27.6 | 7.3 |
| 11 | 34 | 31 | 28.5 | 6 |
| 12 | 35.2 | 33.4 | 30 | 6 |
| 13 | 30 | 27 | 25.5 | 6.7 |
| 14 | 29 | 24.8 | 23.5 | 6.5 |
| 15 | 32 | 28.5 | 27 | 5.5 |
| 16 | 31 | 27.5 | 25 | 5.5 |
| 17 | 37.5 | 37.1 | 32 | 6 |
| 18 | 32 | 31.7 | 26 | 6 |
| 19 | 32.6 | 27.5 | 5.6 | |
| 20 | 28.7 | 23.5 | 5.6 | |
| 21 | 40.1 | 34 | 6 | |
| 22 | 34.1 | 28.7 | 27 | 6 |
| 23 | 35 | 29 | 28 | 7.7 |
| 24 | 40 | 34 | 31 | 8.05 |
| 25 | 45 | 43.5 | 38.5 | 7.3 |
| 26 | 34.6 | 31.6 | 30 | 4.5 |
| 27 | 30 | 26.7 | 24.5 | 5.5 |
| 28 | 32 | 30.22 | 27 | 5.5 |
| 29 | 27 | 25 | 22 | 5.5 |
| 30 | 53 | 51.2 | 46.2 | 9 |
| 31 | 41 | 39.5 | 34.5 | 8 |
| 32 | 34 | 31.1 | 28 | 7 |
| 33 | 31 | 26.4 | 24 | 7 |
| 34 | 38 | 34.51 | 29 | 6 |
| 35 | 31 | 28.32 | 24.5 | 8 |
Advantage:
1. Powder Metallurgy quality casting.
2. Precision machining provided.
3. Over 15years experiences in OEM parts.
4. Competitive price . (All casting & machining work finished by us.)
5. Provide 2years/60,00kms warranty.
Anything new development are welcomed to be provided according to the drawings or samples.
