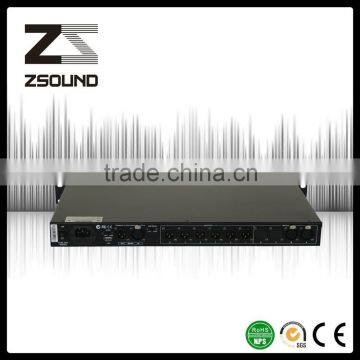

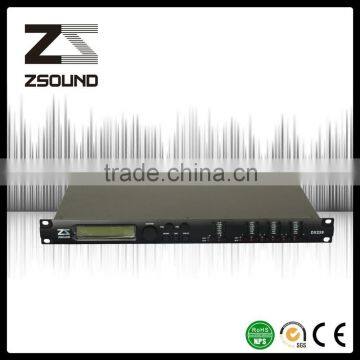

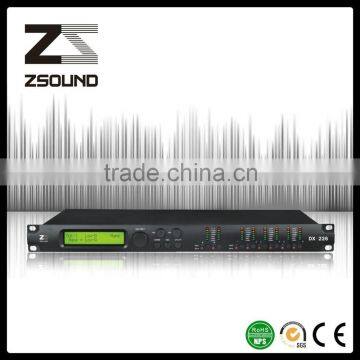

Professional Digital processor DX226 ZSOUND
Proaudio, Loudspeaker, speaker, line array speaker, PA speaker, outdoor speaker, subwoofer, small speaker, active speaker, self-power speaker, powered speaker, amplifier, professional amplfier, Disco speaker, chuch speaker, switching power amplifier, transformer amplifier, mainly designed for live performance, stadium, outdoor use, fixed installation.
Built-in crossover, equalizer, limiter, and phase control function, USB, RS485 data interface.
| Input/output | |
| Input impedance | >10KΩ |
| Output impedance | 50Ω |
| Max.SPL | +20dBu |
| Analog Audio | |
| Frequency response | +/-0.5dB (20Hz to 20kHz) |
| SNR | 110dB typical (unweighted) |
| CMRR | >40dB (20Hz to 10KHz) |
| Crosstalk | <-100dB |
| Distortion | 0.001% (1KHZ@0dBu) |
| Analog Audio | |
| DSP | 32 bits(Extendable FPU to 40 bits) |
| Sampling rate | 96KHz |
| ADC/DC | 24bits high-resolution chip |
| Transmission | 2ms |
| General Specification | |
| Power | 90-265VAC(50/60Hz) |
| Dimension | 19"*1.75"*9"(483*44*229mm) |
| Weight | 101bs/4.6kg |
| Adjustable Parameters | |
| Master gain | -12 to 12dB, 0.1dB stepping |
| Channel gain | -12 to 0dB, 0.1dB stepping |
| Delay | parameter |
| EQ types | Oaraneter,HP,LP,shelv, Fullpass. Bamd pass, trapper |
| EQ gain | -15 to +15dB 0.5DdB steping |
| EQ bandwidth | 0.009 to 4.8 octaves (Q=0.3 to 20) |
| Rms Limiter | |
| Threshold value | -10 to 20dBu |
| Compression ratio | 1:1 to 32:1 |
| Starting time | 5 to 200ms |
| Release time | 0.1s to 3s |
| Peak Limiter | |
| Threshold value | -10 to 20dBu |
| Starting time | 5 to 200ms |
| Release time | 0.1s to 3s |
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
