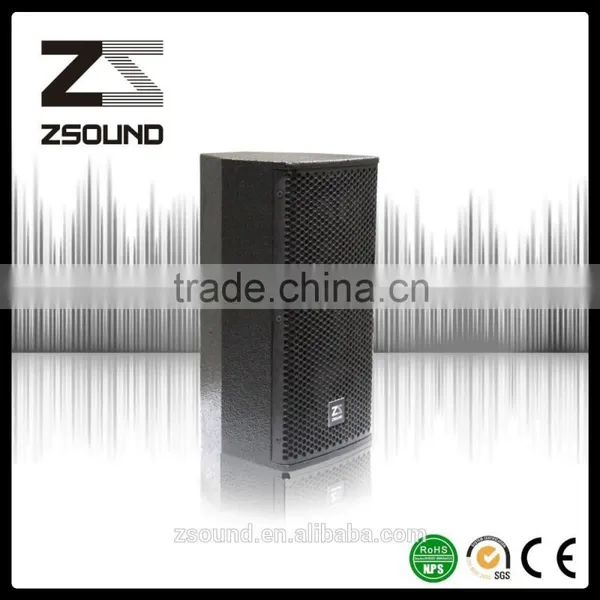

C8 professional 8 inch speaker DJ guangzhou
C8 is a medium scale two-way passive system, utilizing the latest Phase control technology, with bandwidth ranges from 90Hz to 20KHz. The frequency response will extend to 50Hz when work on -10dB.
The enclosure features 8” LF drive and a 36mm (diaphragm) HF compression driver mounted on a constant directivity horn, with the Phase correction technology to eliminate distortion between LF units and keep smooth frequency and Phase response.
The loudspeaker is designed to comprise 80 °X80 °constant directivity coverage. The enclosure shall be of a multi-laminated birch by construction with the standoff holes and for multiple lift points.
Clear voice can be applied to the Church, Kara OK and such as speech sound reinforcement.
Feature:
1.36mm HF compression driver
2.The frequency response will extend to 50Hz
3.Excellent vocal performance
Applications:
Church
Fill system
Conference room
| TECHNICAL SPECIFICATION | |
| FREQUENCY RESPONSE: | 90Hz-18KHz(±3dB) 50Hz-20KHz(-10dB) |
| NOMINAL COVERAGE(-6dB): | 80°(H)80°(V)Constant directivity |
| SENSITIVITY (@1w/1m): | 93dB SPL 90-20k Hz |
| POWER RATING(AES): | 250W(continuous) 1000W(peak) 500W(recommended) |
| NOMINAL IMPEDANCE: | 8 Ohm |
| MAXIMUM SPL: | 117dB (continuous)123dB(peak) |
| DRIVERS: |
LF 1x 8” driver HF 1 x 36mm diaphragm compression driver |
| PHYSICAL DATA | |
| DIMENSIONS (H x W x D): | 473 x 228 x 256.7mm |
| WEIGHT: | 9.8kg |
| CONNECTORS: | 2 Neutrik NL4MP connectors |
| SPEAKER CABLES: | 1+1- |
| MATERIALS: | 15mm, 18mm multi-plywood |
| FINISH: | Black epoxy mesh grille with acoustically |
| GRILLE: | Reticulated foam |
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.
