best quality warehouse shelf Shelving system metal shelving raw material storage rack
Reason 1: Good services, free design
Reason 2: High quality Q235 cold rolled steel, smooth surface without burrs, plastic powders never fade
Reason 3: Double layer design to enhance shelf load capacity
Reason 4: Environment-friendly plastic powder, no poison, no pollution
Reason 5: Butterfly holes design,beam plugged in , easy to install.
Reason 6: Foot protection increased surface friction, more stable.
Quick Detail:
1. Cold rolled steel
2. Finish: galvanized with spray paint
3. Anti-rust , Corrosion-protection
4. Available for hand works or with ladder helpfulness
5. Easy to assemble or dispatch
6. 3 years warranty
Description:

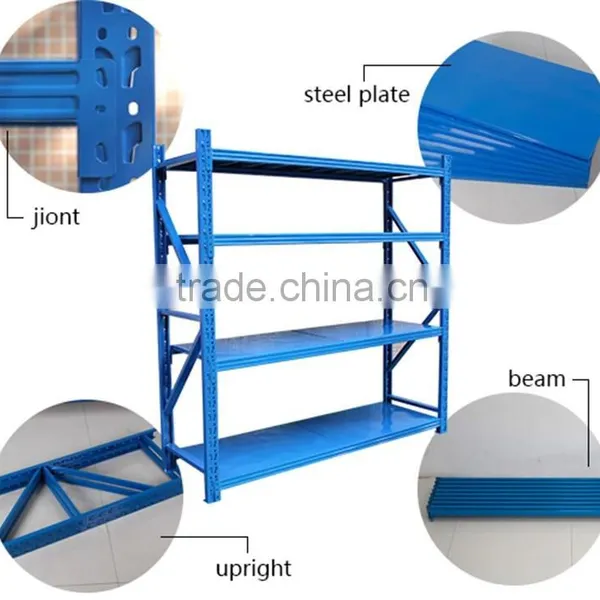

Medium duty shelf rack, comes with upright set, beam, steel plate or wood plate, loading capacity from 150kg to 600kg per layer, maximum height 4m normally, handwork as common option or with ladder works;
It is good to warehouse storage system used. Special work for carton in different size, loose products, not heavy and flexible to take or stock.
Applications:
Factory
Stores
Supermarket
Logistic cental
Industrial storage system
Warehouse storage system
Specifications:
Model |
medium duty storage rack |
Minimum Qty |
10 set |
Price term |
EXW, FOB, CIF |
Loading capacity |
150KG-600KG per layer |
Height |
1000-3000mm or customized |
Length |
1000-2500MM or customized |
Depth |
600-1200MM, customized |
Color |
Blue/Grey, customized |
Parts |
Upright, Beam, Steel plate or wood board |
Layer |
customized |
Competitive Advantage:
Carton or loose cargo can be located, stock or move-out individually
Installation is easy and flexible
The distance of each layer is adjustable
Technical details:
All of the shelf components are made of Wisco steel and raw materials processed by cold rolling of profiles, the strength index is as follows
Racking strength indexes of cold rolled profiles(N/mm2)
steel number |
Steel types |
Tensile, compressive bending |
The shear |
Face pressure |
Q235 |
Cold bend section steel |
205 |
120 |
310 |
Racking strength of welds(N/mm2)
Steel material |
The welding seam |
Fillet welding seam |
|||
steel number |
Steel types |
Tensile |
compressive |
bending |
Tensile, compressive |
Q235 |
Cold bend section steel |
205 |
175 |
120 |
140 |
manufacturing process
Raw materials(Wisco)→Cold rolling→Fixed length→Punching(Welding)→Rectify→Surface powder coating→Packing→Finished product
Surface treatment:
The process flow:Raw material→Unoil→Rust removal→Pre-dips→Phosphating→Drying→Powder coating→Curing→Packing
1. Shelf surface treatment using electrostatic spray process of epoxy, powder coating 60~80 microns
2. Electrostatic powder spraying adhesion level 0 in GB92865-88 standard requirement.
3. Hardness(abrasion resistance) as 100 times more than ordinary lacquer, achieve GB6739 the 2 h - 86 standard requirements, namely the 2 h pencil test without scratches.
4.Corrosion resistance (hydroelectric acid) GB1771-91 more than 500 hours.
Accurate color configuration and material requirements:
1. Column: Color RAL5010——Blue;Material Q235,Wisco.
2. Beam:Color RAL2004——Orange;Material Q235,Wisco.
Guangzhou Kimsuk Shelves Co., Ltd., located in Guangzhou City of Southern China, is a professional company specializing in designing, manufacturing, selling and installing all types of displays and storage shelves.
Standard Export Seaworthy Packing
Knockdown packing with plastic air bubble film package, save transportation cost, safe for long distance transportation.
Loading Port
Foshan Port of China: (or any Port of China)
