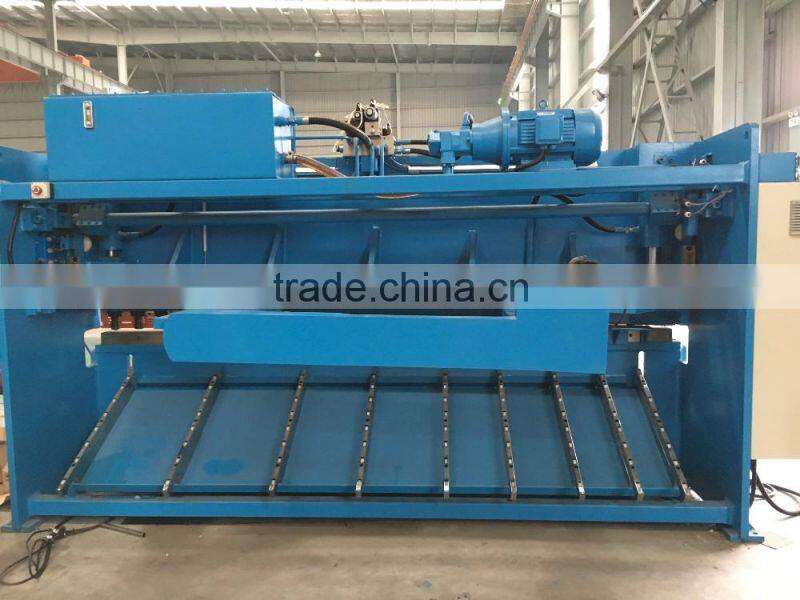

Guillotine Shearing Machine CNC Hydraulic Sheet Metal Cutting and Bending Machine
The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
Back gauge with precision ball screw and liner guide, to ensure the positioning precision, so that bring the higher precision processing.
Main Features
1. Front Operated Motorised Backgauge - Range 10 to 750mm;
2. Electro hydraulic variable rake angle adjustment 1° To 3° ;
3. Quick Blade gap adjustment by handle behind machine on both sides;
4. Individual pump and pressure setting for hydraulic holddowns;
5. Vickers double vane pump with individual pump for cutting and plate clamping;
6. Shadow line lighting and well design finger guard for clear view of cutting line;
7. Shear Blades - four sided, quality high-carbon high chrome blades D2 quality;
8. Manual inching mode for easy setting of Blades clearance;
9. Safety foot switch operation. Top blades will return to top position when foot is remove from foot pedal;
10. Hydraulic-full protection against overload through build-in safety valve;
11. 1 meter Side Squaring Arm with disappearing stops;
12. Ball screw and linde guide rail as optional for guarantee the higher precision;
13. Italy HT071 single axis controller as optional for customer choice.

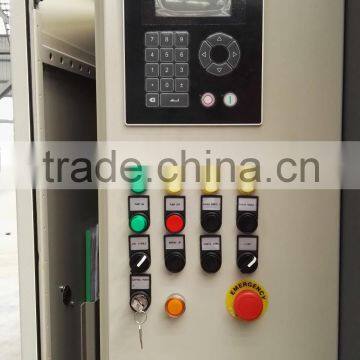

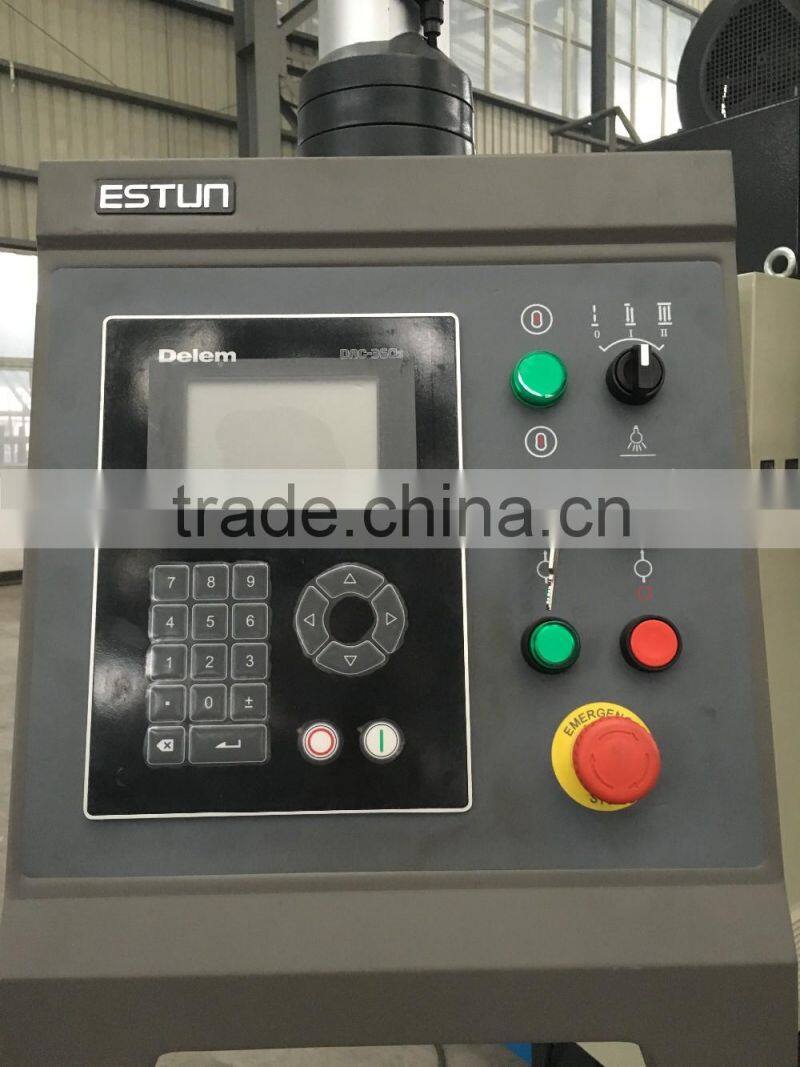

DAC 360 controller

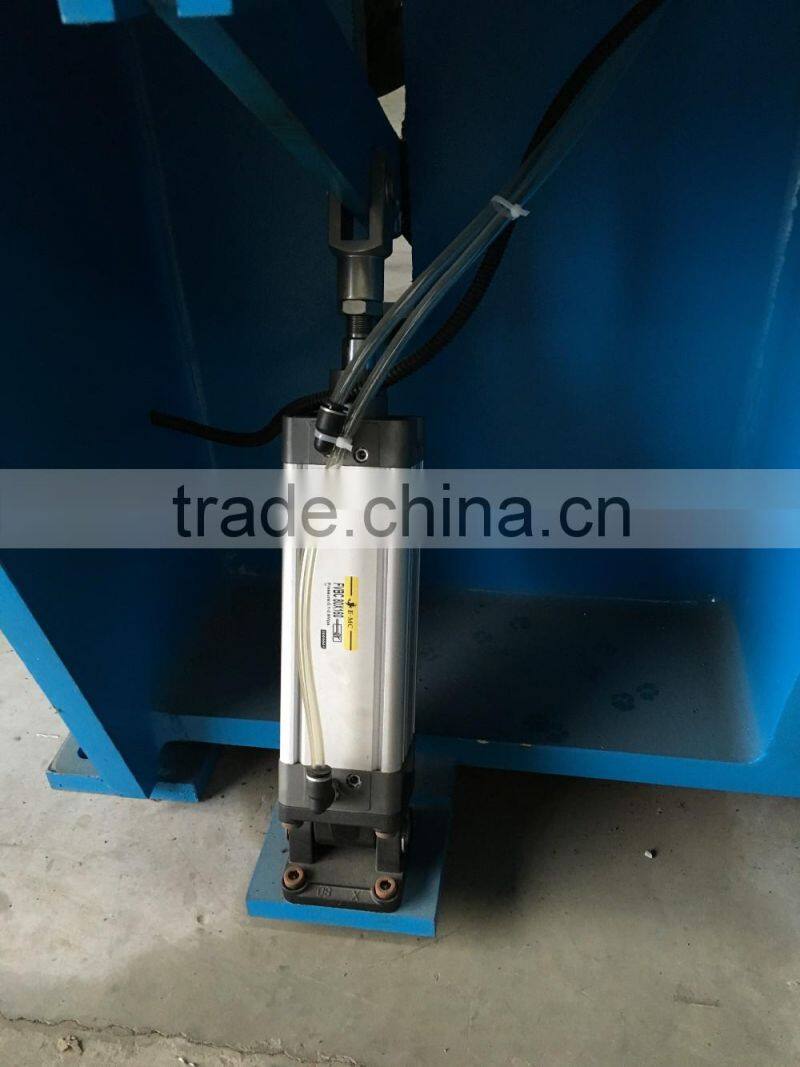

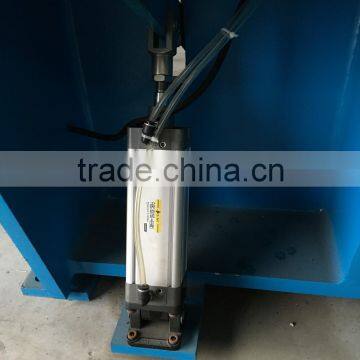

Pneumatic support
SUNNY Pump
24 hours telephone line is available for any question.
Experienced service technician team is available.
Support in hard work solution.

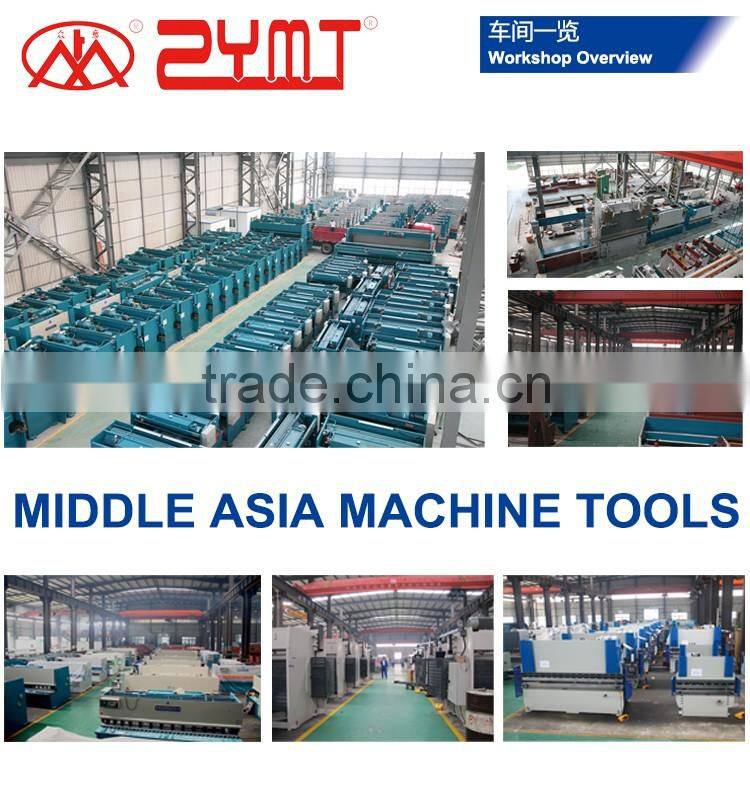

Maanshan Middle Asia Machine Tools Manufacture Co., Ltd, today is placed as a professional leading manufacturer and global supplier of sheet metal working machinery specialized in the production of all types of hydraulic press brakes (Sychronized/Conventional), hydraulic guillotine shearing machines & hydraulic swing beam shearing machines (CNC/NC).
ZYMT 's registered capital is around USD 860,000.00, occupy 100,000.00 square meters with a production workshop of 50,000.00 square meters, making it one of Chinese largest facility for professional sheet metal fabrication machinery. The total workforce at ZYMT is currently numbered at 450 employees and is composed of highly trained and qualified machine operators and assembly technicians supported by a staff of experienced engineers and designers.
All the ZYMT products are manufactured with the Chinese AAA level good standardization and accredited for the ISO 9001:2008 and CE Certification is optional. In the past years ZYMT has progressed to become a major exporter of sheet metal machineries to the world markets with customers located in all the machine tools consuming countries.
ZYMT is currently represented in over 60 countries and regions worldwide through appointed dealers.
Here,with a long and strong engineering experience behind, ZYMT wishes to present itself as a quality-conscious, professional machinery building company serving the industry.

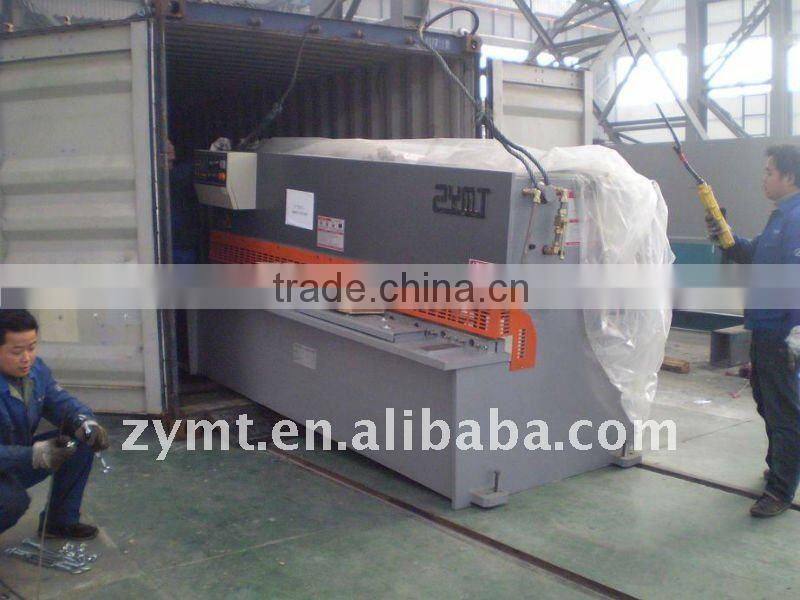

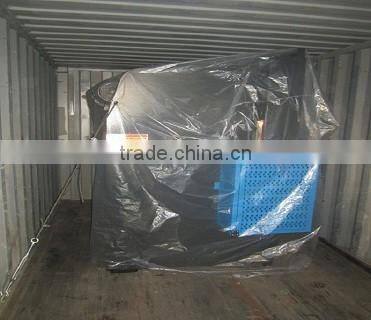

With more than 10 years exporting experience, we are so skilled for loading containers and packing the machines in container for safety. Each machine use min. 6mm dimeter steel rope to fix the four angles with the container, to avoid the machinery equipment move in the container.
Hydraulic press brake with E21 Controller
CNC hydraulic press brake bending machine

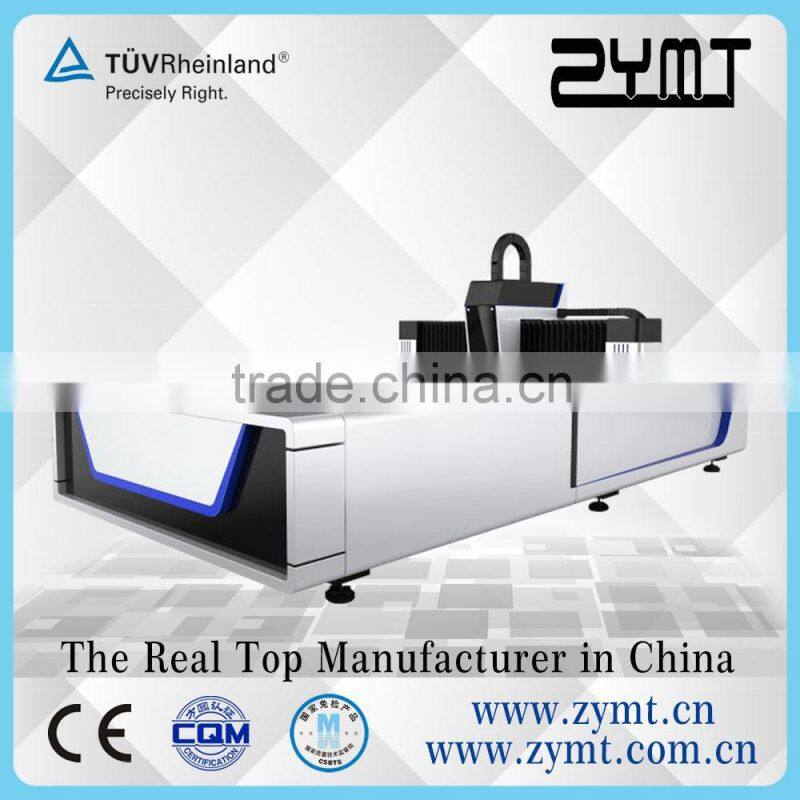

Fiber laser cutting machine
