Adjustable 100lm/w CRI>80 Samsung 38W super brightness led down light
Product Features of Adjustable 100lm/w CRI>80 Samsung 38W super brightness led down light
1. High Lumen Samsung LED, complete lighting >100lm/w, CRI>80.
2. Excellent Driver wide AC100V~240V, PF>0.90, low THD<15%.
3. Ultra-low light degradation in full compliance with U.S.Energy Star requirements, L70>35,000hrs.
4. Good thermal structure design, lifespan last longer than 35,000hrs.
5. Dimmable and emergency version available for choice.
6. 3 years warranty, CE, RoHS, SAA and C-Tick approved.
7. Direct replacement for Philips rectangular downlight HIT-DE MBS200,QBS200,SBS200.

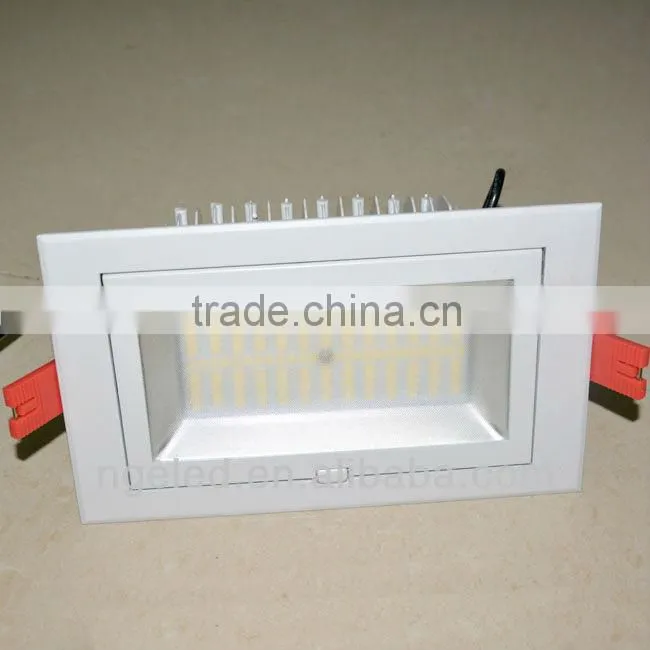

Product Pictures for Adjustable 100lm/w CRI>80 Samsung 38W super brightness led down light
Technical Parameters for Adjustable 100lm/w CRI>80 Samsung 38W super brightness led down light
| Product Name | super brightness led down light |
| Item Number | NGE-SMD01-RD38W |
| Rated Power | 38W |
| Input Voltage | AC100-240V, 50-60Hz |
| Power Factor | >0.90 |
| LED Type | Samsung SMD LED |
| Luminous Flux | 3700±100LM |
| Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
| CRI | Ra>80 |
| Beam Angle | 120° |
| Product Size | 240*145*135mm |
| Cutout | 227*130mm |
| Main Materials | Aluminum alloy and tempered glass |
| Working Temperature | -40~60°C |
| Lifetime | >35,000hours |
| Warranty | 3 years |
| Certificate | CE,RoHS,SAA,C-Tick |
Test Report for Adjustable 100lm/w CRI>80 Samsung 38W super brightness led down light
Production pictures for Adjustable 100lm/w CRI>80 Samsung 38W super brightness led down light
Packing information for Adjustable 100lm/w CRI>80 Samsung 38W super brightness led down light
Series Products for Adjustable 100lm/w CRI>80 Samsung 38W super brightness led down light
| Model No. | Specification | ||||||||
| Power | Input Voltage | Color Temperature | Luminous flux | Size | Cutout | Power Factor | LED Brand | CRI | |
| NGE-SMD01-RD20W | 20W | AC100~240V 50~60Hz | 3000k-3500k | 1950±100LM | 240*145*135mm | 227*130mm | >0.90 | Samsung SMD LED | >80 |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-RD28W | 28W | AC100~240V 50~60Hz | 3000k-3500k | 2750±100LM | 240*145*135mm | 227*130mm | >0.90 | ||
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-RD38W (Hot) | 38W | AC100~240V 50~60Hz | 3000k-3500k | 3700±100LM | 240*145*135mm | 227*130mm | >0.90 | ||
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-RD48W (Hot) | 48W | AC100~240V 50~60Hz | 3000k-3500k | 4650±100LM | 240*145*135mm | 227*130mm | >0.90 | ||
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-SMD01-RD60W (New) | 60W | AC100~277V 50~60Hz | 3000k-3500k | 5950±100LM | 240*145*143mm | 215*125mm | >0.90 | ||
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-COB01-RD20W | 20W | AC100~240V 50~60Hz | 3000k-3500k | 1900±100LM | 240*145*135mm | 227*130mm | >0.90 | Bridgelux COB LED | >75 |
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-COB01-RD28W | 28W | AC100~240V 50~60Hz | 3000k-3500k | 2450±100LM | 240*145*135mm | 227*130mm | >0.90 | ||
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-COB01-RD38W | 38W | AC100~240V 50~60Hz | 3000k-3500k | 3200±100LM | 240*145*135mm | 227*130mm | >0.90 | ||
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-COB01-RD48W | 48W | AC100~240V 50~60Hz | 3000k-3500k | 4000±100LM | 240*145*135mm | 227*130mm | >0.90 | ||
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
| NGE-COB01-RD60W | 60W | AC100~277V 50~60Hz | 3000k-3500k | 5000±100LM | 240*145*143mm | 215*125mm | >0.90 | ||
| 4000k-4500k | |||||||||
| 5500k-6500k | |||||||||
Manufacturer of Adjustable 100lm/w CRI>80 Samsung 38W super brightness led down light
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new, green and eco-friendly cause for the world.
