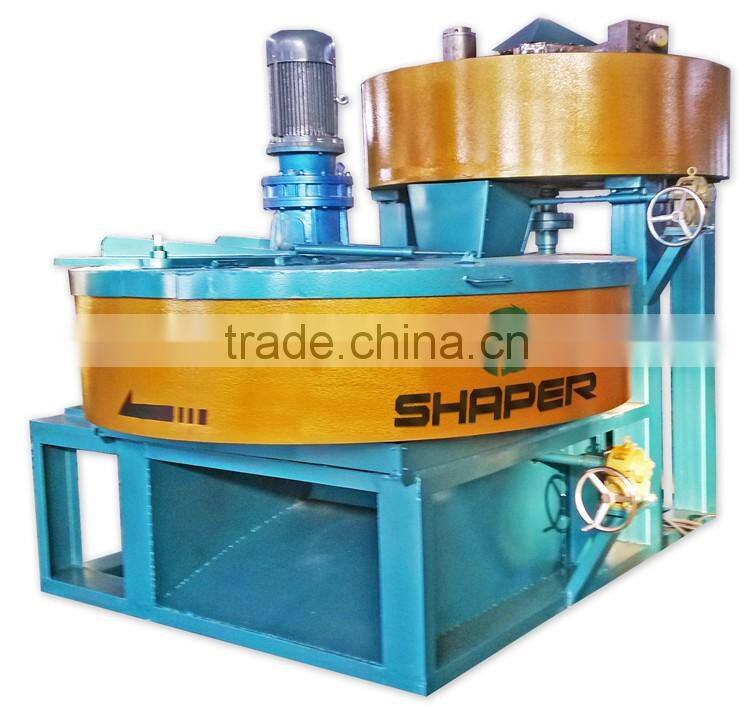

Help CenterProduce Cutting Disc Use Automatic Mixer Machine
Related Products
-
Oven Use for Making Cutting DiscUS$ 1 - 5,000MOQ: 1 Piece -
100-125mm Rotary Type Cutting Disc Making MachineUS$ 23,000 - 23,000MOQ: 1 Piece
-
Cut Wheel Make MachineUS$ 10,000 - 10,000MOQ: 1 Set
-
High-efficiency Automatic Push Style Grinding Cutting Disc Making MachineUS$ 10,000 - 10,000MOQ: 1 Set
-
High-efficiency Cutting Disc Making MachineUS$ 10,000 - 10,000MOQ: 1 Set
Introduction:
Material mixing, which is an important procedure in mould production, refers to a process in which external forces that change both in speed and direction move mould materials (including grinding material, binder and accessories) to evenly mix the grinding material and other materials and to evenly spread the binder on the surface of the grinding material. The more even the binder is spread on the surface of the grinding material, the more likely a high quality mould with even texture will be produced.
Countercurrent double-pot mixer is specially designed for the mixing of shaping materials of moulds with porcelain/resin binder.
Working Principle of Countercurrent Mixing Pot:
1. Material Pot 2. Scratch Board 3. Star-shaped Scraper

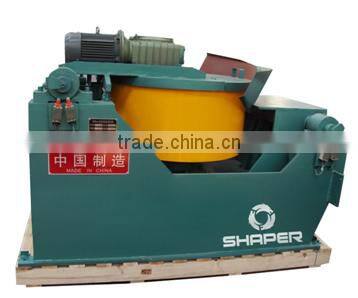

Manual Countercurrent Mixer |
Automatic Hydraulic Countercurrent Mixer | |||||||||
| Equipment include | 50kg semi automatic mixer | 1/set | Equipment include | 100kg full automatic mixer | 1/set | |||||
| 70kg semi automatic mixer | 1/set | 100kg full automatic mixer | 1/set | |||||||
| shift | 1/set | shift | 1/set | |||||||
| automatic controller box | 1/set | |||||||||
| hydraulic pumping station | 1/set | |||||||||
|
|
|
|||||||||
| operating steps: | semi automatic mixer | full automatic mixer | |||||||
| 1,put the material into the first mixer | manual work | manual work | |||||||
| 2,control material mix | manual work | automatic | |||||||
| 3,put out material from the first port, then put them into the second port again | manual work | automatic | |||||||
| 4,put the rest material into second port. | manual work | manual work | |||||||
| 5,control material mix | manual work | automatic | |||||||
| 6,put out material from second port | manual work | automatic | |||||||
| 7,after done mix material, put material into shift | manual work | automatic | |||||||
| 8,shift material | manual work | automatic | |||||||
| heavy physical labour | easy,convenience and fast | ||||||||
500L Large full automatic mixer
