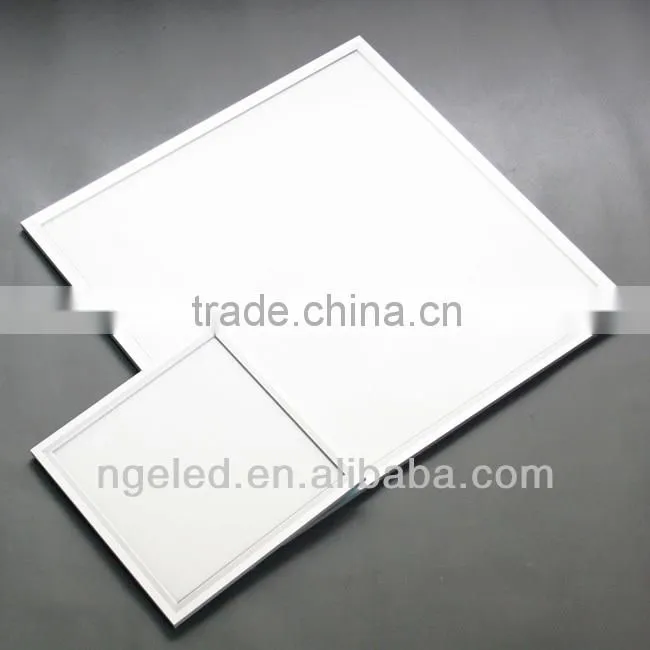

CE RoHS 85lm/w CRI>85 36w 595x595 led panel light
Product Features of CE RoHS 85lm/w CRI>85 36w 595x595 led panel light
- LED: Taiwan 5630 SMD LED, CRI>85, above 85lm/w;
- Driver: High quality constant current drivers, PF>0.95
- Excellent PMMA optical light guide panels, very uniform lighting;
- Patent design frame, easy installation for any application;
- Side emitting model, super light and thickness 12mm;
- PWM and Triac and 1-10V dimming models are available;
- Beam angle:>110°, IP42, CLASS II
- Certificate: CE, RoHS
- Warranty: 3 years
Installation types:
1. Normal recessed installation;
2. Steel wires installation;
3. Spring clips installation;
4. Ceiling mounted by aluminum fastener;
5. Ceiling mounted by aluminum frame.
Technical Parameters of CE RoHS 85lm/w CRI>85 36w 595x595 led panel light
Product Name |
595x595 led panel light |
Item Number |
NGE-P0606-S36W |
Rated Power |
36W |
Input Voltage |
AC100-240V |
Power Factor |
>0.95 |
LED Type |
Taiwan 5630 SMD LED |
LED Quantity |
88 PCS |
Luminous Flux |
2700-3200LM |
Color Temperature |
3000-3500K,4000-4500K,5500-6500K |
CRI |
> Ra85 |
Product Size |
595x595x12mm |
Main Materials |
Oxidized aluminum+PMMA light guide panel |
Temperature |
-40~60°C |
Lifetime |
>35,000hours |
Warranty |
3 years |
Certificate |
CE,RoHS |
Product Pictures of CE RoHS 85lm/w CRI>85 36w 595x595 led panel light
Certificates of CE RoHS 85lm/w CRI>85 36w 595x595 led panel light
Series Products of CE RoHS 85lm/w CRI>85 36w 595x595 led panel light
| Size (mm) | Item No. | Input voltage | Power | Lumen(LM) | LED Quantity | LED Type |
| 595X595mm (600X600) HOT ! |
NGE-P0606-S27W | AC100-240V 50-60Hz | 27W | 2100-2600lm | 88 | 5630 SMD |
| NGE-P0606-S36W | 36W | 2700-3200LM | 88 | |||
| NGE-P0606-S42W | 42W | 3200-3800LM | 88 | |||
| NGE-P0606-S48W | 48W | 3600-4300LM | 110 | |||
| NGE-P0606-S54W | 54W | 4000-4800LM | 120 | |||
| NGE-P0606-S72W | 72W | 5400-6000LM | 176 | |||
| 1195X295mm (1200X300) HOT ! |
NGE-P1203-S36W | 36W | 2700-3200LM | 88 | ||
| NGE-P1203-S42W | 42W | 3200-3800LM | 88 | |||
| NGE-P1203-S48W | 48W | 3600-4300LM | 99 | |||
| NGE-P1203-S54W | 54W | 4100-4800LM | 120 | |||
| NGE-P1203-S72W | 72W | 5400-6000LM | 176 | |||
| 295X295mm (300X300) |
NGE-P0303-S12W | 12W | 900-1200LM | 24 | ||
| NGE-P0303-S18W | 18W | 1300-1600LM | 48 | |||
| NGE-P0303-S24W | 24W | 1800-2200LM | 48 | |||
| NGE-P0303-S36W | 36W | 2700-3200LM | 96 | |||
| 595X295mm (600X300) |
NGE-P0603-S36W | 36W | 2700-3200LM | 88 | ||
|
620X620mm (600X600)Germany Size |
NGE-P0606G-S36W | 36W | 2700-3200LM | 96 | ||
| NGE-P0606G-S48W | 48W | 3600-4300LM | 110 | |||
| NGE-P0606G-S54W | 54W | 4000-4800LM | 120 | |||
| NGE-P0606G-S72W | 72W | 5400-6000LM | 192 | |||
| 1195X595mm (1200X600) |
NGE-P1206-S60W | 60W | 4600-5200LM | 176 | ||
| NGE-P1206-S72W | 72W | 5400-6000LM | 176 | |||
| NGE-P1206-S90W | 90W | 7000-8000LM | 198 |
Packing Information of CE RoHS 85lm/w CRI>85 36w 595x595 led panel light
Production pictures of CE RoHS 85lm/w CRI>85 36w 595x595 led panel light
Manufacturer of CE RoHS 85lm/w CRI>85 36w 595x595 led panel light
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, square led panel light, L ED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology owns more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. The turnover in 2012 is estimated to be 12 million US dollars. Let's work together to devote to the new, green and eco-friendly cause for the world.
