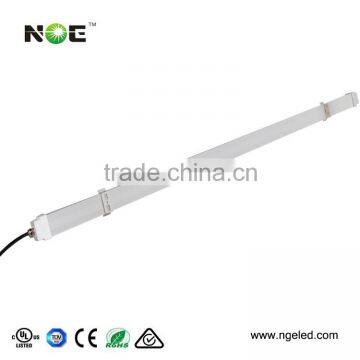

120lm/w 10W 20W 25W single fluorescent tube replacement Mini IP65 tri-proof led light

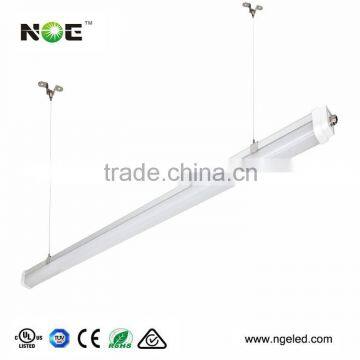

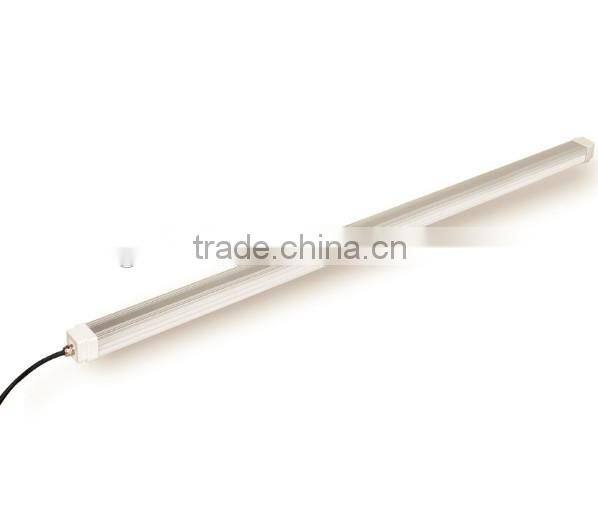

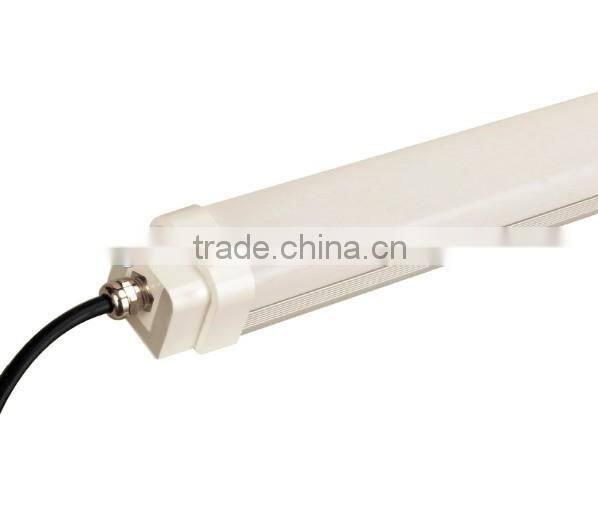

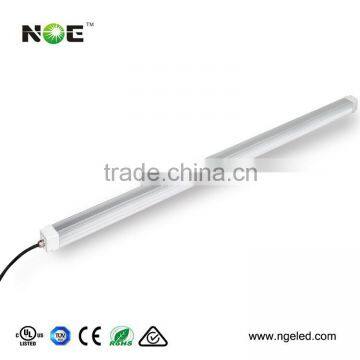

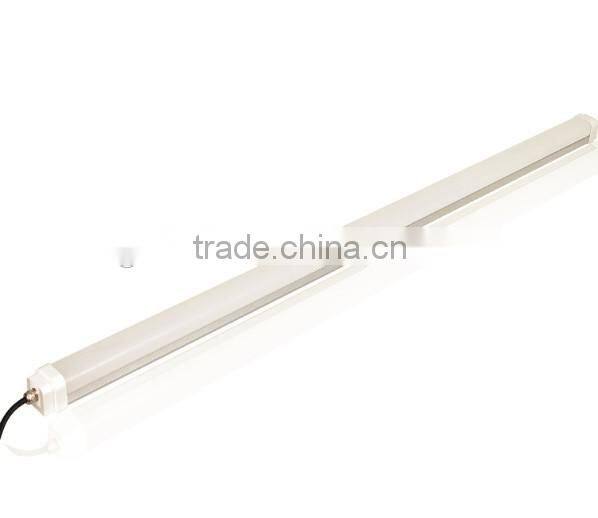

Designed as the replacements for tri-proof light with single or two fluorescent tubes, NGE TP02 series Mini IP65 tri-proof led light have great advantages of IP65 rating, higher bright, longer service lifetime. At the same time, the Mini IP65 LED Tri-proof lights have suspending and mounting installation types. The installer does not need to open the light for installation or servicing.
Benefits
• Replacement for IP65 tri-proof light with single or two fluorescent tube
• Energy saving over 50%
• Environmental protection, no pollution
• Significant reduction in maintenance
Features
• IP rating: IP65
• Epistar 2835 LED, completed light efficiency 115lm/w
• UL and CE approved driver, 5 years warranty
• Better heat dissipation with aluminum shell and PCB
• Consistent color rendering (CRI) > 80
• Warranty: 3 years
Product Specification
| Specification for 120lm/w 10W 20W 25W single fluorescent tube replacement Mini IP65 tri-proof led light | ||
|
General Information |
Product Type | 10w Mini IP65 tri-proof led light |
| Product Size | 600*45*40mm | |
| Product Color | Silver | |
| Electric parameter | Driver Brand | CE approved driver |
| Input Voltage | AC100-240V/50-60Hz | |
| Power | 10W | |
| PF | >0.90 | |
| Optical Parameter |
LED Brand | Epistar chip, 2835 SMD |
| CRI | >80 | |
| Color Temperature (CCT) | 2700K-7000K | |
| Luminous Flux | 1150lm±5% | |
Luminous Efficiency |
115lm/w | |
| Beam angle | 120° | |
| Others | Lifetime | 50,000Hr |
| Operating temperature | -40℃~50℃ | |
| Warranty | 3 years | |
| Materials | AL housing+PC cover | |

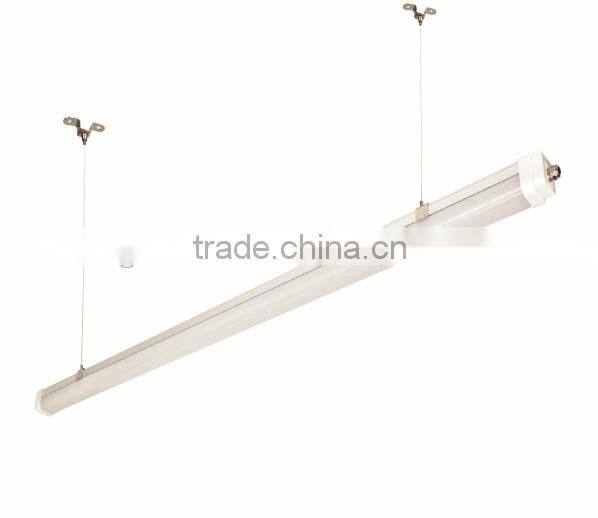

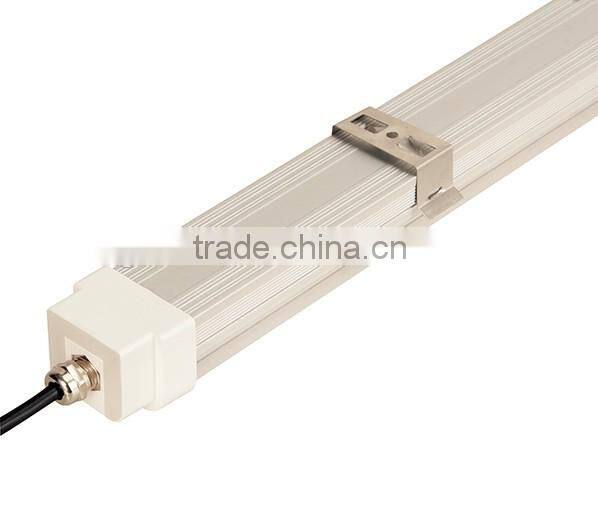

| Installation | Suspending and Mounting | |
| Application |
Industry, cold storage, Packing lot, Farm |
|
Series Products of 120lm/w 10W 20W 25W single fluorescent tube replacement Mini IP65 tri-proof led light
Item No. |
Input Voltage |
Power |
LEDs |
Luminous Flux |
Luminous Efficiency |
CRI |
PF |
IP rating |
NGE-TP02-60CM-10W |
AC100-240V |
10W |
180pcs |
1150lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
NGE-TP02-60CM-20W |
AC100-240V |
20W |
216pcs |
2300lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
NGE-TP02-90CM-15W |
AC100-240V |
15W |
216pcs |
1725lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
NGE-TP02-90CM-25W |
AC100-240V |
25W |
252pcs |
2875lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
NGE-TP01-120CM-20W |
AC100-240V |
20W |
288pcs |
2300lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
NGE-TP01-120CM-25W |
AC100-240V |
25W |
288pcs |
2875lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
NGE-TP01-120CM-30W |
AC100-240V |
30W |
324pcs |
3450lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
NGE-TP01-120CM-40W |
AC100-240V |
40W |
324pcs |
4600lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
NGE-TP01-150CM-25W |
AC100-240V |
25W |
396pcs |
2875lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
NGE-TP01-150CM-30W |
AC100-240V |
30W |
396pcs |
3450lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
| NGE-TP01-150CM-40W | AC100-240V | 40W | 432pcs | 4600lm±5% | 115lm/w | >80 | >0.90 | IP65 |
NGE-TP01-150CM-50W |
AC100-240V |
50W |
432pcs |
5750lm±5% |
115lm/w |
>80 |
>0.90 |
IP65 |
Application
• Industry
• Cold storage
• Parking lot
• Farm

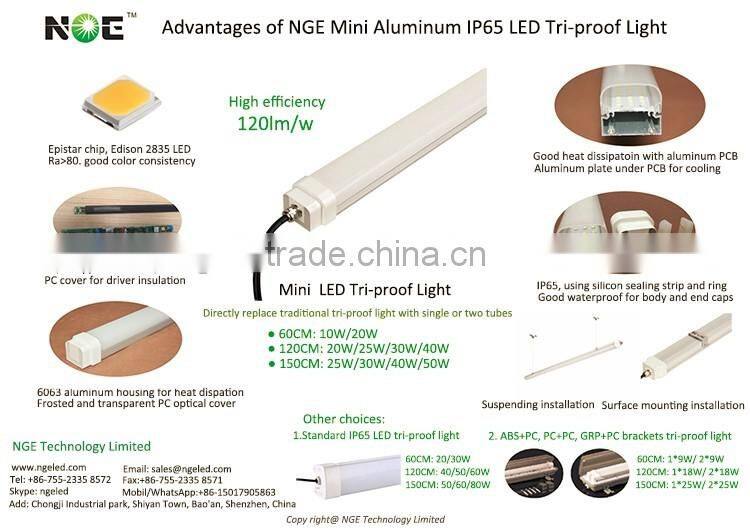

Product Advantages:
Item No. |
Quantity/Carton |
Net weight/Pcs |
Gross Weight/ Carton |
Carton Size |
Notes |
NGE-TP02-60CM |
12 |
7.8kg |
9.5kg |
655*200*270mm |
Each light packed by one PE bag and box. |
NGE-TP02-90CM |
12 |
8.6kg |
12kg |
955*200*270mm |
|
NGE-TP02-120CM |
12 |
10.8kg |
14kg |
1255*200*270mm |
|
NGE-TP02-150CM |
9 |
10.4kg |
13kg |
1555*200*230mm |
NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are Gimbal LED downlight, rectangular LED downlight, LED panel light, LED high bay light, Mini IP65 tri-proof led light and IP65 LED tri-proof light.
NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are TUV, SAA, CE and RoHS approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
Welcome to inquire 120lm/w 10W 20W 25W single fluorescent tube replacement Mini IP65 tri-proof led light.
