led panel light 60 60 panel led light square surface mounted panel light
- 20000 Piece / Pieces per Month
- Shenzhen Hong Kong
- T/T Credit Card
- MDL Sky LED Panel Light Model: MDL-PL-SKY
- A led panel light 12w 220v led lights for home round backlit square frameless plastic recessed foco led panel lights
- A Factory Wholesale Low Price 8W 12W 18W 24W 30W Surface Indoor Lighting Ceiling Led Panel Lights
- MDL Ultra-thin LED Panel Light Model: MDL-PLRB
- Keysight/Agilent T34450A OLED Green
- led panel light 12w 220v round backlit square frameless plastic recessed led panel light
Product Details
LED Light Source: | Epistar SMD 2835 | Warranty(Years): | 3 | Input Voltage(V): | AC100-240V |
Lamp Power(W): | 36 | Lamp Luminous Flux(lm): | 3060lm±5% | Lamp Luminous Efficiency(lm/w): | 85 |
Color Temperature(CCT): | Other, 2700-7000K | Working Temperature(℃): | -30, 45 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum Alloy | IP Rating: | IP44 | Certification: | C-tick, CE, EMC, LVD |
Place of Origin: | Guangdong, China | Brand Name: | NGE | Model Number: | NGE-P0606-S36W |
Product Description
led panel light 60 60 panel led light square surface mounted panel light
LED panel light is the ideal replacement for the conventional fluorescent tube and grille lamp, energy-saving up to 60%. With more uniform and soft light, deluxe appearance, NGE LED flat panel lighting become one of the most potential popular office lighting.

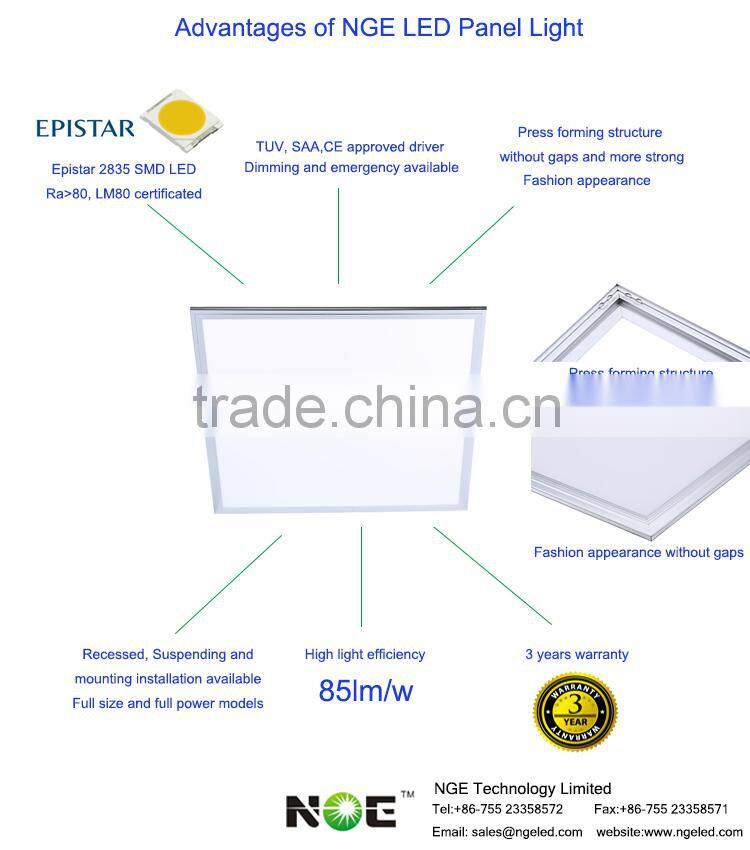

Benefits
Replacement for traditional grille lamp
Energy saving over 60%
Environmental protection, no pollution
Significant reduction in maintenance cost
High CRI>80
Features
LED: Taiwan Epistar SMD, light efficiency of led ceiling panel light 85lm/w;
Driver: TUV, CE, SAA, UL listed, conversion efficiency above 85% and PF>0.90;
Excellent PMMA optical light guide plate,very uniform light;
Patent design frame, easy installation for any application;
Side emitting model, super light and thickness 11mm;
Triac and 0-10V dimming models are available;
Beam angle:>110°, Ra>80, IP44 CLASS 2
Certificate: CE, RoHS
Warranty: 3 years
Product Specification
Specification for led panel light 60 60 panel led light square surface mounted panel light | ||
General Information | Product Type | 600x600 36w led panel light |
Product Size | L595*W595mm | |
Product Color | white/silver | |
Electric parameter | Driver Brand | CE, TUV, SAA approved |
Input Voltage | AC100-240V/50-60Hz | |
Power | 36W | |
PF | >0.90 | |
Optical Parameter | LED Brand | Taiwan Epistar 2835 SMD |
CRI | >80 | |
Color Temperature (CCT) | 2700K-7000K | |
Luminous Flux | 3060lm±5% | |
Luminous Efficiency | 85lm/w | |
Beam angle | 120° | |
Others | Lifetime | 50,000Hr |
Operating temperature | -30℃~45℃ | |
Warranty | 3 years | |
Materials | AL housing+ +AL board | |
Installation | Recessed, Suspending, Surface mounting installation | |
Application | shops, hotel, supermarkets, offices |
Series Products of led panel light 60 60 panel led light square surface mounted panel light
Item No. | Input Voltage | Size (mm) | Power | Luminous Flux | Beam Angle | CRI | PF |
NGE-P0606-S30W | AC100-240V | 600*600 | 30W | 2550lm±5% | 120° | >80 | >0.90 |
NGE-P0606-S36W | AC100-240V | 600*600 | 36W | 3060lm±5% | 120° | >80 | >0.90 |
NGE-P0606-S42W | AC100-240V | 600*600 | 42W | 3570lm±5% | 120° | >80 | >0.90 |
NGE-P0606-S48W | AC100-240V | 600*600 | 48W | 4080lm±5% | 120° | >80 | >0.90 |
NGE-P0606-S60W | AC100-240V | 600*600 | 60W | 5100lm±5% | 120° | >80 | >0.90 |
NGE-P1203-S36W | AC100-240V | 1200*300 | 36W | 3060lm±5% | 120° | >80 | >0.90 |
NGE-P1203-S48W | AC100-240V | 1200*300 | 48W | 4080lm±5% | 120° | >80 | >0.90 |
NGE-P1203-S60W | AC100-240V | 1200*300 | 60W | 5100lm±5% | 120° | >80 | >0.90 |
NGE-P0303-S12W | AC100-240V | 300*300 | 12W | 1020lm±5% | 120° | >80 | >0.90 |
NGE-P0303-S18W | AC100-240V | 300*300 | 18W | 1530lm±5% | 120° | >80 | >0.90 |
NGE-P0603-S18W | AC100-240V | 600*300 | 18W | 1530lm±5% | 120° | >80 | >0.90 |
NGE-P0603-S27W | AC100-240V | 600*300 | 27W | 2295lm±5% | 120° | >80 | >0.90 |
NGE-P0606G-S36W | AC100-240V | 620*620 | 36W | 3060lm±5% | 120° | >80 | >0.90 |
NGE-P0606G-S48W | AC100-240V | 620*620 | 48W | 4080lm±5% | 120° | >80 | >0.90 |
NGE-P0606G-S60W | AC100-240V | 620*620 | 60W | 5100lm±5% | 120° | >80 | >0.90 |
NGE-P1206-S48W | AC100-240V | 1200*600 | 48W | 4080lm±5% | 120° | >80 | >0.90 |
NGE-P1206-S60W | AC100-240V | 1200*600 | 60W | 5100lm±5% | 120° | >80 | >0.90 |
NGE-P1206-S72W | AC100-240V | 1200*600 | 72W | 6120lm±5% | 120° | >80 | >0.90 |
Application
• Shop
• Supermarket
• Department store
• Offices
• Hotel, school, hospital
Item No. | Quantity/Carton | Net weight/Pcs | Gross Weight/ Carton | Carton Size | Notes |
300*300mm led panel light | 10 | 1.1kg | 13.3kg | 69*37.5*17cm | Each light packed by one PE bag, and use EPE Foam packing in each box. |
600*300mm LED panel | 5 | 2.2kg | 13.5kg | 69*36*17cm | |
600*600mm LED panel | 5 | 4.2kg | 23kg | 69*66*17.6cm | |
1200*300mm LED panel | 4 | 4.4kg | 18.5kg | 128.5*36*14.5cm | |
1200*600mm LED panel | 3 | 7.8kg | 30kg | 128.5*66*14.5cm |
NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are adjustable COB LED downlight, adjustable rectangular LED downlight, led light downlight dimmable, china shenzhen LED panel 60x60 62x62 price, LED high bay light and LED tri-proof light.
NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
Welcome to inquiry led panel light 60 60 panel led light square surface mounted panel light .
Contact Us
- Shenzhen NGE Technology Co., Ltd.
- Contact nameBen Chen
- Phone86-755-23358572
- AddressChongji industrial park,Shiyan Town,Bao'an,Shenzhen,China Shenzhen,Guangdong
