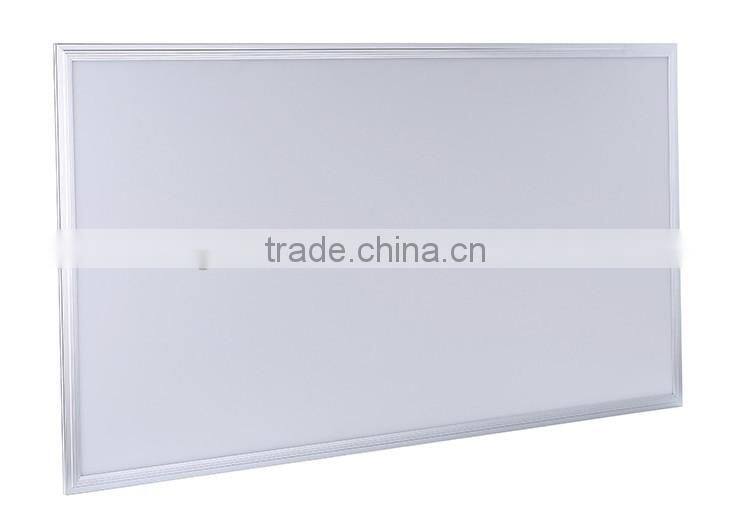

5 Years Warranty 100lm/w Lifud Driver 600x300 24w Led Panel Lights Smd

5 Years Warranty 100lm/w Lifud Driver 600x300 24w Led Panel Lights Smd thumbnail-1
5 Years Warranty 100lm/w Lifud Driver 600x300 24w Led Panel Lights Smd thumbnail-2
5 Years Warranty 100lm/w Lifud Driver 600x300 24w Led Panel Lights Smd thumbnail-3
5 Years Warranty 100lm/w Lifud Driver 600x300 24w Led Panel Lights Smd thumbnail-4
5 Years Warranty 100lm/w Lifud Driver 600x300 24w Led Panel Lights Smd photo-1
5 Years Warranty 100lm/w Lifud Driver 600x300 24w Led Panel Lights Smd photo-2
5 Years Warranty 100lm/w Lifud Driver 600x300 24w Led Panel Lights Smd photo-3
5 Years Warranty 100lm/w Lifud Driver 600x300 24w Led Panel Lights Smd photo-4
US$ 12.8 - 49.4 MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar SMD
Warranty(Years):
5
Input Voltage(V):
AC200-240V
Contact Supplier Request Quote Chat Now
Shenzhen NGE Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar SMD
Warranty(Years) 5
Input Voltage(V) AC200-240V
Lamp Power(W) 24
Lamp Luminous Flux(lm) 2400lm±5%
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2700-7000K
Working Temperature(℃) -30, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP44
Certification CE, EMC, GS, LVD
Place of Origin Guangdong, China
Brand Name NGE
Model Number NGE-P0603-S24W

5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd



Product Description

LED led panel is the ideal replacement for the conventional fluorescent tube and grille lamp, energy-saving up to 60%. With more uniform and soft light, deluxe appearance, NGE led panel become one of the most potential popular office lighting.



Benefits

 Replacement for traditional grille lamp

 Energy saving over 60%

 Environmental protection, no pollution

 Significant reduction in maintenance cost

 High CRI>80



Features

LED: Epistar 4014 SMD, LM-80 passed, SDCM<4, LED panel>100lm/w;
Driver: TUV CE RCM CB GS approved Lifud Driver, PF>0.95;
Excellent Taiwan CHIMEI PMMA optical light guide plate, very uniform light;

Patent design folded structure, no light leak, easy installation for any application;

Side emitting model, ultra thin design with thickness only 9mm;

8 years LED panel production experience, no brighter borders, brighter points and ripple.
Triac, 0-10V dimming and emergency models are available;
Beam angle:>110°, Ra>80, IP44 CLASS 2

Certificate: CE, RoHS

Warranty: 5 years



Product Specification

Specification for 5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd

General

Information

 Product Type 24w led panel lights smd
Product Size

L595*W295mm
Product Color white/silver
       Electric          parameter  Driver Brand TUV CE RCM CB GS approved Lifud Driver
Input Voltage AC200-240V/50-60Hz
Power 24W
PF >0.95
  Optical   Parameter
 LED Brand Epistar 4014 SMD, LM-80 passed
CRI >80
Color Temperature (CCT) 2700K-7000K
Luminous Flux 2400lm±5%

Luminous Efficiency

 100lm/w
Beam angle  120°
Others Lifetime 50,000Hr
Operating temperature -30℃~45℃
Warranty 5 years
Materials AL housing+ +AL board
Installation Recessed, Suspending, Spring clips, Surface mounting installation
Application shops, hotel, supermarkets, offices



Series Products of 5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd

Item No.

Input Voltage

Size (mm)

Power

Luminous Flux

Beam Angle
NGE-P0606-S24W AC200-240V
 600*600
  24W 2400lm±5% 120°
NGE-P0606-S30W AC200-240V  600*600
 30W 3000lm±5%   120°
NGE-P0606-S36W AC200-240V
 600*600
 36W 3600lm±5%
 120°
NGE-P0606-S48W AC200-240V 600*600 48W 4800lm±5%  120°

NGE-P0606-S54W

AC100-240V

600*600

 54W

5400lm±5%

120°

NGE-P0606-S60W

AC200-240V

600*600

60W

6000lm±5%

120°
NGE-P1203-S30W AC200-240V
 1200*300
 30W 3000lm±5%
 120°
NGE-P1203-S36W AC200-240V
  1200*300
 36W 3600lm±5%    120°
NGE-P1203-S48W AC200-240V  1200*300
  48W 4800lm±5%   120°
NGE-P1203-S54W AC200-240V
 1200*300
  54W 5400lm±5%   120°
NGE-P1203-S60W AC200-240V
 1200*300
 60W 6000lm±5%
 120°
NGE-P0303-S18W AC200-240V
 300*300 18W 1800lm±5%    120°

NGE-P0603-S18W

AC200-240V

600*300

18W

1800lm±5%

120°

NGE-P0603-S24W

AC200-240V 600*300 24W 2400lm±5%  120°

NGE-P0603-S30W

AC200-240V

600*300

30W

3000lm±5%

120°

NGE-P0606G-S36W

AC200-240V

620*620

36W

3600lm±5%

120°
NGE-P0606G-S48W AC200-240V 620*620 48W 4800lm±5%  120°
NGE-P0606G-S54W AC200-240V 620*620 54W 5400lm±5%  120°
NGE-P0606G-S60W AC200-240V 620*620 60W 6000lm±5%  120°

NGE-P1206-S48W

AC200-240V

1200*600

48W

4800lm±5%

120°

NGE-P1206-S54W

AC200-240V

1200*600

54W

5400lm±5%

120°

NGE-P1206-S60W

AC200-240V

1200*600

60W

6000lm±5%

120°



Application

• Shop

• Supermarket

• Department store

• Offices

• Hotel, school, hospital

Detailed Images

 5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd

5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd



Packaging & Shipping



Item No.

Quantity/Carton

Net weight/Pcs

Gross Weight/ Carton

Carton Size

Notes

       300*300mm        LED panel

10

9kg

11kg

40*35*39cm

Each light packed by one PE bag, and use EPE Foam packing in each box.
   600*300mm       LED panel
 10 18kg  20kg  69*34*39cm

   600*600mm       LED panel

5

18kg

20kg

69*64*20cm

 620*620mm       LED panel

5

19.5kg

21kg

75*69*22cm

       1200*300mm        LED panel

5

18kg

21kg

129*34*20cm

     1200*600mm        LED panel

3

21.6kg

24kg

130*65*15cm



Company Information



NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are T5 and T8 LED tube light, adjustable LED downlight, adjustable rectangular LED downlight, led downlight, led panel, LED high bay light and LED tri-proof light.



NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.



NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.



5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd



Welcome to inquire 5 years warranty 100lm/w Lifud driver 600x300 24w led panel lights smd.
