Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm

Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm thumbnail-1
Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm thumbnail-2
Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm thumbnail-3
Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm thumbnail-4
Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm thumbnail-5
Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm photo-1

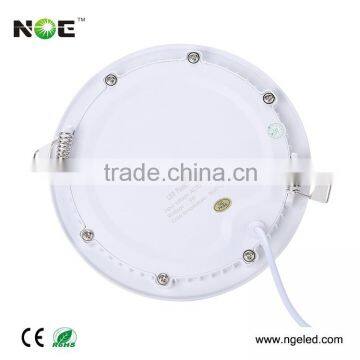

Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm photo-2
Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm photo-3

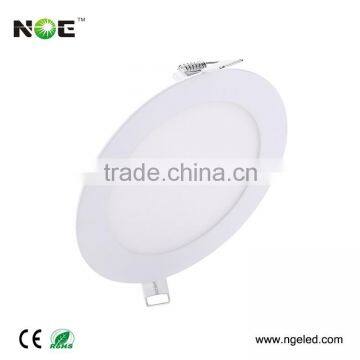

Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm photo-4

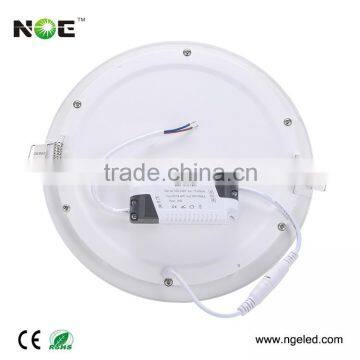

Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm photo-5
US$ 2 - 10.1 MOQ: 20 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD 2835
Warranty(Years):
3
Input Voltage(V):
AC100-240V
Contact Supplier Request Quote Chat Now
Shenzhen NGE Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD 2835
Warranty(Years) 3
Input Voltage(V) AC100-240V
Lamp Power(W) 12
Lamp Luminous Flux(lm) 900lm±5%
Lamp Luminous Efficiency(lm/w) 75
Color Temperature(CCT) Other, 2700-7000K
Working Temperature(℃) -30, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP44
Certification CE, EMC, FCC, LVD
Place of Origin Guangdong, China
Brand Name NGE
Model Number NGE-P170-R12W

Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm



Product Description

NGE round LED panel is the ideal replacement for the conventional downlight, energy-saving up to 60%. With more uniform and soft light, deluxe appearance, NGE round LED panel become one of the most potential popular commercial lighting.



Benefits

 Replacement for traditional downlight

 Energy saving over 60%

 Environmental protection, no pollution

 Significant reduction in maintenance cost

 High CRI>80



Features

LED: Taiwan Epistar 2835 SMD, light efficiency of LED panel round 75lm/w;
Driver: High quality external constant current driver, stable and PF>0.9;
Excellent PMMA optical light guide plate,very uniform light;

Side emitting model, super light and thickness 12mm;
Beam angle:>110°, Ra>80, IP44 CLASS 2

Warranty: 3 years



Product Specification

Specification for   Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm

General

Information

 Product Type 12w round led panel light
Product Size

Φ170*12mm

Cutout

Φ155mm

Product Color White
       Electric          parameter  Input Voltage AC100-240V/50-60Hz
Power 12W
Flickering
 No flickering
PF >0.90
  Optical   Parameter
 LED Brand Epistar 2835 SMD
CRI >80
Color Temperature (CCT) 2700K-7000K
Luminous Flux 900lm±5%

Luminous Efficiency

 75lm/w
Beam angle  120°
Others Lifetime 50,000Hr
Operating temperature -30℃~45℃
Warranty 3 years
Materials AL housing+ +AL board
Installation Recessed installation round led panel
Application shops, hotel, supermarkets, offices



Series Products of  Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm

Item No.

Input Voltage

Size (mm)

Cutout (mm)

Power

Luminous Flux

Beam Angle

CRI

PF

NGE-P90-R3W

AC100-240V

Φ90*12

Φ70

3W

210lm±5%

120°

>80

>0.90
NGE-P120-R6W AC100-240V
 Φ120*12
 Φ105
  6W 450lm±5% 120° >80  >0.90
NGE-P145-R9W AC100-240V  Φ145*12
 Φ130
  9W 675lm±5% 120°
 >80   >0.90
NGE-P170-R12W AC100-240V  Φ170*12
 Φ155
 12W 900lm±5%   120°
   >80
  >0.90
NGE-P190-R15W AC100-240V
  Φ190*12
 Φ175
 15W 1125lm±5%    120°
 >80  >0.90
NGE-P225-R18W AC100-240V  Φ225*12
 Φ200
  18W 1350lm±5%     120°
 >80  >0.90
NGE-P300-R24W AC100-240V
 Φ300*12 Φ285
 24W 1800lm±5%   120°
 >80  >0.90



Application

• Shop

• Supermarket

• Department store

• Offices

• Hotel, restaurant

Detailed Images

 Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mmLed Ceiling Light Design Round Led Panel Light With Low Price 12w 170mmLed Ceiling Light Design Round Led Panel Light With Low Price 12w 170mmLed Ceiling Light Design Round Led Panel Light With Low Price 12w 170mmLed Ceiling Light Design Round Led Panel Light With Low Price 12w 170mmLed Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm





Product Advantages

 Led Ceiling Light Design Round Led Panel Light With Low Price 12w 170mm

Packaging & Shipping



Item No.

Quantity/Carton

Net weight/Pcs

Gross Weight/ Carton

Carton Size

Notes

  90mm

round LED panel

100

0.12kg

12.2kg

675*330*215mm

Each light packed by one PE bag and box.
     120mm

LED panel round

 100 0.19kg  20kg
640*320*320mm

        145mm            round LED panel

60

0.29kg

18.6kg
570*320*340mm

 170mm

LED panel round

40

0.35kg

15.1kg
375*435*330mm

           190mm           round LED panel

40

0.46kg

19.5kg
505*415*330mm

            225mm            LED panel round

 20 0.63kg 13.5kg
560*325*250mm

             300mm           round LED panel

20

0.97kg

20.5kg
650*360*310mm



Company Information



NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are adjustable COB LED downlight, adjustable rectangular LED downlight,  led light downlight, round led panel, led panel, LED high bay light and LED tri-proof light.



NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.



NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
