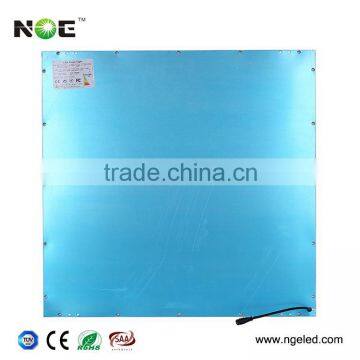

100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light

100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light thumbnail-1
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light thumbnail-2
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light thumbnail-3
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light thumbnail-4
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light thumbnail-5
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light thumbnail-6
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light photo-1
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light photo-2
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light photo-3
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light photo-4
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light photo-5
100lm SMD 2835 Led Panel Light Flat Panel Led Light 36w Ceiling Led Panel Light photo-6
US$ 12.8 - 49.4 MOQ: 5 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Epistar SMD 2835
Warranty(Years):
5
Input Voltage(V):
AC100-240V
Contact Supplier Request Quote Chat Now
Shenzhen NGE Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hong Kong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar SMD 2835
Warranty(Years) 5
Input Voltage(V) AC100-240V
Lamp Power(W) 36
Lamp Luminous Flux(lm) 3600lm±5%
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, 2700-7000K
Working Temperature(℃) -30, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP44
Certification C-tick, CE, EMC, LVD
Place of Origin Guangdong, China
Brand Name NGE
Model Number NGE-P0606-S36W

100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light





Product Description

LED panel light is the ideal replacement for the conventional fluorescent tube and grille lamp, energy-saving up to 60%. With more uniform and soft light, deluxe appearance, NGE LED flat panel lighting become one of the most potential popular office lighting.



Benefits

 Replacement for traditional grille lamp

 Energy saving over 60%

 Environmental protection, no pollution

 Significant reduction in maintenance cost

 High CRI>80



Features

LED: Taiwan Epistar SMD, light efficiency of led ceiling panel light 85lm/w;
Driver: TUV, CE, SAA, UL listed, conversion efficiency above 85% and PF>0.90;
Excellent PMMA optical light guide plate,very uniform light;

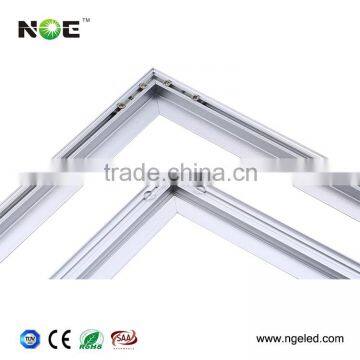

Patent design frame, easy installation for any application;

Side emitting model, super light and thickness 11mm;
Triac and 0-10V dimming models are available;
Beam angle:>110°, Ra>80, IP44 CLASS 2

Certificate: CE, RoHS

Warranty: 3 years



Product Specification

Specification for   100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light

General

Information

 Product Type 4014 smd led panel light
Product Size

L595*W595mm
Product Color white/silver
       Electric          parameter  Driver Brand CE, TUV, SAA approved
Input Voltage AC100-240V/50-60Hz
Power 36W
PF >0.90
  Optical   Parameter
 LED Brand Taiwan Epistar 2835 SMD
CRI >80
Color Temperature (CCT) 2700K-7000K
Luminous Flux 3600lm±5%

Luminous Efficiency

 100lm/w
Beam angle  120°
Others Lifetime 50,000Hr
Operating temperature -30℃~45℃
Warranty 5 years
Materials AL housing+ +AL board
Installation Recessed, Suspending, Surface mounting installation
Application shops, hotel, supermarkets, offices



Series Products of   100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light

Item No.

Input Voltage

Size (mm)

Power

Luminous Flux

Beam Angle

CRI

PF

NGE-P0606-S30W

AC100-240V

600*600

30W

2550lm±5%

120°

>80

>0.90
NGE-P0606-S36W AC100-240V
 600*600
  36W 3060lm±5% 120° >80  >0.90
NGE-P0606-S42W AC100-240V  600*600
  42W 3570lm±5% 120°
 >80    >0.90
NGE-P0606-S48W AC100-240V  600*600
 48W 4080lm±5%   120°
   >80
  >0.90

NGE-P0606-S60W

AC100-240V

600*600

 60W

5100lm±5%

120°

>80

>0.90
NGE-P1203-S36W AC100-240V
  1200*300
 36W 3060lm±5%    120°
 >80  >0.90
NGE-P1203-S48W AC100-240V  1200*300
  48W 4080lm±5%   120°
 >80  >0.90
NGE-P1203-S60W AC100-240V
 1200*300
  60W 5100lm±5%   120°
 >80
 >0.90
NGE-P0303-S12W AC100-240V  300*300
  12W 1020lm±5%     120°
 >80  >0.90
NGE-P0303-S18W AC100-240V
 300*300 18W 1530lm±5%   120°
 >80  >0.90
NGE-P0603-S18W  AC100-240V
 600*300
  18W  1530lm±5% 120°
 >80  >0.90

NGE-P0603-S27W

AC100-240V

600*300

27W

2295lm±5%

120°

>80

>0.90

NGE-P0606G-S36W

AC100-240V

620*620

36W

3060lm±5%

120°

>80

>0.90

NGE-P0606G-S48W

AC100-240V

620*620

48W

4080lm±5%

120°

>80

>0.90

NGE-P0606G-S60W

AC100-240V

620*620

60W

5100lm±5%

120°

>80

>0.90

NGE-P1206-S48W

AC100-240V

1200*600

48W

4080lm±5%

120°

>80

>0.90

NGE-P1206-S60W

AC100-240V

1200*600

60W

5100lm±5%

120°

>80

>0.90

NGE-P1206-S72W

AC100-240V

1200*600

72W

6120lm±5%

120°

>80

>0.90



Application

• Shop

• Supermarket

• Department store

• Offices

• Hotel, school, hospital

Detailed Images

100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light

 100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light



Product Advantages

 100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light

Packaging & Shipping



Item No.

Quantity/Carton

Net weight/Pcs

Gross Weight/ Carton

Carton Size

Notes

       300*300mm        led panel light

10

1.1kg

13.3kg

69*37.5*17cm

Each light packed by one PE bag, and use EPE Foam packing in each box.
   600*300mm       LED panel
 5 2.2kg  13.5kg  69*36*17cm

   600*600mm       LED panel

5

4.2kg

23kg

69*66*17.6cm

       1200*300mm        LED panel

4

4.4kg

18.5kg

128.5*36*14.5cm

     1200*600mm        LED panel

3

7.8kg

30kg

128.5*66*14.5cm



Company Information



NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are adjustable COB LED downlight, adjustable rectangular LED downlight,  led light downlight dimmable, china shenzhen LED panel 60x60 62x62 price, LED high bay light and LED tri-proof light.



NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.



NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.



100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light



Welcome to inquiry  100lm SMD 2835 led panel light flat panel led light 36w ceiling led panel light .
