Home > Products > LED High Bay Light > Round Ufo Led Highaby Lighting 200w Dimmable Ufo Highbay Ip65
Round Ufo Led Highaby Lighting 200w Dimmable Ufo Highbay Ip65
- Shenzhen Hong Kong
- T/T Credit Card
You May Like
-
5 Years Warranty Round Shape Led High Bay 150w
-
110lm/w Samsung Smd Led Highbay Fitting Dimmable Ufo High Bay 80w
-
IP65 80w 100w120w Ufo Led Highbay 5 Years Warranty
-
Quality 110lm/w Round Highbay Led 50w Led Round Highbay Dimmable 50w
-
5 Years Warranty Ufo Led Highbay Light Fixture 50w Round Led Highbay Lighting
-
Quality Samsung Smd UFO Led Highbay Fixture 110lm/w 100w Dimmable Highbay
Product Details
| LED Light Source | Samsung 3030 SMD | Warranty(Years) | 5 | |
| Input Voltage(V) | AC90-305V | Lamp Power(W) | 200 | |
| Lamp Luminous Flux(lm) | 22000 | Lamp Luminous Efficiency(lm/w) | 110 | |
| Color Temperature(CCT) | Other, 2700K-7000K | Working Temperature(℃) | -40, 50 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum Alloy | |
| IP Rating | IP65 | Certification | C-tick, CE, EMC, LVD, SAA, UL | |
| Place of Origin | Guangdong, China | Brand Name | NGE | |
| Model Number | NGE-HB03-200W |
Product Description

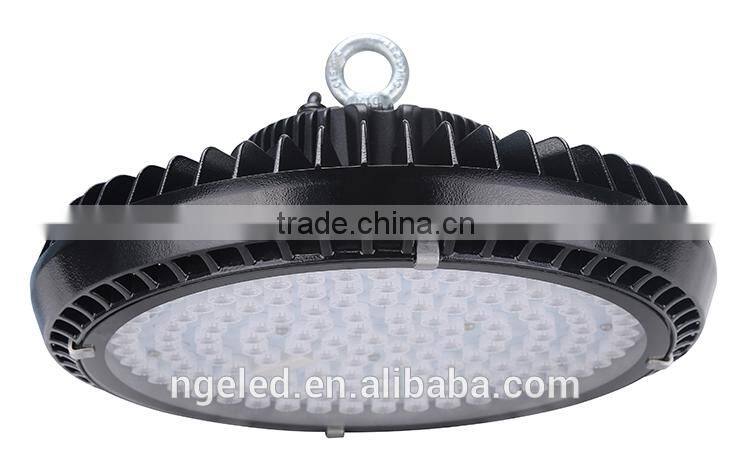

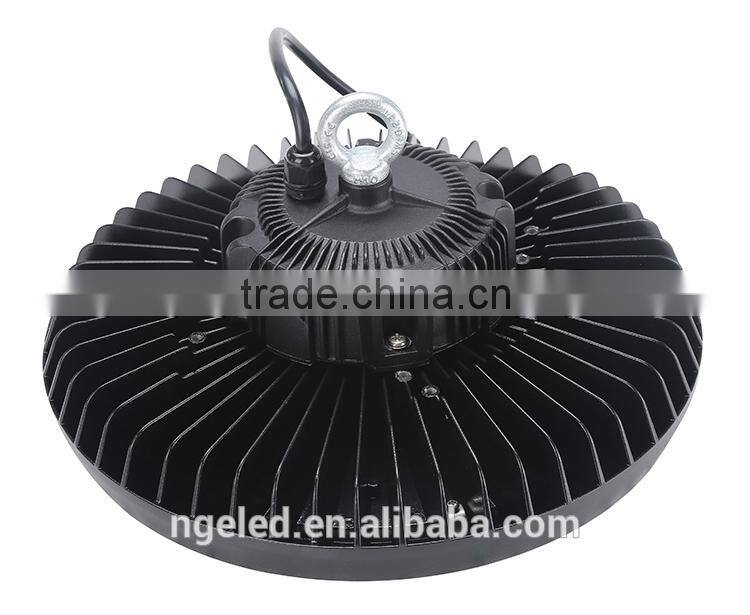

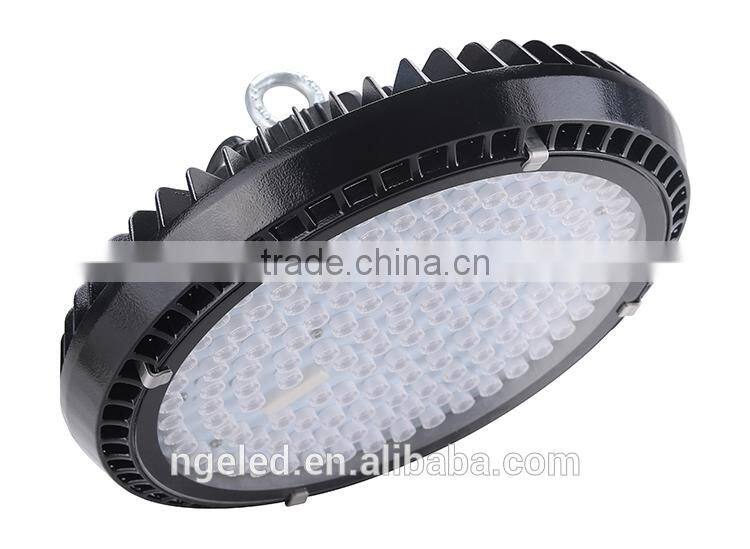

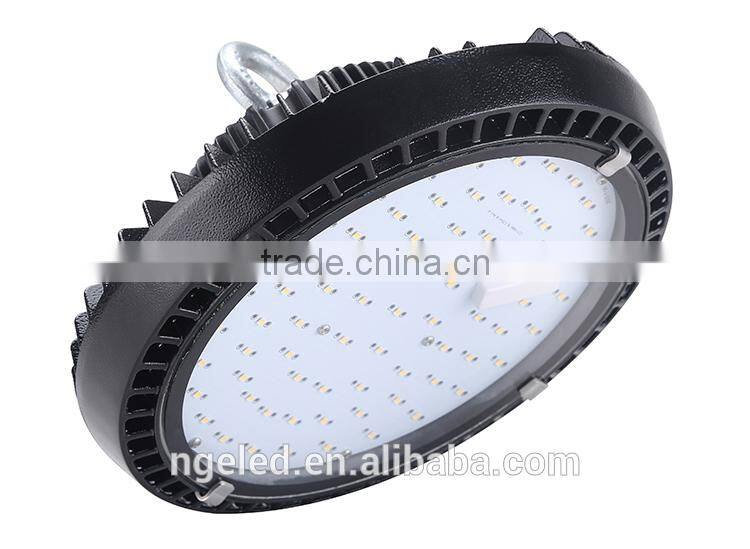

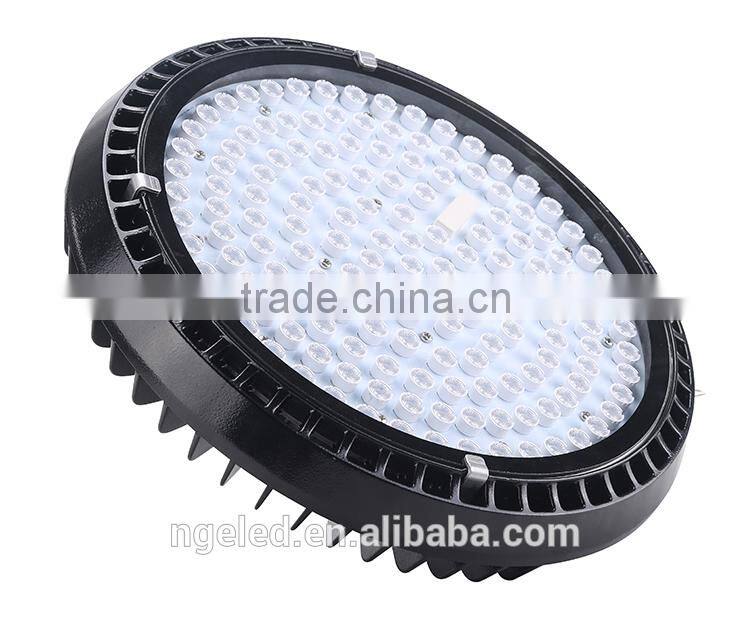

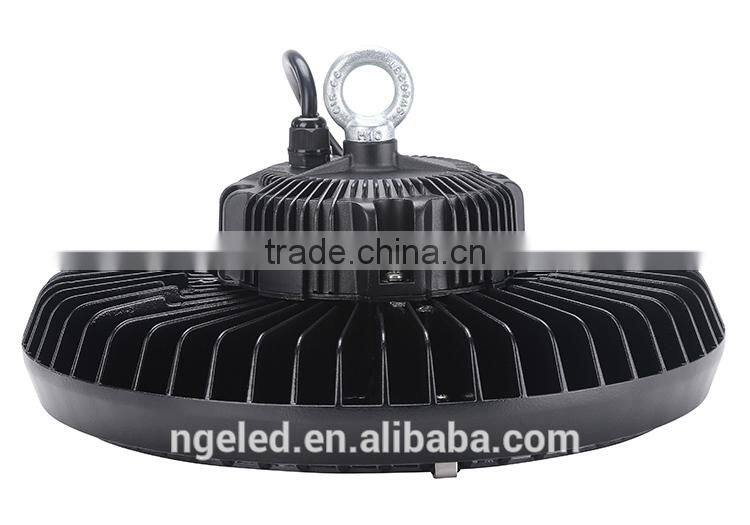

Round ufo led highaby lighting 200w dimmable ufo highbay ip65
Designed as the replacements for HID and HPI 250/400W high bay light, NGE HB03 series 110lm/w Samsung 3030 SMD ufo led high bay light 200w led industrial lighting have great advantages of higher bright, better heat dissipation and longer service lifetime.
Benefits
• Replacement for HID and HPI 250/400W high bay light
• Energy saving over 50%
• Environmental protection, no pollution
• Significant reduction in installation & maintenance cost
• Great reduction in shipment cost as small measure
Features
• Samsung 3030 SMD LED, luminaire light efficiency 110lm/w
• Mean well driver, IP65 and 5 years warranty
• Aluminum heatsink with fins, bigger heat radiating area
• With big aluminum PCB and SMD, better heat dissipation
• Consistent color rendering (CRI) > 80
• Warranty: 5 years
Product Specification
| Specification for Round ufo led highaby lighting 200w dimmable ufo highbay ip65 | ||
General Information | Product Type | 200w ufo led high bay light |
| Product Size | φ342*192mm | |
| Product Color | Black or silver | |
| Electric parameter | Driver Brand | Meanwell HBG Series |
| Input Voltage | AC90-305V/50-60Hz | |
| Power | 200W | |
| PF | >0.95 | |
| Optical Parameter | LED Brand | Samsung 3030 SMD |
| CRI | >80 | |
| Color Temperature (CCT) | 2700K-7000K | |
| Luminous Flux | 22000lm±5% | |
Luminous Efficiency | 110lm/w | |
| Beam angle | 15°/30°/60°/90°/120°/150° | |
| Others | Lifetime | 50,000Hr |
| Operating temperature | -40℃~50℃ | |
| Warranty | 5 years | |
| Materials | AL housing+tempered glass +AL board | |
| Installation | Suspending | |
| Application | Industry, warehouse, station, gymnasium | |
Series Products of Round ufo led highaby lighting 200w dimmable ufo highbay ip65
Item No. | Input Voltage | Power | LEDs | Luminous Flux | Luminous Efficiency | CRI | PF | IP rating |
NGE-HB03-50W | AC90-305V | 50W | 60pcs | 5500lm±5% | 110lm/w | >80 | >0.95 | IP65 |
NGE-HB03-80W | AC90-305V | 80W | 70pcs | 8800lm±5% | 110lm/w | >80 | >0.95 | IP65 |
NGE-HB03-100W | AC90-305V | 100W | 100pcs | 11000lm±5% | 110lm/w | >80 | >0.95 | IP65 |
NGE-HB03-120W | AC90-305V | 120W | 120pcs | 13200lm±5% | 110lm/w | >80 | >0.95 | IP65 |
NGE-HB03-150W | AC90-305V | 150W | 150pcs | 16500lm±5% | 110lm/w | >80 | >0.95 | IP65 |
NGE-HB03-200W | AC90-305V | 200W | 180pcs | 22000lm±5% | 110lm/w | >80 | >0.95 | IP65 |
Application
• Industry
• Warehouse
• Station
• Gymnasium
Item No. | Quantity/Carton | Net weight/Pcs | Gross Weight/ Carton | Carton Size | Notes |
NGE-HB03-50W | 1 | 3.0kg | 3.4kg | 310*310*185mm | Each light packed by one PE bag, and use EPE foam pads in each carton. |
NGE-HB03-80W | 1 | 3.6kg | 4.0kg | 310*310*185mm | |
NGE-HB03-100W | 1 | 5.0kg | 5.6kg | 410*410*210mm | |
NGE-HB03-120W | 1 | 5.3kg | 5.9kg | 410*410*210mm | |
NGE-HB03-150W | 1 | 5.4kg | 6.0kg | 410*410*210mm | |
NGE-HB03-200W | 1 | 5.6kg | 6.2kg | 410*410*210 mm |
NGE Technology Limited, established in 2009, dedicates to R&D, manufacture and sales of LED Lighting. We are specialized in commercial LED lighting and industrial LED lighting, and our main products are Gimbal LED downlight, rectangular LED downlight, LED panel light, LED high bay light and LED tri-proof light.
NGE Technology has more than 120 experienced workers, 15 persons' R&D team and more than 8000 square workshop. It is equipped with auto SMT machines, reflow-soldering machine, integrating sphere and distribution photometer, etc. With expert R&D teams of electronic technology, structure technology, thermal management as well as optics design, NGE develops new LED lighting products every year. And most of our products are UL, TUV, SAA, CE and RoHS approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, Australia, Japan, Middle East and Southeast Asia market now. We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
Welcome to inquiry Round ufo led highaby lighting 200w dimmable ufo highbay ip65.
