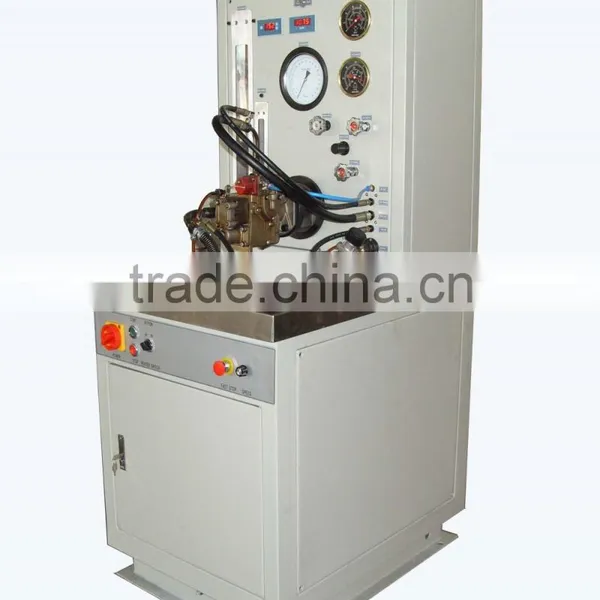

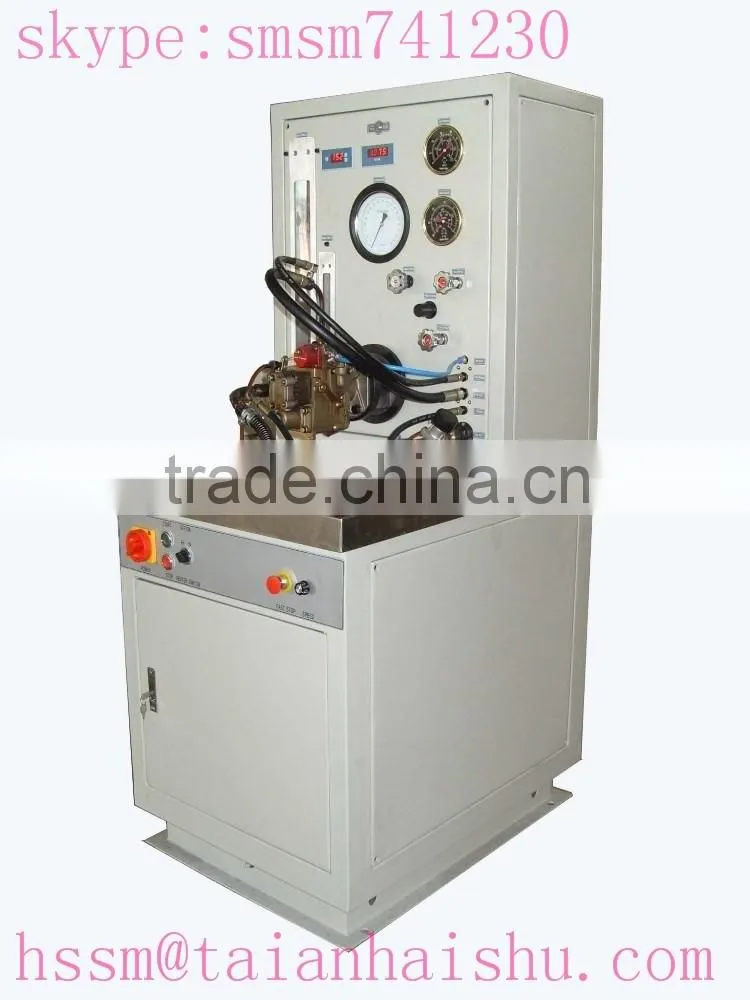

PT300 PT Cummins pumps test bench with the factory manufacturing price

Name: PT300 PT Cummins pumps test bench with the factory manufacturing price
Brand: Haishu
Availability: InStock

FOB Price

USD $15,000 - $18,000 / Set

1 Set(Min.Order)

Supply Ability 30 Set / Sets per Month
Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Haishu
Model Number	PT300	Power	Electronic
Usage	Auto Testing Machine

Product Description

Specifications

HIigh quality and low price PT300 PT Cummins pumps test bench test and calibration for CUMMINS PT fuel pump,

Ⅰ. Introduction

PT300 PT Cummins pumps test bench is special equipment used to provide test and calibration for CUMMINS PT fuel pump, this injection pump adopted the advanced frequency conversion technology to change the speed of the main motor. It has the wide speed range and high measure precision and duplex rotor flow meter. This type test stand fulfills the testing requirement of CUMMINS PT fuel pump. For example: PT(G), PT(G)VS,PT(G)MVS , PT(G)AFC , PT(G)AFC-VS , PT(G)EFC, PT(G)R, PT(H) fuel pump etc.

Ⅱ. Function

1. Testing of gear pump pressure and vacuum test

2. Testing of idle speed

3. Weight assisted pressure test of PT pump

4. Pressure and flow test in every check point

5. Testing of AFC

6. Testing of stop oil supply

7. Rack-travel distance test

8. Testing of the oil return

9. Testing of the ASA valve

Ⅲ. Main technical parameters

Motor power	3KW
Output shaft speed range	0–4000rpm
Fuel tank volume	38L
Fuel	0#diesel or standard oil
Fuel temperature	38±2℃
Fuel pressure	≤ 2.5 Mpa 400 lb/in²
Air pressure	≤ 0.25 Mpa 35 psi
Fuel test calibration flow	75-800Lb/h 800-2200Lb/h
Dimension(L×W×H)	680×935×1730mm
Weight	300kg

Taian Haishu Machinery co.,.ltd workshop
