100lm/w CRI>80 20w, 28w, 38w, 50w, 60w led trunk light
- 30000 Piece / Pieces per Month
- Shenzhen Hong Kong
- T/T Credit Card
Product Details
Type: | Downlight | Certification: | TUV, CE, SAA, UL |
Product Description
100lm/w CRI>80 20w, 28w, 38w, 50w, 60w led trunk light
Product Features of 100lm/w CRI>80 20w, 28w, 38w, 50w, 60w led trunk light
1.High Lumen Samsung SMD LED,100lm/w for whole lighting, CRI >80; Bridgelux COB LED;
2.Excellent Driver wide AC100V~240V,PF>0.90,low THD<15%.
3.Ultra-low light degradation,compliance with the U.S.Energy Star requirements,L70>35,000hrs.
4.Good thermal structure design, the fully released, lamp life last longer than 35,000hrs.
5.Dimmable and emergency version available for choice.
6.Three years warranty, CE,RoHS, SAA approved.
7.Direct replacement for traditional adjustable downlight,popular in shop,supermarket.
Technical Parameters for 100lm/w CRI>80 20w, 28w, 38w, 50w, 60w led trunk light
Product Name | led downlight |
Item Number | NGE-SMD01-AD38W |
Rated Power | 38W |
Input Voltage | AC100-240V |
Power Factor | >0.9, Lifud driver |
LED Type | Samsung SMD LED |
Luminous Flux | 3500LM±5% |
Color Temperature | 3000-3500K,4000-4500K,5500-6500K |
CRI | Ra>80 |
Product Size | φ195*179mm |
Cutout | φ165mm-185mm |
Adjustable Angle | 60° |
Main Materials | Aluminum alloy and tempered glass |
Working Temperature | -40~60°C |
Lifetime | >50,000hours |
Warranty | 3 years |
Certificate | CE,RoHS,SAA |
Trade Info
Trade Terms | EXW, FOB, CIF |
Payment Terms | T/T, Paypal, West Union, L/C |
Payment Condition | in advance for samples; 30% deposit and 70% balance paid before shipment |
Packing | Neutral carton |
Delivery Time | 5-7 working days for samples; 15-20 working days for formal bulk order |
Shipping | By sea, by air, by express |

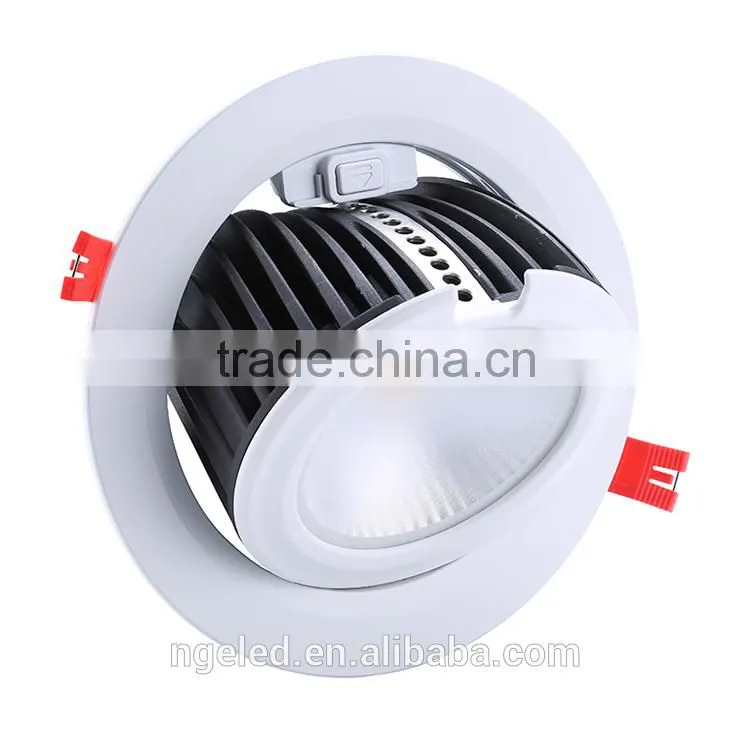

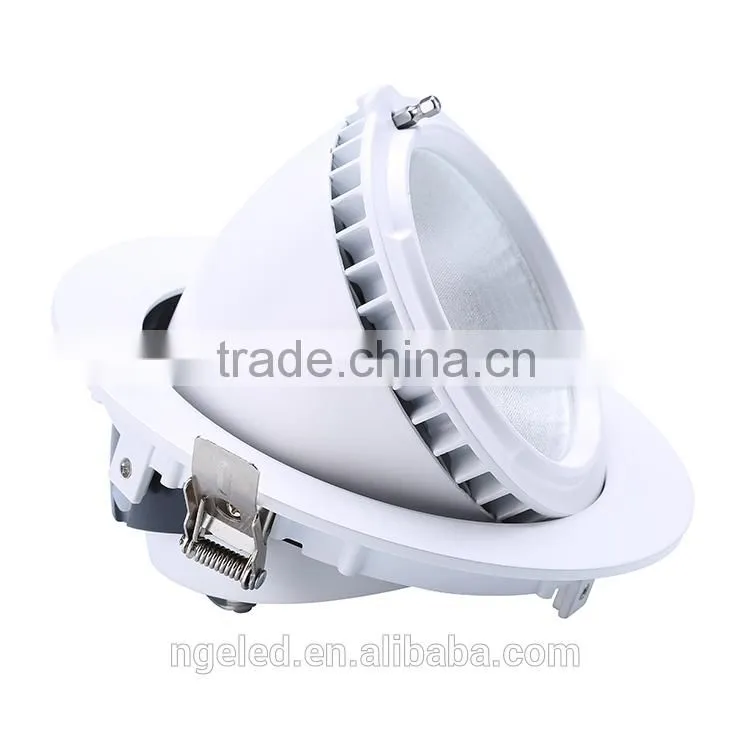

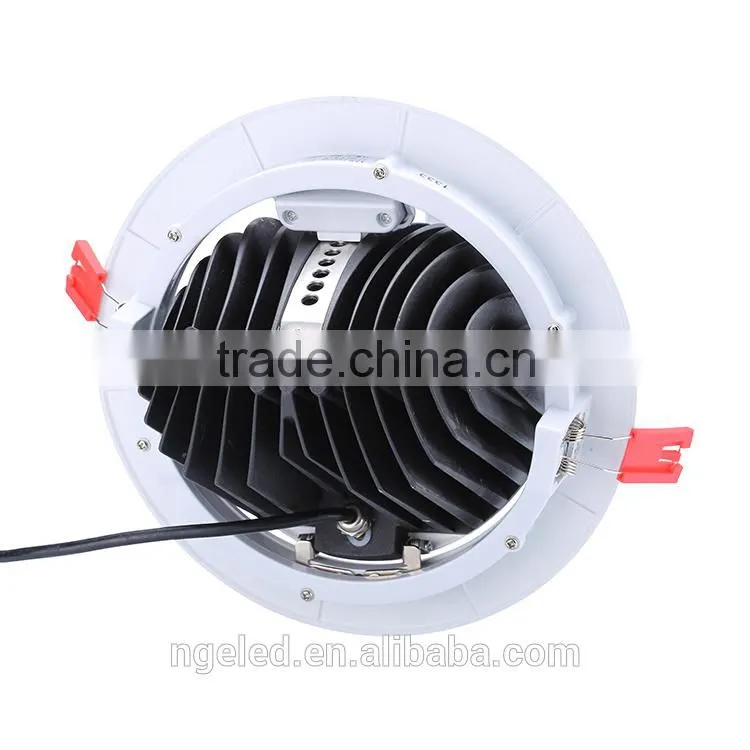

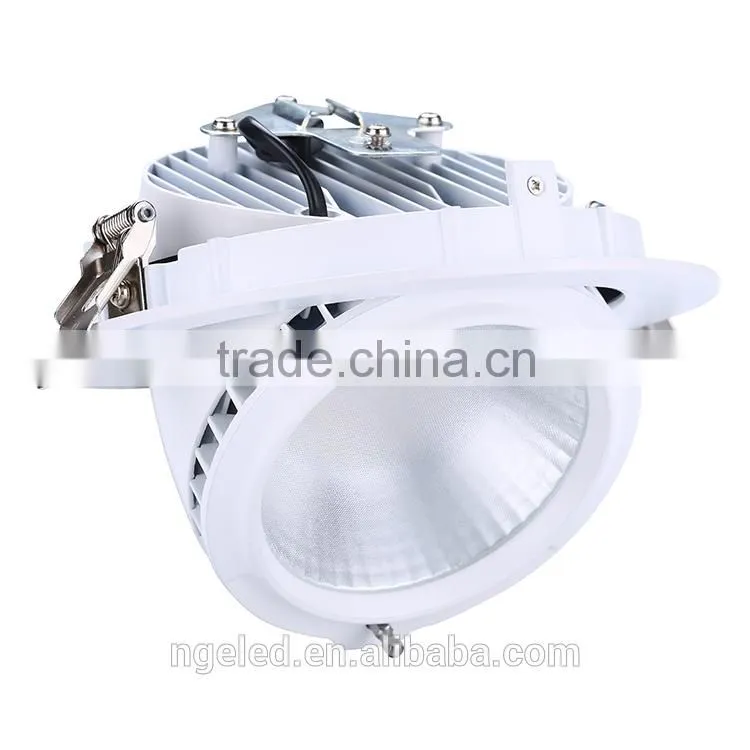

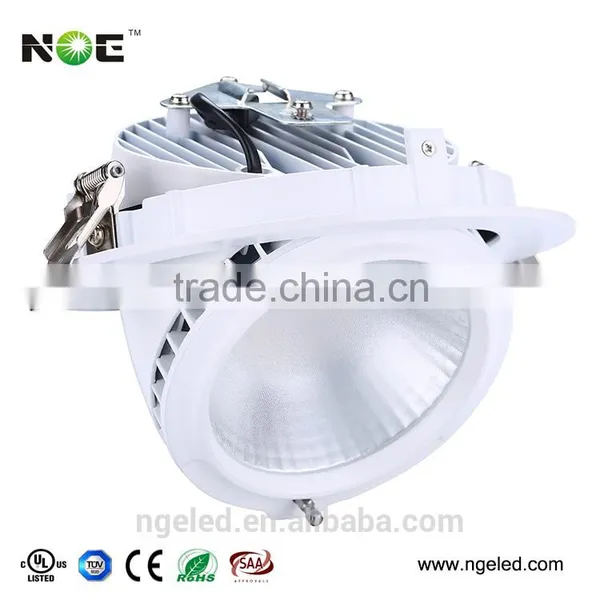

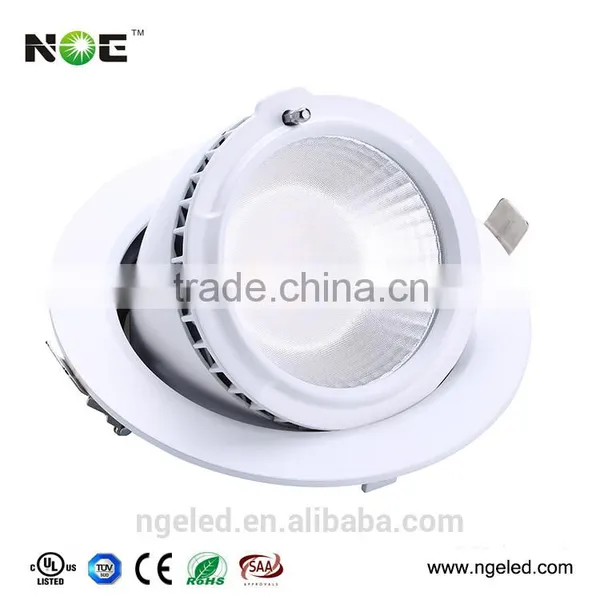

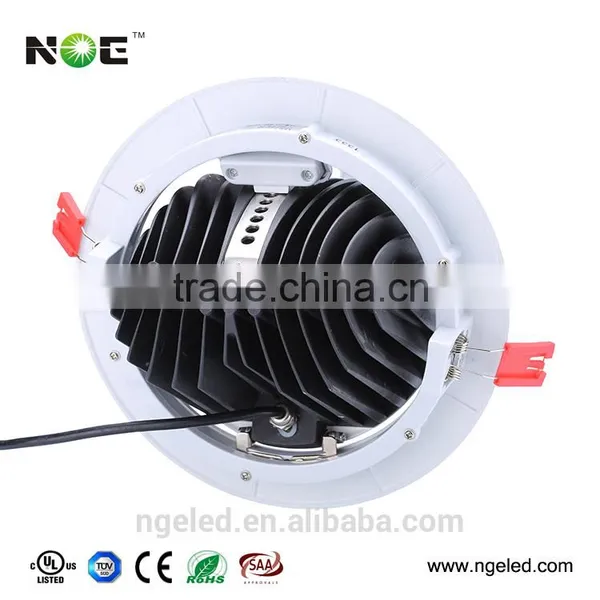

Product Pictures for 100lm/w CRI>80 20w, 28w, 38w, 50w, 60w led trunk light

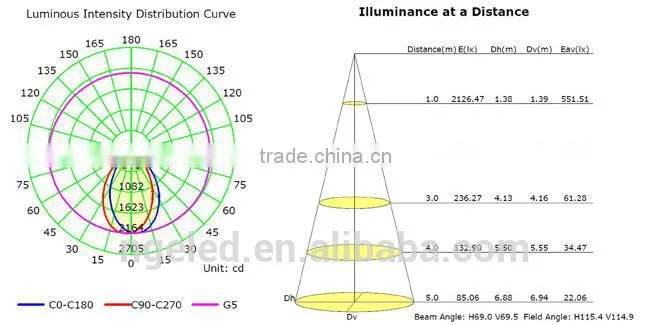

Test Report for 100lm/w CRI>80 20w, 28w, 38w, 50w, 60w led trunk light

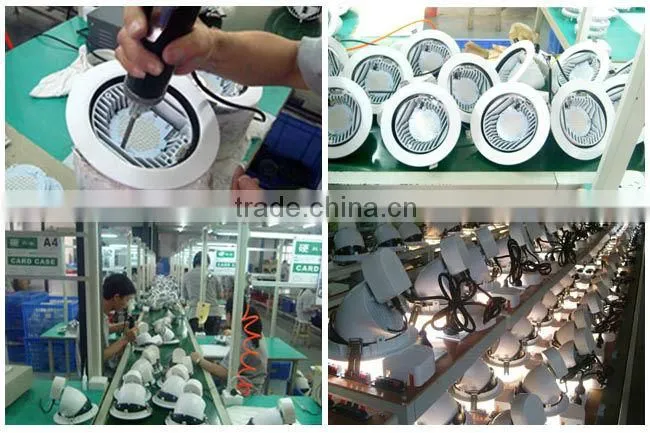

Production pictures for 100lm/w CRI>80 20w, 28w, 38w, 50w, 60w led trunk light
Packing information for 100lm/w CRI>80 20w, 28w, 38w, 50w, 60w led trunk light
Series Products for 100lm/w CRI>80 20w, 28w, 38w, 50w, 60w led trunk light
Model No. | Specification | ||||||||
Power | Input Voltage | Color Temperature | Luminous flux | Size | Cutout | Power Factor | LED Brand | CRI | |
NGE-SMD01-AD20W | 20W | AC100~240V 50~60Hz | 3000k-3500k | 1850lm±5% | φ195*179mm | φ165mm-185mm | >0.90 | Samsung SMD LED | >80 |
4000k-4500k | |||||||||
5500k-6500k | |||||||||
NGE-SMD01-AD28W | 28W | AC100~240V 50~60Hz | 3000k-3500k | 2550lm±5% | φ195*179mm | φ165mm-185mm | >0.90 | >80 | |
4000k-4500k | |||||||||
5500k-6500k | |||||||||
NGE-SMD01-AD38W (Hot) | 38W | AC100~240V 50~60Hz | 3000k-3500k | 3500lm±5% | φ195*179mm | φ165mm-185mm | >0.90 | >80 | |
4000k-4500k | |||||||||
5500k-6500k | |||||||||
NGE-SMD01-AD50W | 50W | AC100~240V 50~60Hz | 3000k-3500k | 4950lm±5% | φ250*144mm | φ210mm-230mm | >0.90 | >80 | |
4000k-4500k | |||||||||
5500k-6500k | |||||||||
NGE-SMD01-AD60W (Hot) | 60W | AC100~277V 50~60Hz | 3000k-3500k | 6000lm±5% | φ250*144mm | φ210mm-230mm | >0.90 | >80 | |
4000k-4500k | |||||||||
5500k-6500k |
Manufacturer of 100lm/w CRI>80 20w, 28w, 38w, 50w, 60w led trunk light
NGE Technology Limited is a professional indoor LED lighting manufacturer and solutions provider.
We are specialized in the LED shop lighting, office Lighting, commercial lighting, LED industrial lighting and residential lighting research and manufacture. Especially, LED shop light, LED tube, LED Panel light, LED downlight, LED high bay, LED floodlight and LED bulb products are most popular products for us.
NGE Technology has more than 180 experienced workers,15 persons' R&D team and 8000 square workshop. It is equiped with auto SMT machines, reflow-soldering machine, integrating sphere, goniophotometers machine and inspection instruments, etc.
NGE Technology endeavors to develop new LED lighting products. Our expert R&D team have abundant knowledge of electronic technology, structure technology, thermal management as well as optics design. Almost all of our products are CE certificated and RoHS compliant, and our LED Shop light are UL, PSE, SAA and C Tick approved.
NGE Technology has an excellent overseas sales and after-sales team. NGE products are very popular in Europe, America, Australia, Japan, Middle East and Southeast Asia market now.
We have successfully achieved over 50% annual growth in the turnover in the past 3 years. Let's work together to devote to the new, green and eco-friendly cause for the world.
Welcome to visit our website .
