Home > Products > pipe threading lathe > Low price cnc pipe threading Lathe CKG1319E For Sale with CE cerfication

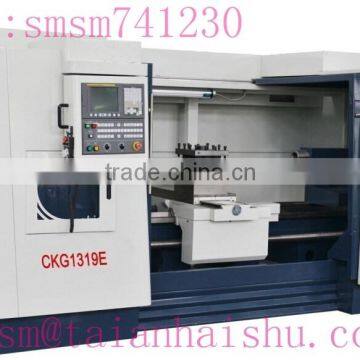

Low price cnc pipe threading Lathe CKG1319E For Sale with CE cerfication

FOB Price

USD $30,000 - $70,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Automatic
Max. Swing Diameter	800	Place of Origin	Shandong, China
Brand Name	Haishu	Model Number	CKG1319E
Voltage	380v 50hz	Power(W)	15KW
Dimension(LWH)	370018001760	Weight	4800
Certification	CE	After-sales Service Provided	Overseas third-party support available

Low price cnc pipe threading Lathe CKG1319E For Sale with CE cerfication

Main features:

Overall casting bed,rail width 660mm, heavy weight, good rigidity and stability;

Three gears mechanical transmission, frequency stepless speed regulation.

Standard configuration

CNC system :GSK980 TDc,

The spindle three gears frequency conversion speed,

Front and rear three-jaw manual chuck,

Vertical four-position electric turret,

With tailstock,

Automatic lubrication system,

Turning cooling system.

Select Configure

CNC system :KND, Siemens, Fanuc,

Electric chuck, pneumatic chuck, hydraulic chuck,

Horizontal six-position electric turret,

brack

Repeatability positioning accuracy	mm	0.011
Turret form		Four-station ,Vertical
Tool section size	mm	40×40
Tailstock quill diameter	mm	Φ100
Tailstock quill stroke	mm	300
Tailstock sleeve taper		MT5
Machine weight	Kg	4800	5000	5600
Outline size (L × W× H)	mm	3700×1800×1760	3700×1800×1760	3700×1880×1860
CNC system		(standard):GSK980 (optional):FANUC SIEMENS

.our NEW CE

Our workshop
