Jersey Roll Heat Transfer Printing Machine
US$ 7,000 - 11,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Oil Heating Roller Sublimation Machine for GarmentUS$ 7,000 - 11,000MOQ: 1 Set -
Oil Heating Roller Sublimation Heat Press Machine for GarmentUS$ 7,000 - 11,000MOQ: 1 Set
-
Roller Dye Sublimation Heat Press MachineUS$ 5,000 - 11,000MOQ: 1 Set
-
Roller Press MachineUS$ 7,000 - 11,000MOQ: 1 Set
-
Energy Saving Roller Sublimation Heat Press MachineUS$ 5,000 - 11,000MOQ: 1 Set
Condition
New
Plate Type
Flatbed Printer
Place of Origin
Guangdong, China
Brand Name
INV
Model Number
INV-RR01
Usage
Other, Garment
Automatic Grade
Automatic
Voltage
220V/380V
Gross Power
14.4KW
Dimensions(L*W*H)
240*105*150CM
Weight
1100 kg
Certification
CE Certificate
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Product Application

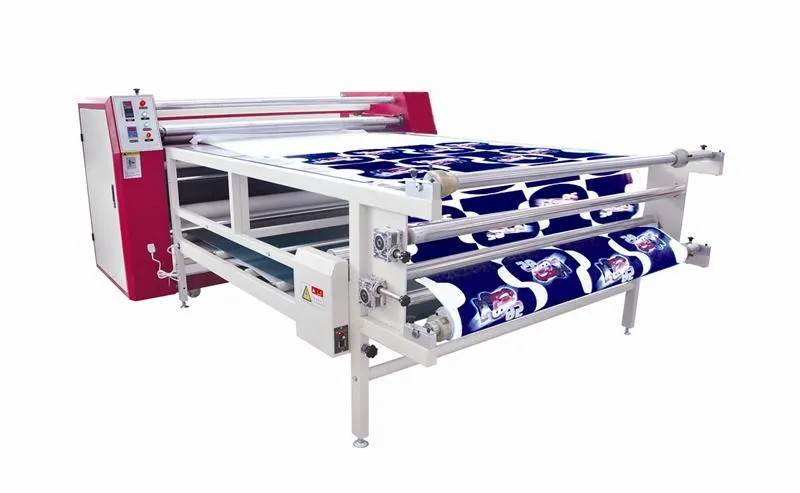

Oil heating roller sublimation heat transfer machine for garment special for mass printing production for garment, textile, fabric, pillow case, bedsheet, curtain, etc big width items heat transfer printing.
Main Features
1. adopt imported American "Dupont" brand blanket, thick is 10mm, transfer results is very good, long life.

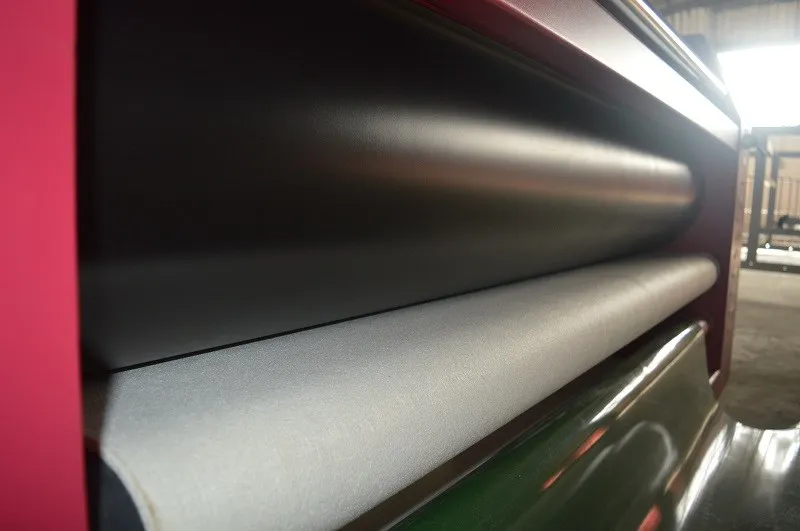

2. adopt 100% seamless oil drum, the inner circle and out circle of roller is precision lathe, out circle precision polish,and plating teflon after, for sure each point is the temperature. Taiwan stainless steel oil heating tube, can rise the temperature to 200 degree within 45 min.

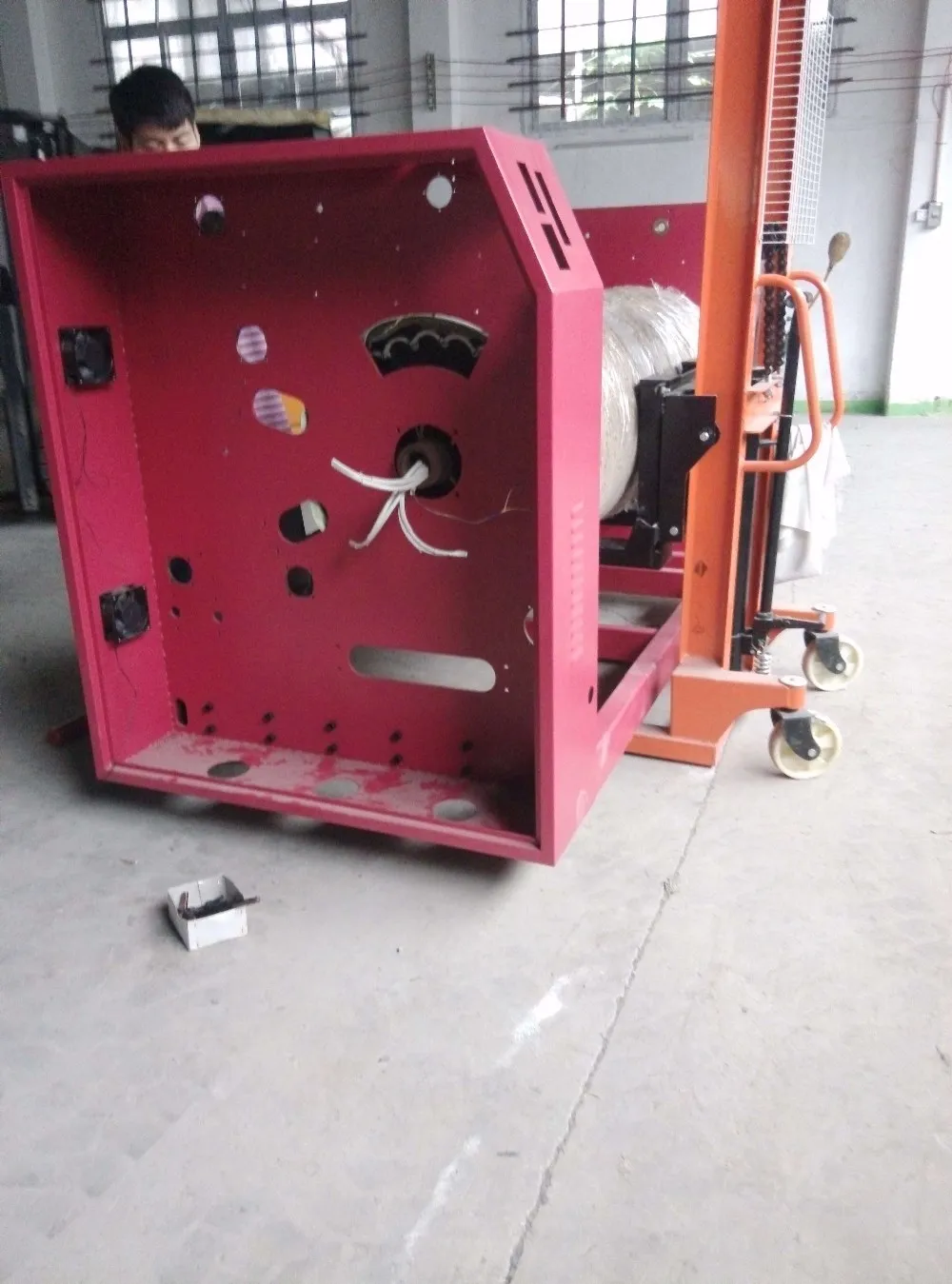

3. main panel adopt 10mm thick steel plate, wire-electrode cutting,high precision, lower deviation.

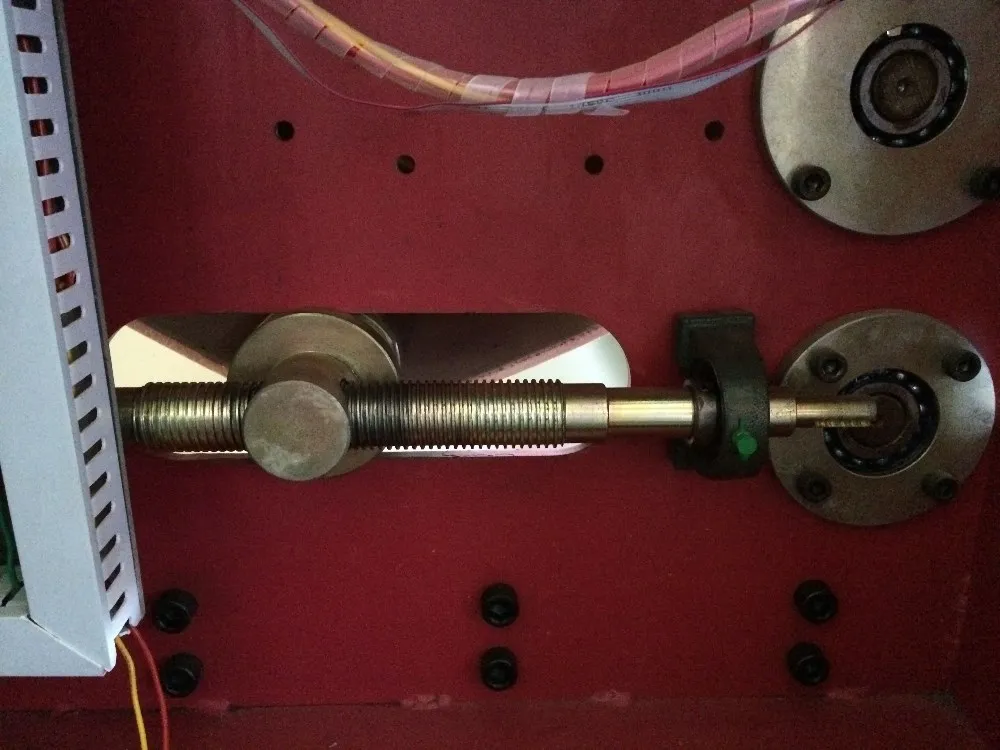

4. each adjust axis are precision lathe, polish and platinum plating, the deviation is controled with in 2 c, make sure the blanket working without space moved

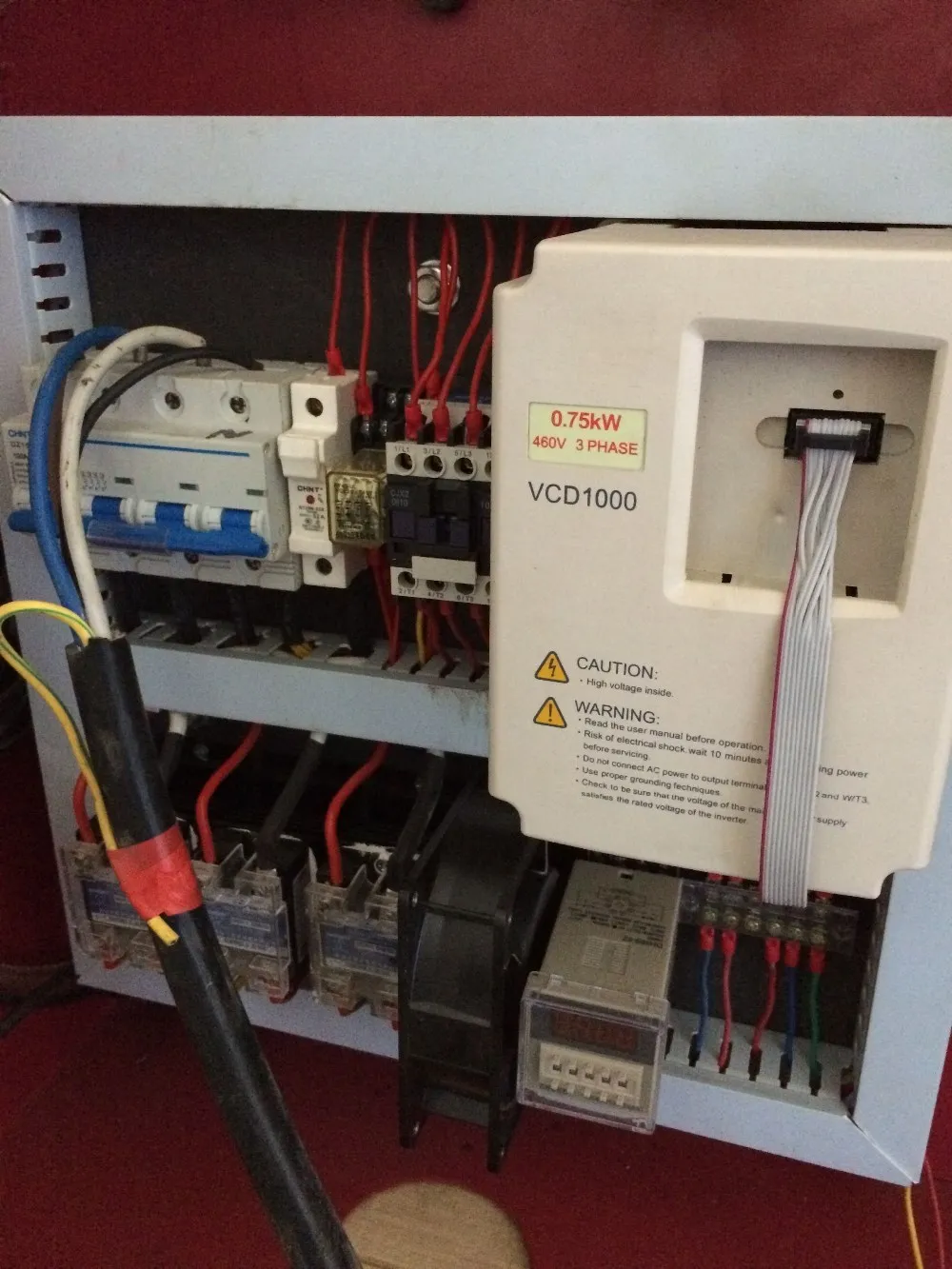

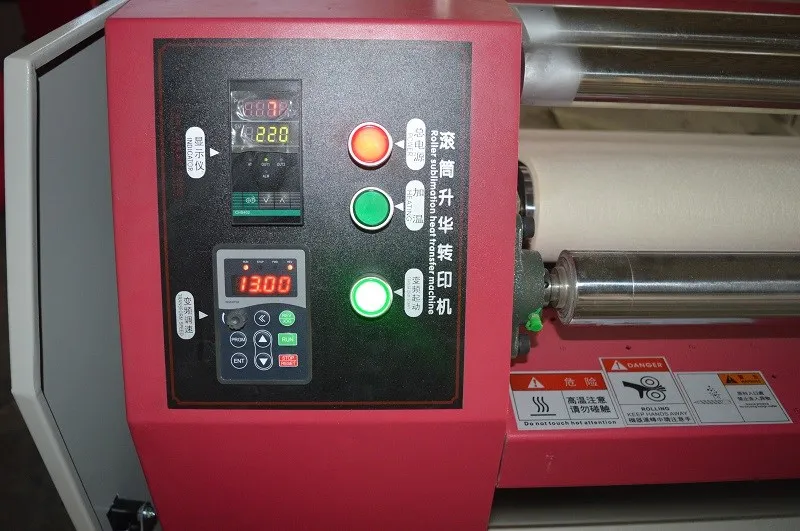

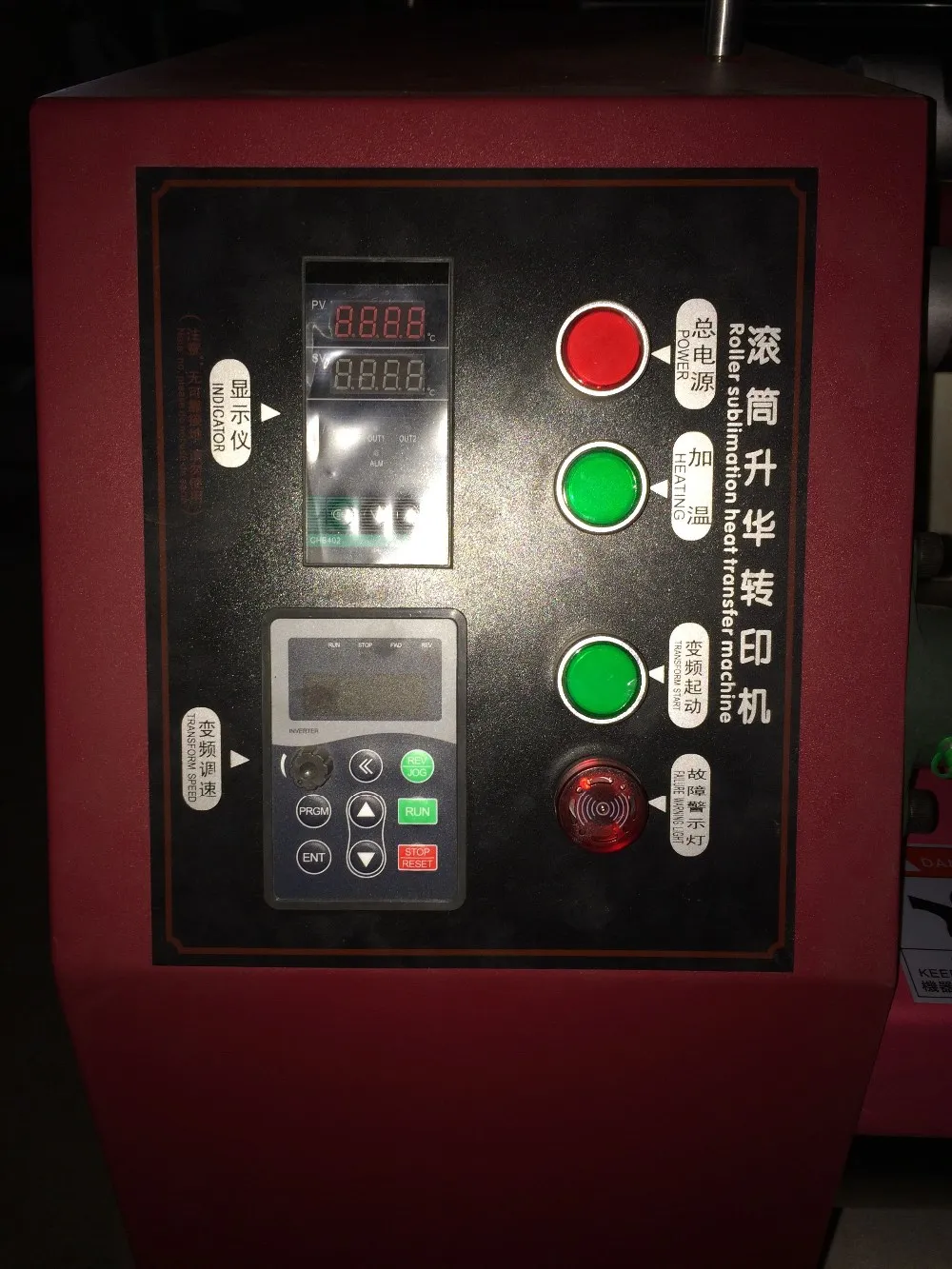

5. electric control: high quality temperature and time digital display, more accuraty.
6. imported speed control frequency conversion motor, can adjust the speed according to different material.
7. carbon brush conductive heating, conductive performace is more stable and safty..
8. blanket automatic separation: when power cut or shut down, blanket automatically separted with roller, which can much more protect the blanket, extend its life.

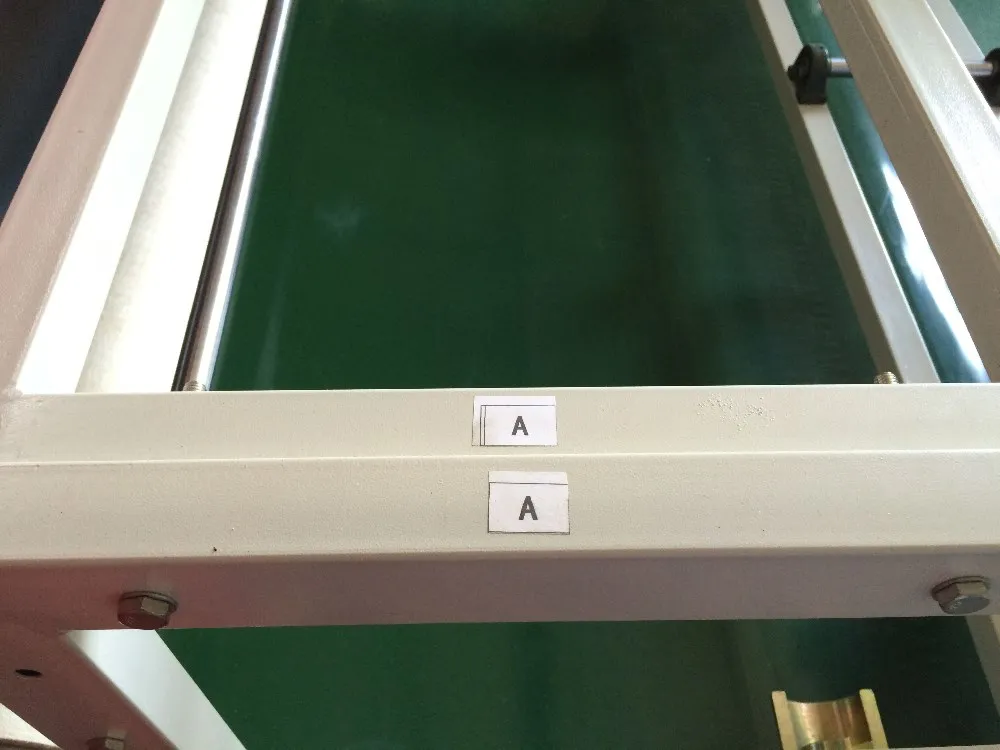

9. conveyor belt transmission function: after the product been heat transfer, through the conveyor belt to the behind the working plane, much more save labor, high working efficiency.
2. adopt 100% seamless oil drum, the inner circle and out circle of roller is precision lathe, out circle precision polish,and plating teflon after, for sure each point is the temperature. Taiwan stainless steel oil heating tube, can rise the temperature to 200 degree within 45 min.
3. main panel adopt 10mm thick steel plate, wire-electrode cutting,high precision, lower deviation.
4. each adjust axis are precision lathe, polish and platinum plating, the deviation is controled with in 2 c, make sure the blanket working without space moved
5. electric control: high quality temperature and time digital display, more accuraty.
6. imported speed control frequency conversion motor, can adjust the speed according to different material.
7. carbon brush conductive heating, conductive performace is more stable and safty..
8. blanket automatic separation: when power cut or shut down, blanket automatically separted with roller, which can much more protect the blanket, extend its life.
9. conveyor belt transmission function: after the product been heat transfer, through the conveyor belt to the behind the working plane, much more save labor, high working efficiency.

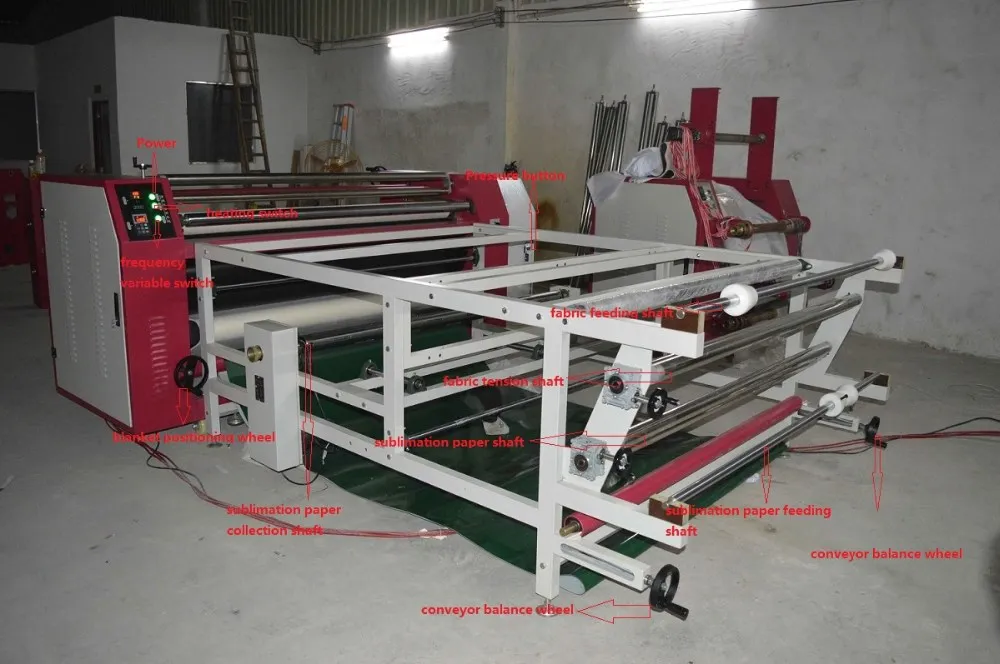

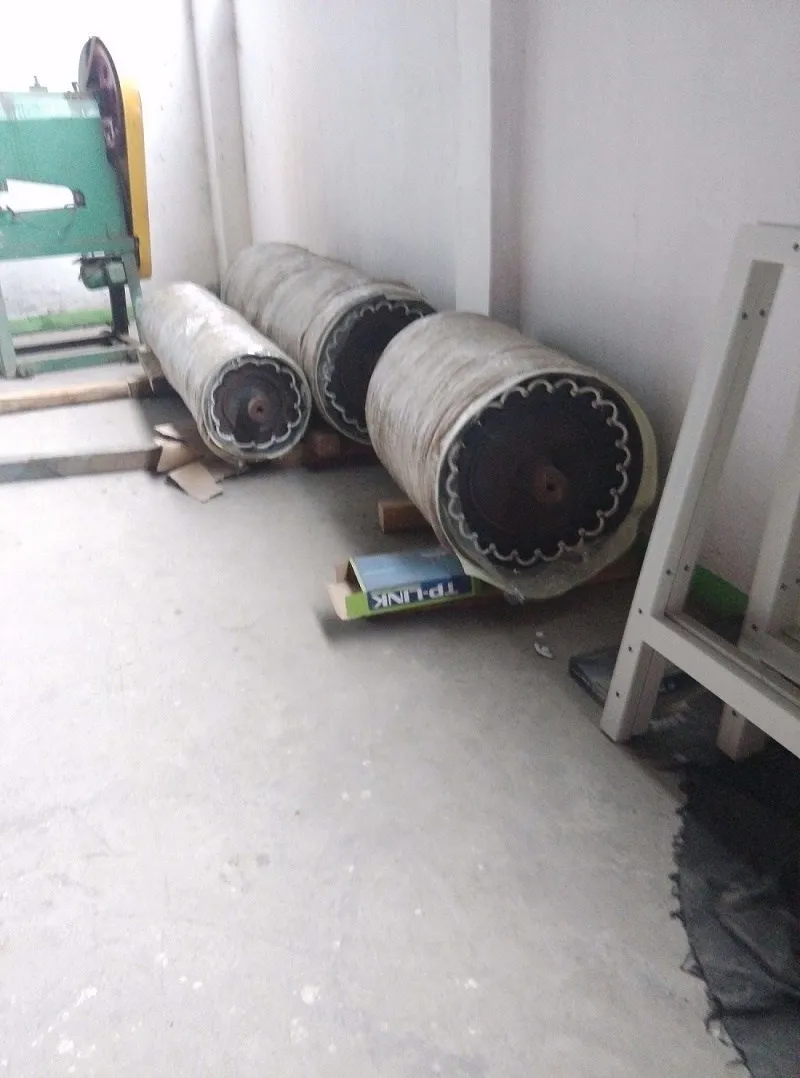

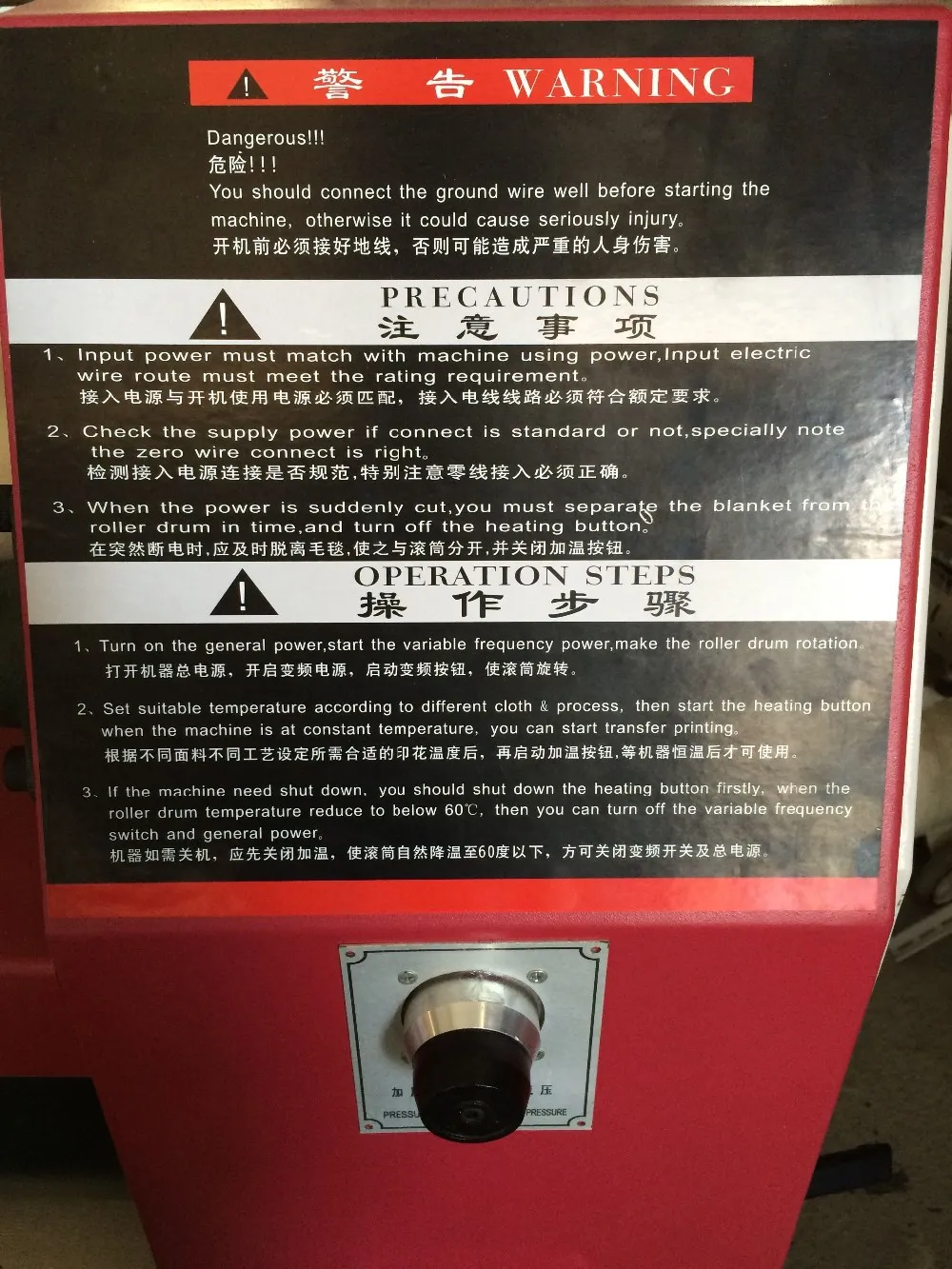

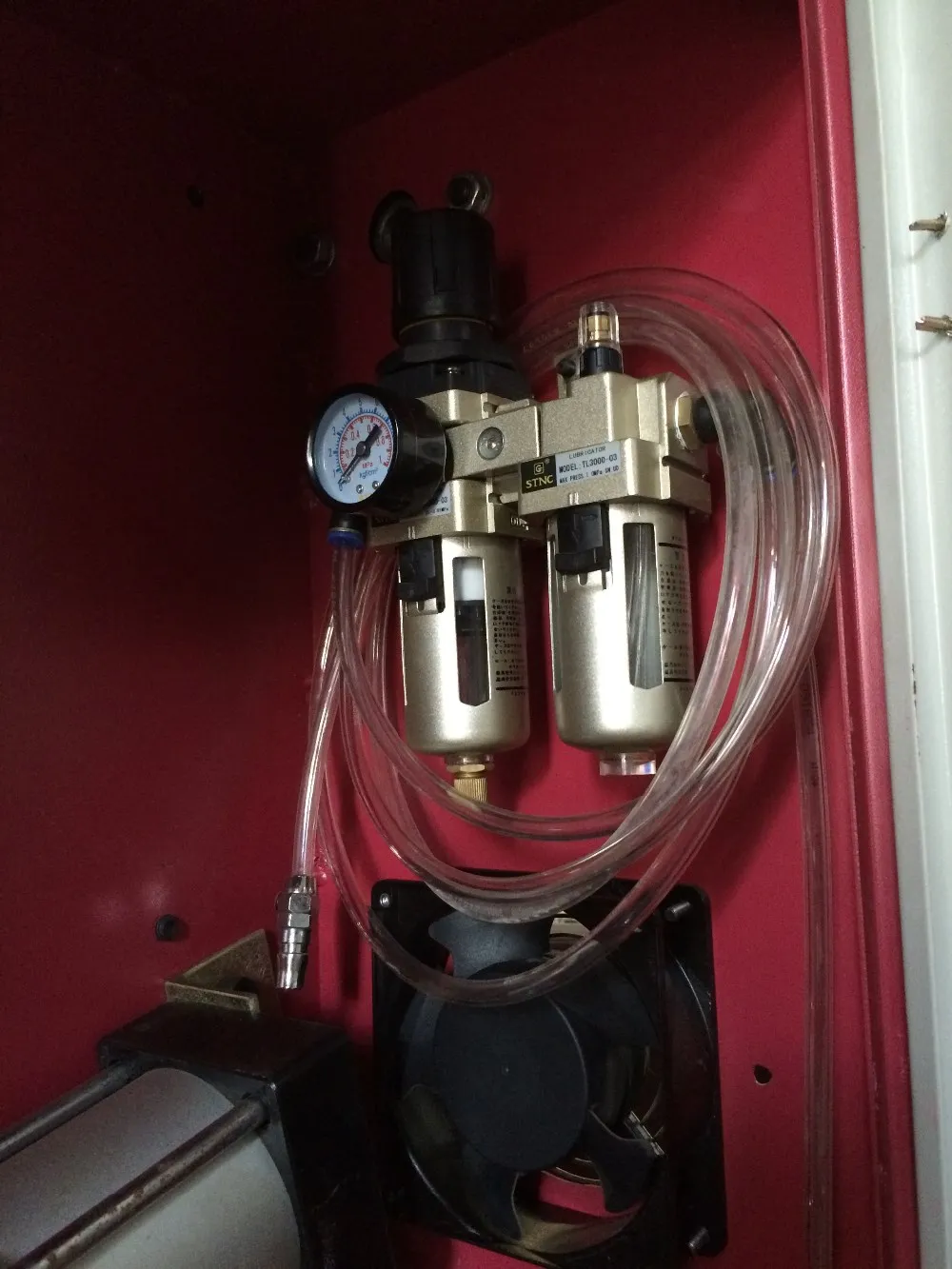

Parts Photos
Detailed Images
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

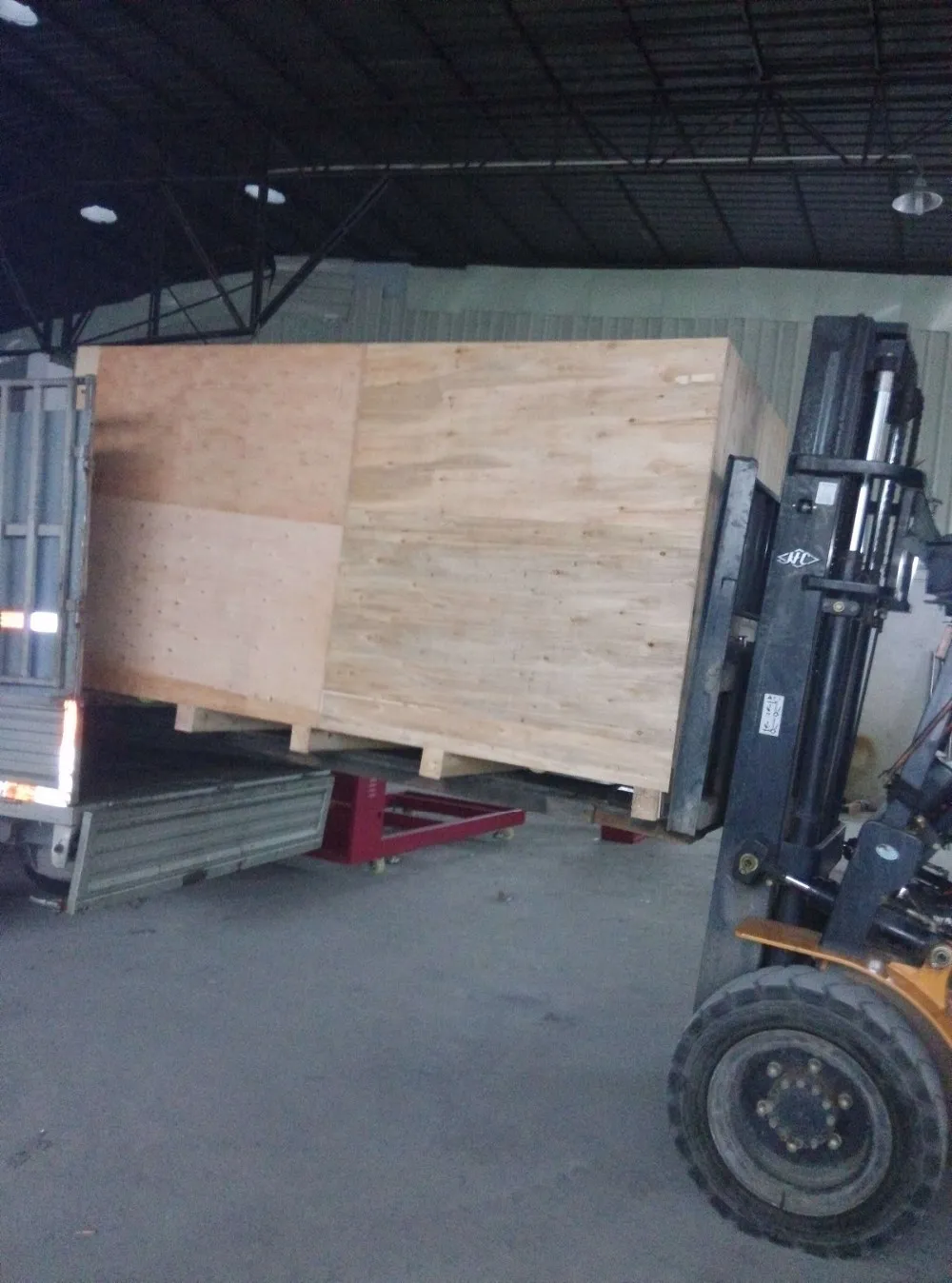

Packing & Delivery
