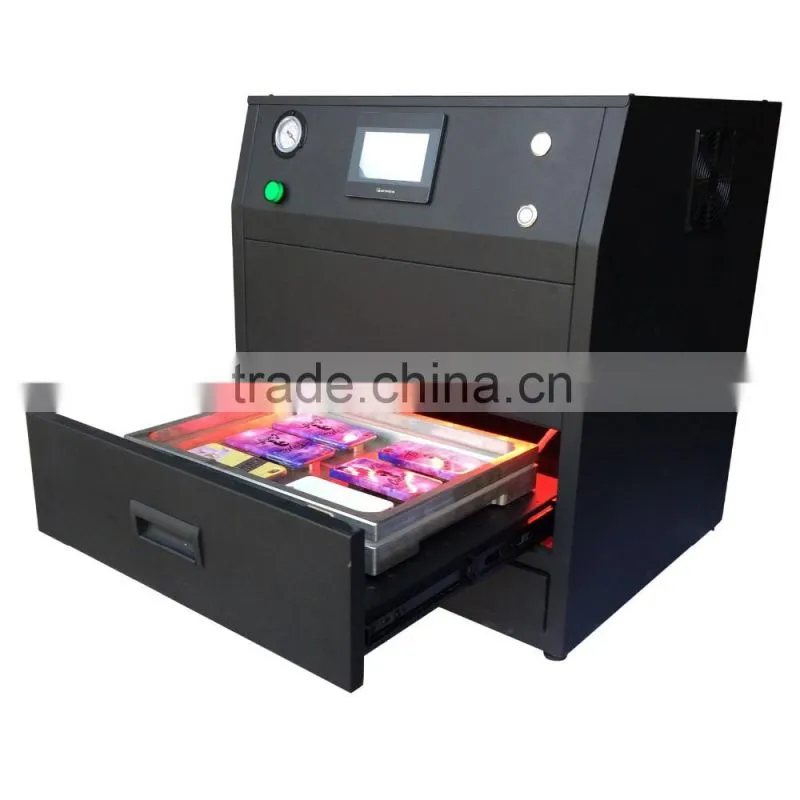

Infrared Heating Full & perfect transfer printing Phone case touch screen 3D sublimation machine
FEATURES & SPECIFICATIONS:

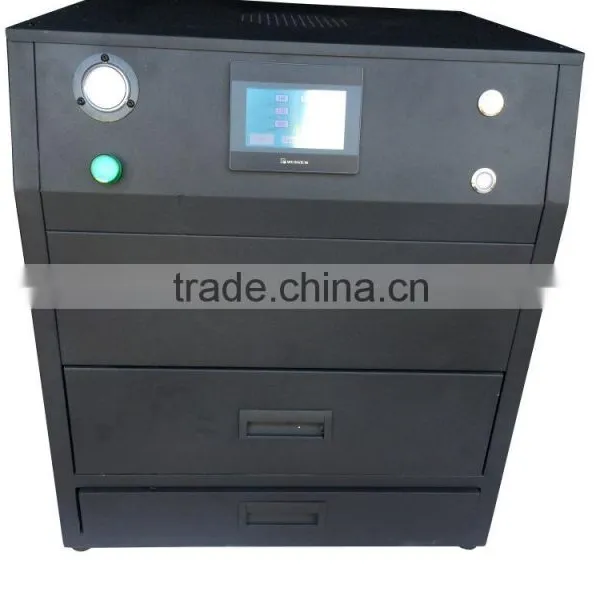

♦ Vacuum Gauge: Normal working pressure display at -0.08 to -0.094 MPA.
♦ Indicator: Machine normal working, the light is off, when it finished working, it's on. this indicator palys a role to remind.
♦ Touch screen + PLC: 1. Set the temperature, time, film preheating time and 8 languages for one key operation, easy and conevenient. 2. Display temperature, time. 3. PLC switch power controller, make sure the temperature more stable and accurate.
♦ Vacuum switch: Press this button or "start" button on the touch screen, which can start the vacuum pump working.
♦ Power switch: Humanization design and convenient for setting.

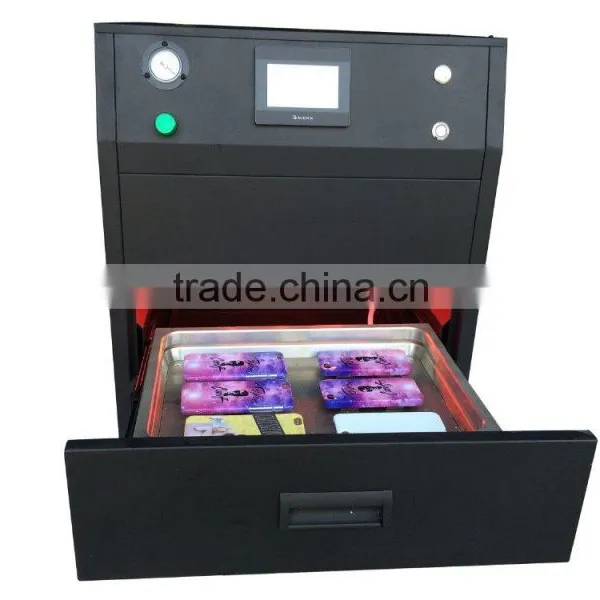

♦ Working layer: Configure with an alloy aluminum & CNC made A3 tray, also it is support A5 tray. also configure with a high quality silicone sucker, which can be resist high temperature (300 clesius degree), thers is no need to change it in 2-3 years.
♦ Jigs preheating layer: For jigs preheating, much save the the jig preheating time when you change other model of phone case, improve your production effecient.
Infrared Heating Full & perfect transfer printing Phone case touch screen 3D sublimation machine
parts detail photos:

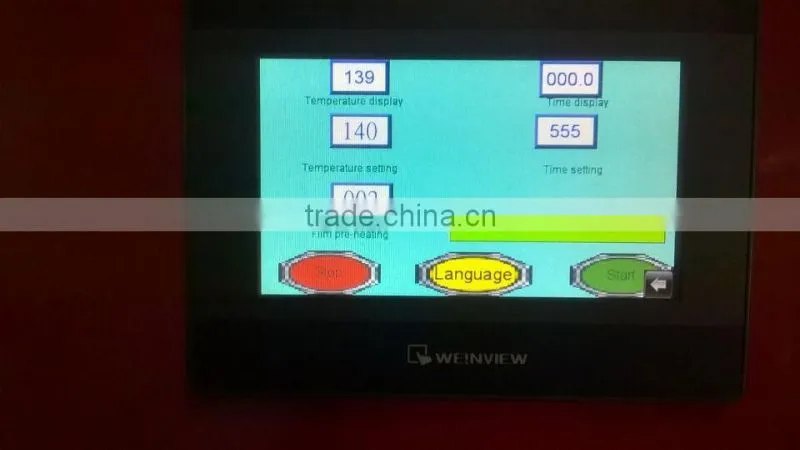

Touch scree display: Here you can easy set the temperature, time, and film preheating time. also it along with 8 languages, they are: Chines, English, Spanish, Portugese, French, Germany, Italian, and Turkish, also can pre set the language according to your Language, make you and your client without trouble in operating this machine.

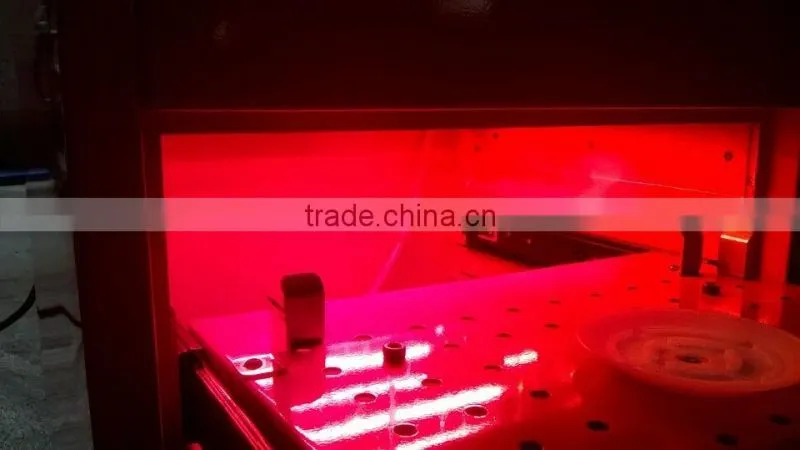

Infrared heating: which is the most advanced heating way, compare with the normal heating tube, its feature is the temperature is much stronger penetrability, transfered image color is much more clearly, and temperature distribute more accurate and stable.
Vacuum sucker: The material of sucker is slilicone, which can beat more than 300 celsius degree without any deformation, due to its long life, so if it is not man-made reason, it can be used 2-3 years.

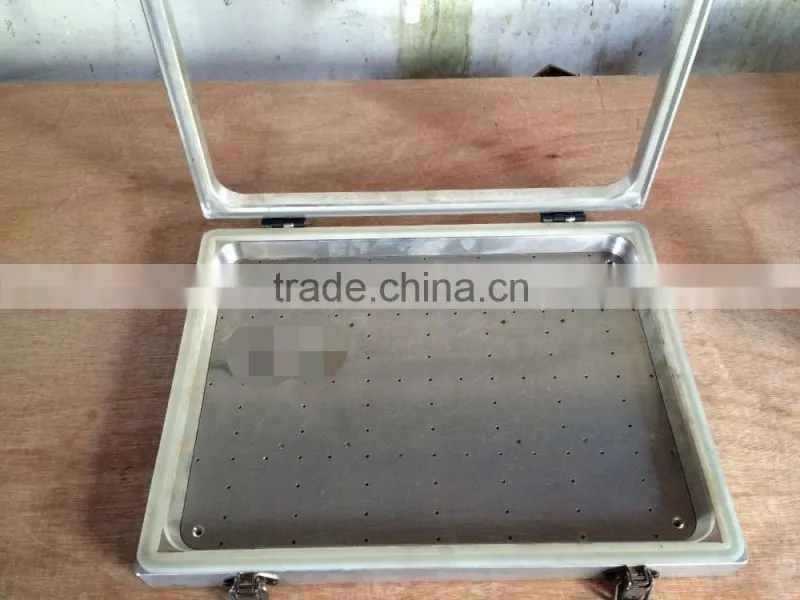

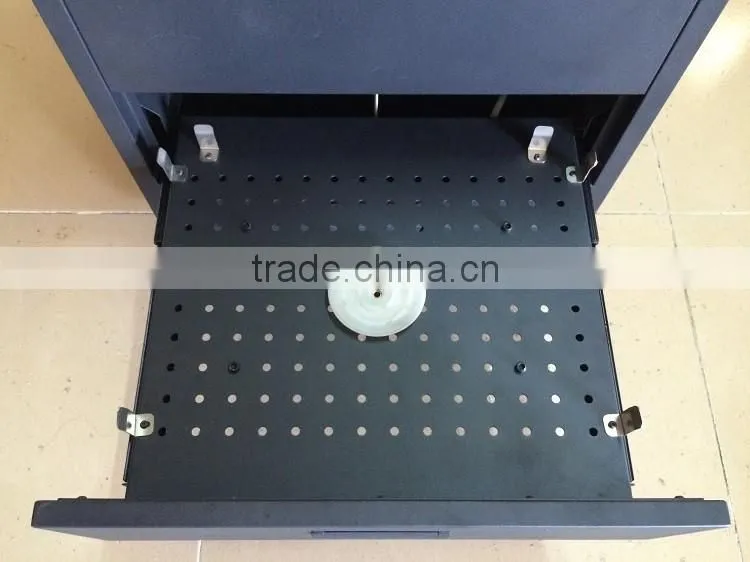

A3 tray: The material of A4 tray is made by #7075 aluminum alloy,which is for airplane, satellite etc parts, costs very high, and made by CNC precision lathing, all holes was meticulous design, unlike other factories machine, the tray made by mould open casting, which will easy leak the air after long time using.

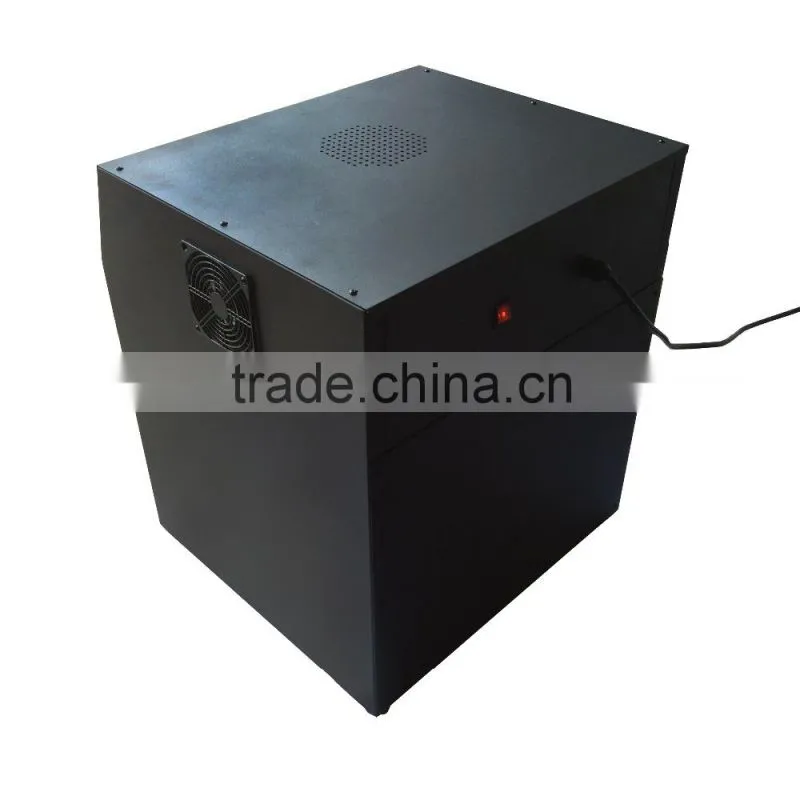

Fans: side and back fans which can quickly cooling the machine surface heat, keep appropriate temperature of the body. another big power fan also built in the middle top of the machine, this design will have an another very important function --hot air circulation, which can make sure the each part of inside of machine temperature is even, transfer printing results is much more better.

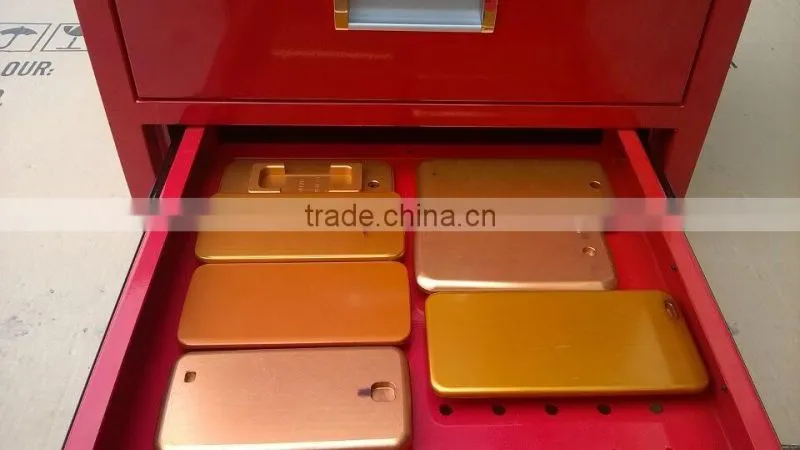

Jigs preheating layer: this layer suit for phone case, Ipad mini, Ipad 2/3/4/air jigs preheating, when you want change other model jig, you don't need cost more 30 minutes to preheat, which can greatly save your time, improve working effecient.
Infrared Heating Full & perfect transfer printing Phone case touch screen 3D sublimation machine operation instructions:
First step: Start the machine, set temperature 145-150 C, set time according to the image color dark or light, for light color, set around 480s, for dark color, set around 600s as suggestion.
Second step: Put the tray and jigs into machine for preheating 30 minutes.
Third step: Printed film need dry in 10 minutes, make sure the sublimation ink is enough dry. tips: printed film put into dry oven, but must make sure its flat without any wrinkle, otherwise the film can not use. or we suggest use fast dry sublimation ink, we suggest use original korea sublimation ink.
Forth step: put the blank film coating phone case on the jig,and put the film to the tray, close the tray and working layer.
Fifth step: Set the preheating time, we suggest 10-15s for preheating. note: our machine with preheating film function, it can reach best transfer results after the film get soften, and also solve the stetch problem by vacuum sucking.
Last step: Wear high temperature gloves to take out the tray and phone case.

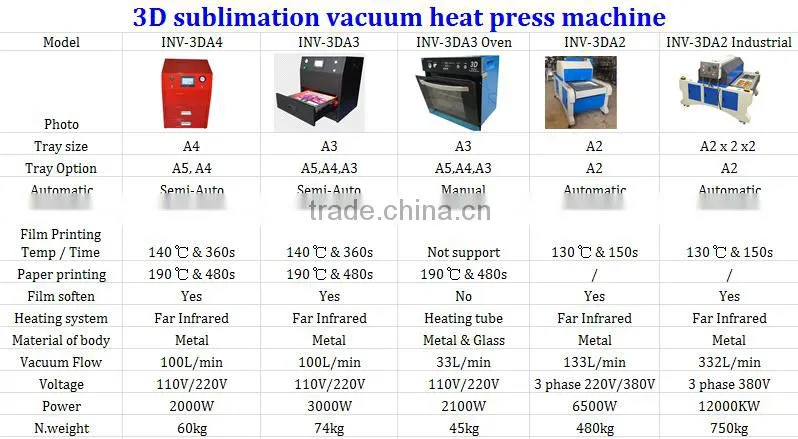

Infrared Heating Full & perfect transfer printing Phone case touch screen 3D sublimation machine Specifications:
Category |
Heat press machine |
|
Touch screen |
Support |
Name |
3D vacuum sublimation machine |
Switch controller |
PLC |
|
Model |
INV-3DA3 |
language |
8 languages |
|
Voltage |
110V/220V |
Vacuum pump power |
150W |
|
heating power |
3000W |
Vacuum flow |
33L/min |
|
Temp range |
0~250℃ |
structure |
steel |
|
Time range |
0~999S |
Appearance dimension |
50x55x64cm |
|
Transfer size |
A3 |
Working layer |
single |
|
Transfer paper |
Film or sublimation paper |
N.weight |
74KG |
|
Printing way |
Curved |
Packing way |
Carton + polystyrene |
|
Preheating function |
Support |
Packing size |
59x69x75cm |
|
Heating way |
Infrared heating |
customized |
Support |
|
Fan |
3 pieces |
Application |
Phone cases, Ipad, Ipad mini |

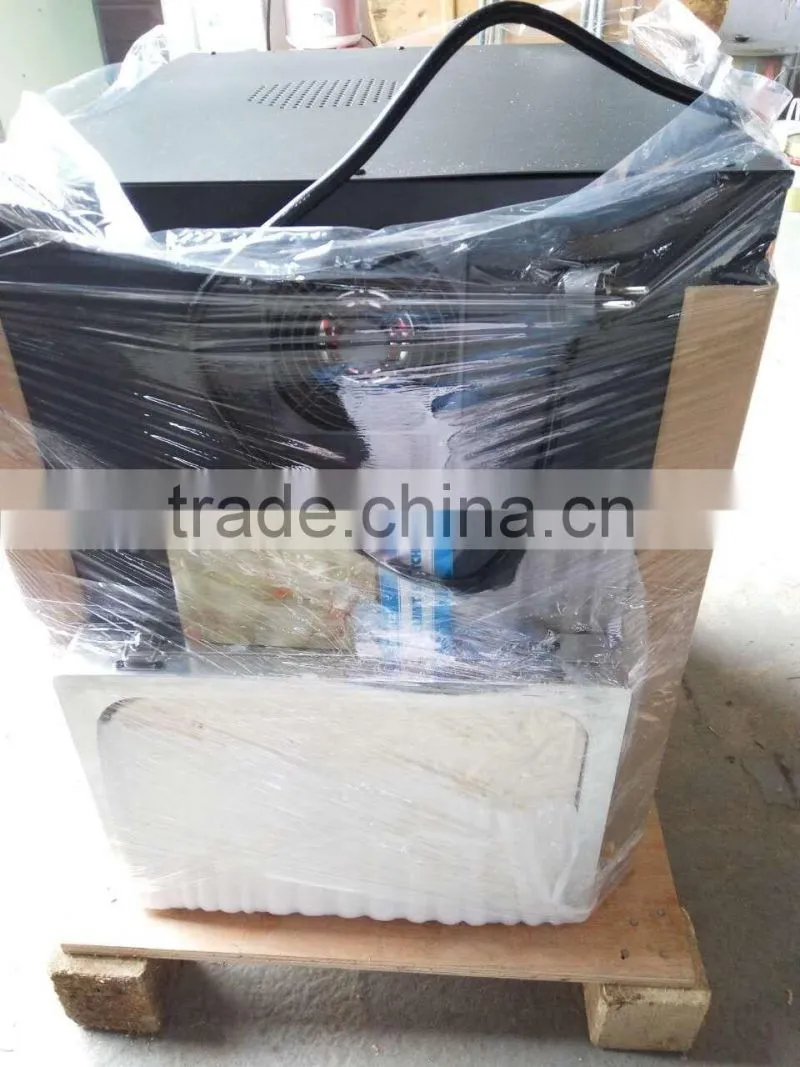

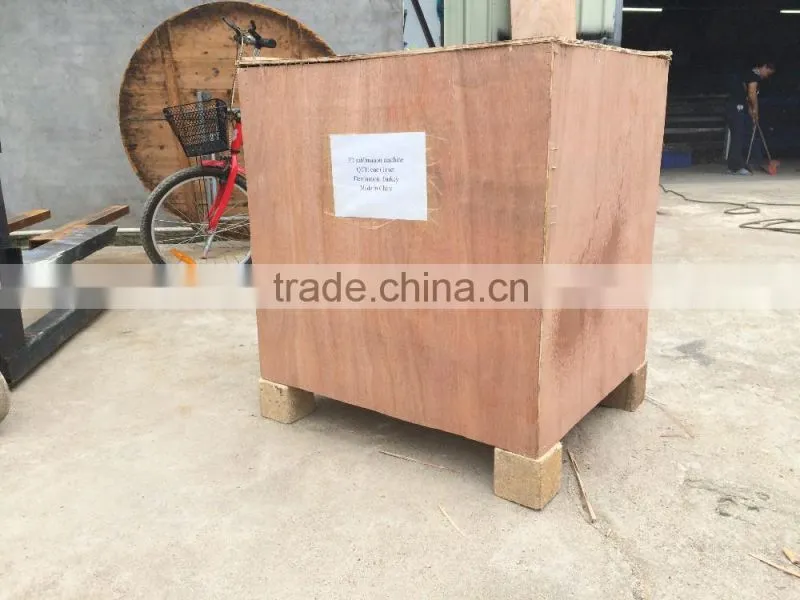

Packing in export wooden case
Shipping by air or by sea depends on customer requirement.
1. We provide 7*24 hours before and after sales service on line.
2. Machine warranty is one year, during the warranty, we free shipping the broken parts.
3. Life long time technical support.
♦ Q: How can I make sure you are the real manufacturer of the machine?
A: We could send you all our company certifications, also send photos of our factory, if require, we could video talk to you.
♦ Q: How to solve the machine problem once we meet?
A: Online solve: we require description with photos & video, after that we will analysis & confirm the reason why the problem happend. then free send the broken parts to you, teach you how to install it in descripiton with photos & video.
♦ Q: What's your warranty?
A: We provide one year warranty, during the warranty we will free send you the broken parts.
♦ Q: What's your payment terms?
A: If the amount is less than USD5000, we'd like 100% T/T bank transfer in advance. If the amount is more than USD5000, we'd like 50% T/T bank transfer deposit, and the balance 50% paid before delivery.
♦ Q: What's the delivery time?
A: 10 to 15 days depend on order quantity
♦ Q: How to ship the machine?
A: By see or by air, depends on your requirement.
♦ Q: How to install the machine once we receive it?
A: We will send you installation video link for you reference. or we will tell you online if you have anything don't understand.
