100W 50° beam angle led flood light
Overview
CREE/Bridgelux/Citizen/Sharp/Nichia COB chips Available
MEANWELL and INVENTRONICS Led Driver Available
More than 3 different beam angles to satisfy any kind of road requirements
Die-casting aluminum housing with phosphate treatment and power coated finishing, equipped with high luminous efficiency CREE LED source and high efficiency and power factor LED power supply MEAN WELL/ INVENTRONICS. It is the best choice in the energy saving generation.
Product benefits

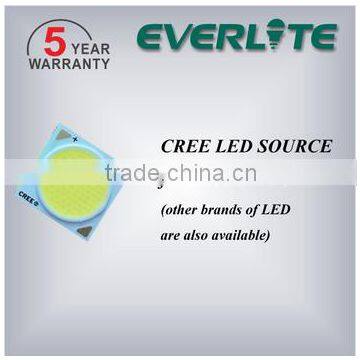

1.LED LUMINOUS SOURCE

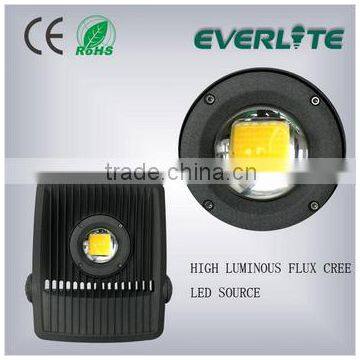

American CREE high power LED luminous source, with LM-80 certificte, providing excellent lumen output and high CRI, is compatible with Bridgelux, Sharp, Nichia COB LED source as well.More information about CREE LED source, please visit .

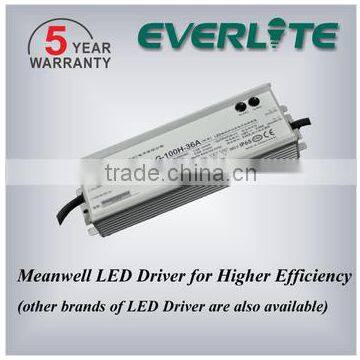

2.LED DRIVER
Full range EVERLITE LED street lights are utilizingMEAN WELL/ INVENTRONICS high end driver, great luminous stability, long lifespan and optional performance status. More information about MEAN WELL LED driver technologies, please visit www.meanwell.com.

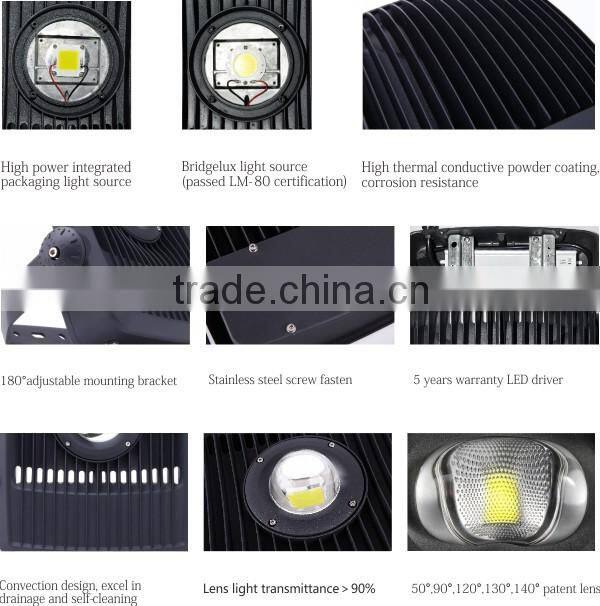

Detailed Fectures
- Die-casting aluminum body with anti-corrosion treatment.
- Highly polished aluminum reflector.
- IP66 rated for external use.
- Equipped with CREE LED chip, generate high luminous flux.
- High efficient and power factor led power supply
- Long life span over 70000 hours
- Obstain a 50%0-70% energy saving compared with Halogen lamps
Specification
Model |
EL-FL09-100W |
| LED Brand | CREE |
| Driver Brand | MEANWELL/Inventronics |
| Power Comsuption | 100W |
| Input Voltage | 90v-305v AC/12-24v DC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Surge Production Class | 3KV/6KV/10KV |
Lamp Rated Luminous Efficiency |
100lm/w |
Lamp Rated Lumen output |
10000lm (Lumen tolerance +/- 5%) |
Color Rendering Index |
>70 |
Color Temperature |
2700-7000K |
Working Environment |
Between -40℃~50℃,10%~90%RH |
Total Harmonic Distortion |
<15% |
Life span |
70000hours |
Wind Index |
Force 12 |
Body and Shell Materials |
Aluminum Alloy |
IP Rating |
IP66 |
Certification |
TUV,GS,SAA,CB,CE&ROHS |
Optional Function |
0-10V DC or PWM Signal or Resistance Dimming Timer/ Photocell Contral
|
Warranty |
5 years |
Packing Details |
|

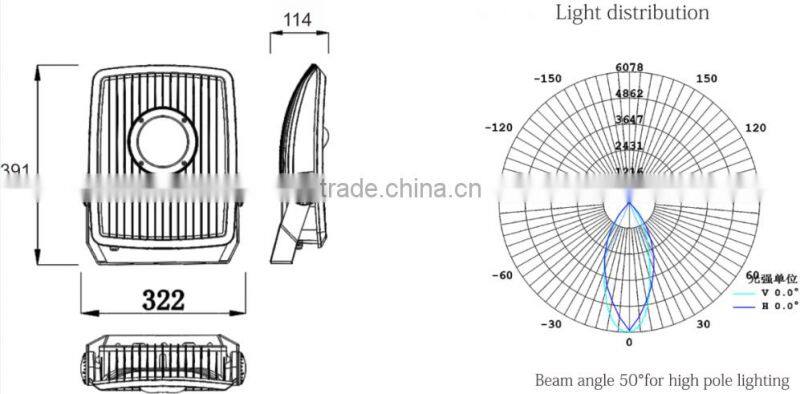

Fixture Dimension |
322X391X114mm |
Fixture Weight |
5.86kg |
Packing Dimension |
61X37X44mm |
Packing Weight |
25.94kg |
Control System
A. Programmable time control dimmable LED driver
EVERLITE LED street lights can be installed with dimmable driver that varies voltage from 0to 10v DC and can also support intelligent communication protocol. Its features including programmable dimming control, factory setting and accurate calibration etc.
B. Light control LED street lights
Though street lamp light controller, detecting theenvironment illuminance<10lux, after 30 seconds,it automatically turn on, decting the environmentilluminance>30lux, after 30 seconds, it automaticallyturn off.
C. Solar power street lighting system
The system is mainly composed by five parts: LED streetlights, solar panels, solar controller, storage tattery andlamp-pole.
Production Process
Application
Company Overview
- Everlite LED Lighting Co., Limited, a professional manufacturer of poutdoor LED street lighting, floodlighting and high bay lamps, located in Ningbo. It is consist of a completed lighting design teams, tooling and mold development shops, aluminum die-casting parts manufacturing facilities, paint finishing assembly lines, and lighting assembly lines.
- We are always keeping pace with the new development of led lighting industrial, which enable us to launch at least 3 new products per month. With the support of lighting designing engineers and lighting software , our service is far beyond than selling led lights, we help customers designing products, making tooling and testing products, planning and designing lighting projects,etc.
- Everlite are now selling its LED street lights, floodlighting and housing mainly to North and South America, Southeast Asia, Europe, Russia, China Mainland.
- Contact Us now to experience our good products and service. The best 30w led street light for you!
