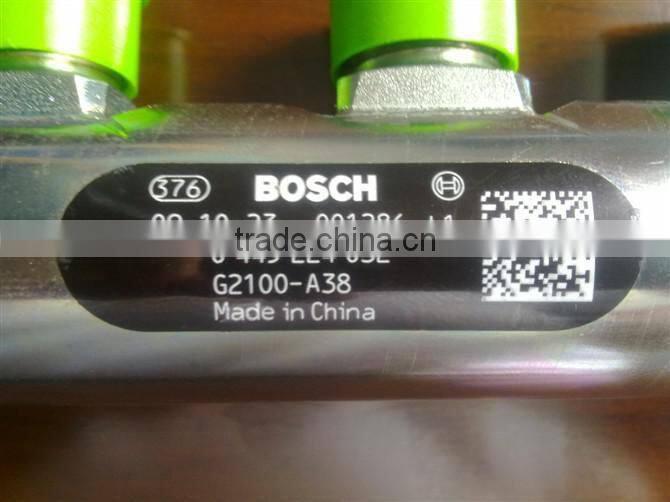

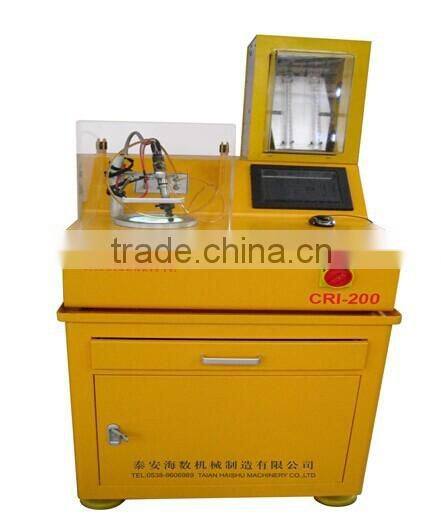

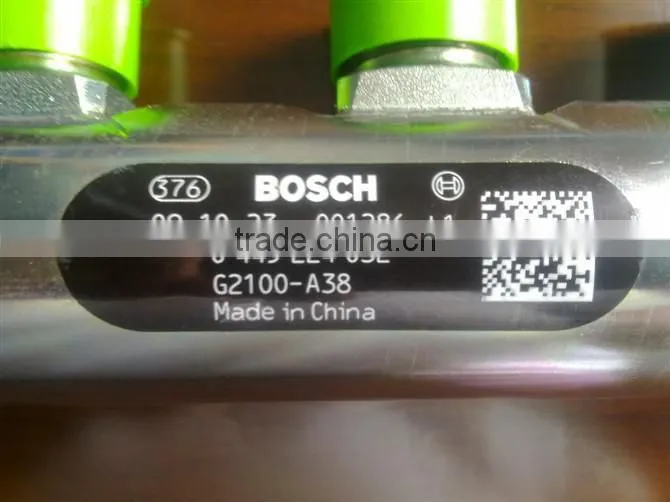

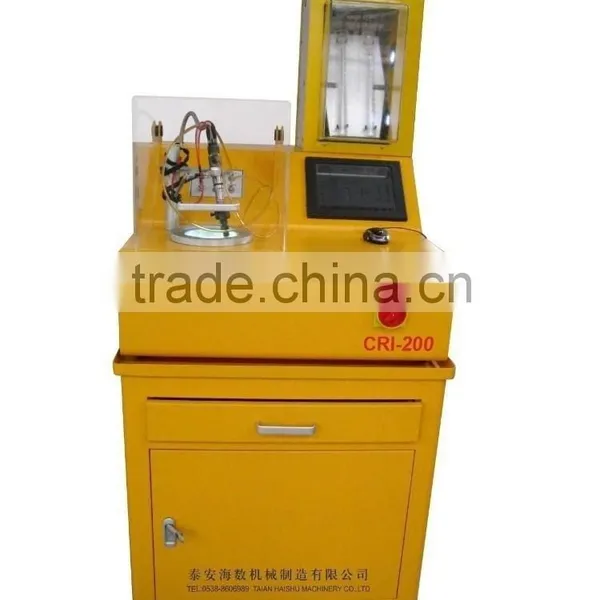

CRI-200 high pressure common rail injector test bench can test BOSCHDENSODEPHI SIEMNES and other common rail injectors.
HIigh quality and low price CRI-200 high pressure common rail injector test bench

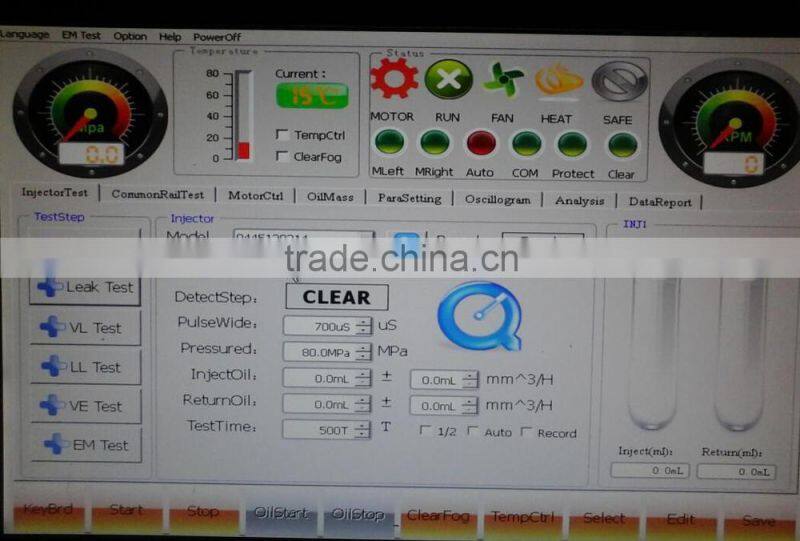

CRI-200 high pressure common rail injector test bench, is Controlled by industrial computer in real time, Windows XP operating system. built common rail injector standard database; , optional touch screen or mouse actions. can test BOSCHDENSODEPHISIEMNES and other common rail injectors.
CRI--00 fuel injection quantity is measured by a measuring cup
2.Introduction:
1. The oil quantity is measured by sensor

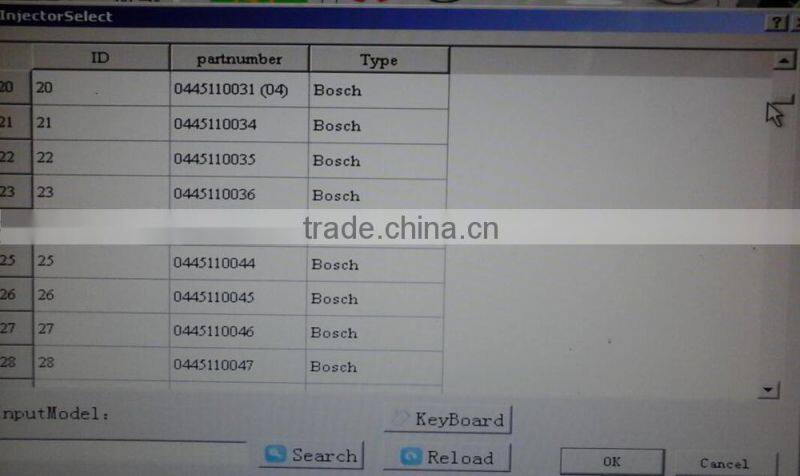

2.Test data can be stored and print(optional).Built-in standard database of common rail injector, and data can be Free upgraded for users can also be free to add data.
3.human interface, operate more convenient to use
4. The main frame includes aviation aluminum structure and cast iron operating platform
5.It has built-in electrical box and convert box. Short-circuit protection.
6. the maximum pressure is 200Mpa.
7.Automatic closed-loop control rail press accuracy displayed is ±0.1MPa.
8.Setting the parameters of injection curve,pull up current,dynamic current fixed time,keep and maintain time and so on.
Checking of common rail injector open pressure and atomization quality.
9.Function of high-pressure cleaning of the injector.
10.Function of the ultrasonic cleaning
11.Testing of Start-up oil quantity.
12.Testing of the common rail injector sealing.
13.Testing of the common rail injector full –load operation.
14.Testing of the common rail injector idling conditions.
15.Testing of the common rail injector pre-injection conditions.
16.Testing of the common rail injector opening conditions.
3. CRI-200 high pressure common rail injector test bench technical parameters
Rotary speed | 0~4000RPM |
Graduated cylinder: | 45cc,150cc |
Volume of diesel fuel tank: | 60L |
Temperature autocontrol: | 40±2°C |
.Filter oil pricision of test bench(μ) | 4.5~5.5 |
D.C. Supply: | 12V/24V |
Feed pressure: | 0~0.4Mpa(low); 0~4Mpa(high) |
Air pressure(Mpa): | -0.03~0.3 |
Volume of motor oil tank: | 40L(optional) |
Measuring range of flowmeter(L/m) | 10~100 |
Flywheel inertia ((kg*m) | 125mm |
Electricity Supply | 380V 50HZ 3 phase or 220V 60HZ 3 phase |
Output power: | 7.5KW, 11KW, 15KW, 18.5KW, 22KW or as request
|
Overall dimension: | Length: 900mm, Width: 1060mm,Height: 1820mm
|
Net weigh | 450 kg. |

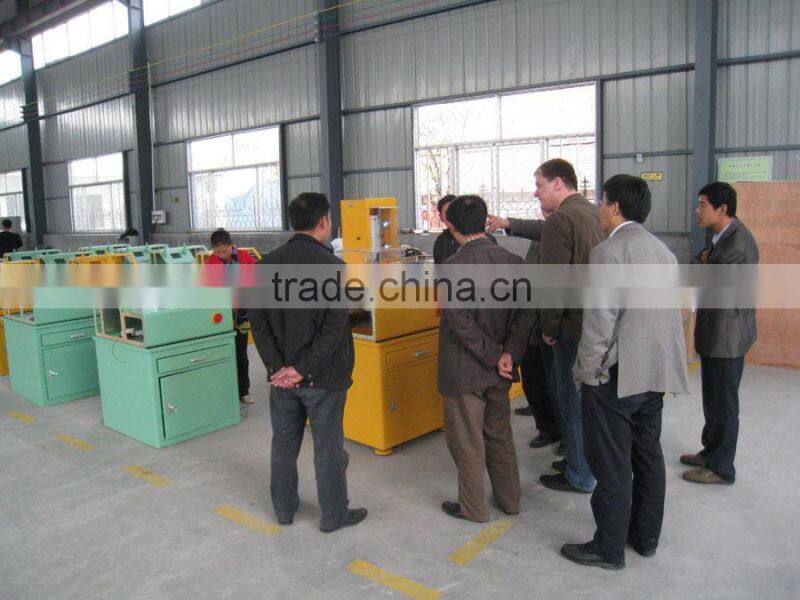

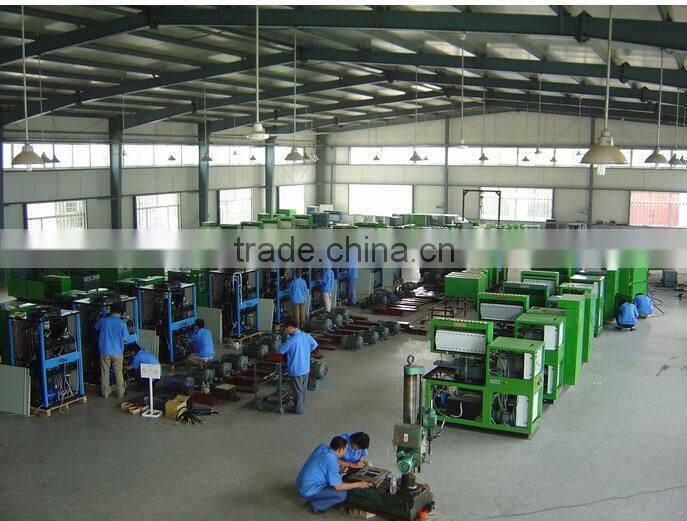

Taian Haishu Machinery co.,.ltd workshop
