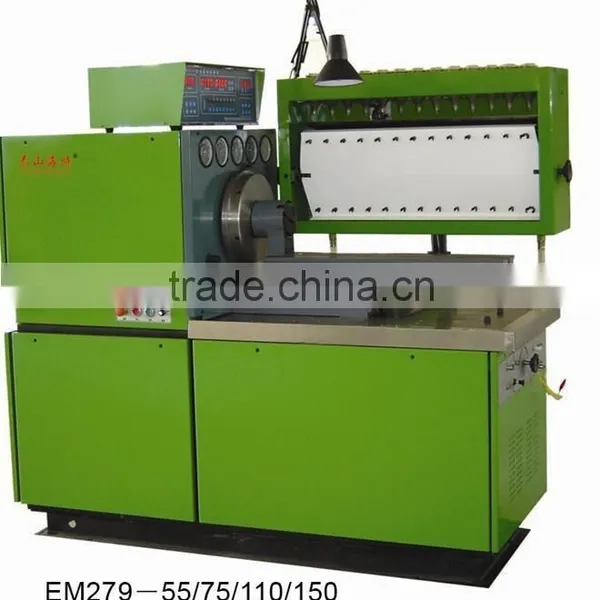

The best-selling products Em279 fuel injection pump test bench from Haishu China
low price and high quality Em279 fuel injection pump test bench is designed mainly for fuel injection pump manufactories, scientific research institutions or repairing work to test, adjusting or repairing fuel injection pumps.
high quality hi-stable character, hi-reliability, ultra-low-nose, perfect auto-protecting function and so on, It is advanced products.
low price and high quality Em279 fuel injection pump test bench Main function :
1.commissioning and supply of fuel injection pump for each cylinder and their uniformity
2. Debug injection pump oil starting point,
3, Debugging multiple governor performance; ;
4,Testing fuel pump tightness;
5,Measuring fuel dispensing pump
6. Checking the dispensing pump of the pressure compensator
7,Measuring the distribution pump chamber pressure .
8,Measuring the advance angle .
9, Measuring the gear lever stroke .The characteristics 1, industrial computer; 2, LED digital display; 3, speed manual and automatic optional; 4, the case for external door.
test bench brand | EM279-55/75/110/150 | EMC579-110/150 |
Output shaft Speed range (rpm) | 0~4000 | 0~3000 |
Number of testable Cylinders | 12 | 12 |
Output power of Drive shaft (KW)
| 5.5/7.5/11/15 | 18.5/22/30 |
Height from the axis of output shaft to the surface of worktable (mm) | 125 | 125 |
Flow rate of the fuel System in liter/min |
≥6 | ≥8 |
Fuel system supply of pressure (MPa) | Low pressure ≥0.4, high pressure ≥4.0 | Low pressure ≥0.4, high pressure ≥4.0 |
The rate of fuel output (times) | 0~1000 | 0~1000 |
Control temperature range of fuel (°C) | 40±2 | 40±2 |
Gas positive Pressure (MPa) | ≥0.16 | ≥0.16 |
Gas negative Pressure (MPa) | -0.1~0 (-760mmHg~0) | -0.1~0 (-760mmHg~0) |
DC power supply | 12/24 | 12/24 |
Times of oil return(L/h) | 6~60 | 6~60 |
Gear lever stroke (mm) | 0~25 | 0~25 |
Advance angle(°) | 0~10 | 0~10 |
Volume of the test bench: (L×W×H) (cm) | 185×110×175 | 210×110×175 |
Weight (Kg) | 800/850/900/1000 | 1100/1200/1300 |

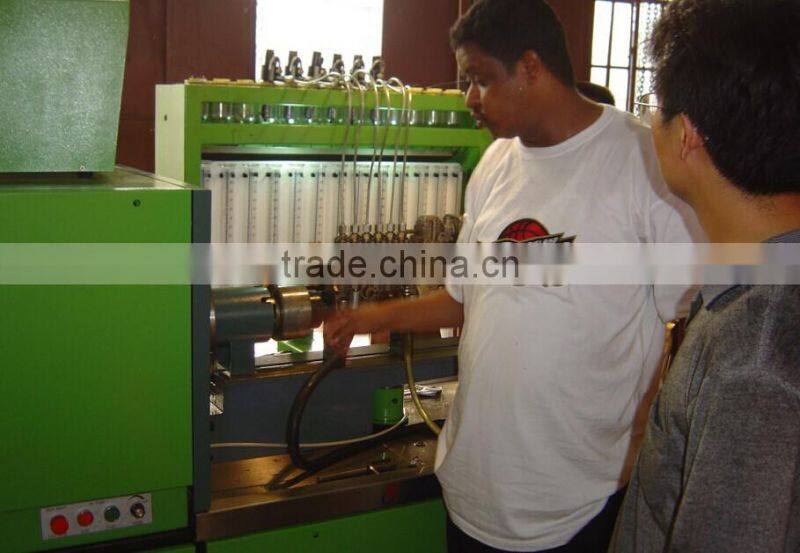

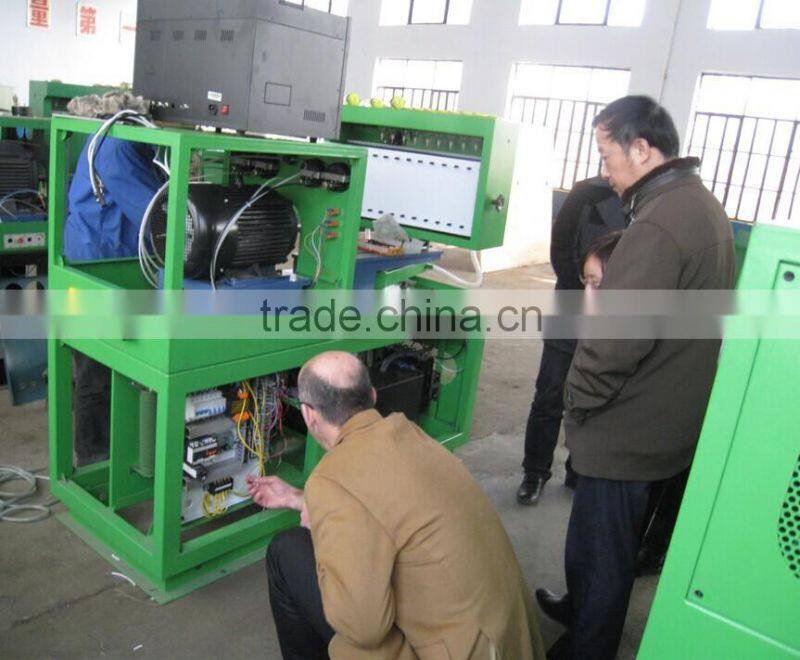

Our workshop
