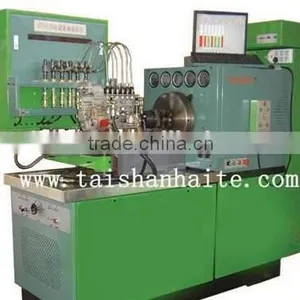

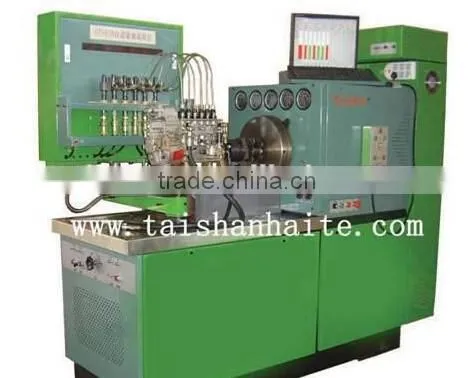

Easy operation HTS679 Fuel injection pump test equipment from Taian Haishu
HTS679 is a kind of fuel injection pump test bench adopt Industrial computers, color screen display;
It has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates ,
HTS679 Fuel injection pump test bench is high precision .ultra-low-noise, perfect auto-protecting function and so on, It is welcomed product .
Functions :
Commissioning of each cylinder injection pump fuel supply and fuel supply uniformity;
Commissioning supply starting point fuel injection pump, oil interval angle;
Avariety of performance governor debugging;
The fuel pump tightness test;
Fuel dispensing pump back tests;
The distribution pump pressure compensator checking;
The distribution pump chamber pressure measurement;
The advance angle measurement;
The gear lever stroke measurements.
Characteristics
Industrial computers, color screen display;
Fuel flow sensor using precision measurement;
Hydraulic, pneumatic, gear lever stroke digital display;
Import governor and electrical buttons;
Speed manual and automatic optional;
The case for the plug-in door.
.Technical parameters
Test Bench Model | HTS 679-110/150 | HTS 679-185/220/300 |
Spindle speed range(rpm) (rpm) | 0~4000 | 0~3000 |
Test number of cylinders | 12 | |
Spindle maximum output power(kw) (KW) | 11/15 | 18.5/22/30 |
Spindle center height(mm) (mm) | 125 | |
Fuel oil supply(L/min) (L/min) | ≥8 | ≥10 |
Fuel pressure(MPa) (MPa) | Low≥0,.4,High ≥4.0 | |
Injection times | 0~1000 | |
Fuel control temperature(℃). | 40±2 | |
Positive pressure(MPa) (MPa) | 0~0.16 | |
Negative pressure(MPa) | -0.1~0 | |
DC power supply (V) | 12/24 | |
Oil return measurements (L / h) | 6~60 | |
Gear lever stroke (mm) | 0~25 | |
Advance angle (°) | 0~10 | |
Dimensions (L × W × H) | 1850×1100×1750 | 2100×1100×1750 |
Weight (Kg) | 800/850//900/1000 | 1100/1200/1300 |
our workshop
our service
because we are the direct manufacture of test bench ,
and we have engineer in the workshop , our office is so near to the workshop , so we can solve your questions quckily
And give you perfect after sale service .
From : Taian Haishu Machinery co.,.ltd
Made manager : Cn1073767244
Website :/English/index.asp
