Specifications
HTS279 diesel test benchIt is designed mainly for fuel injection pump manu

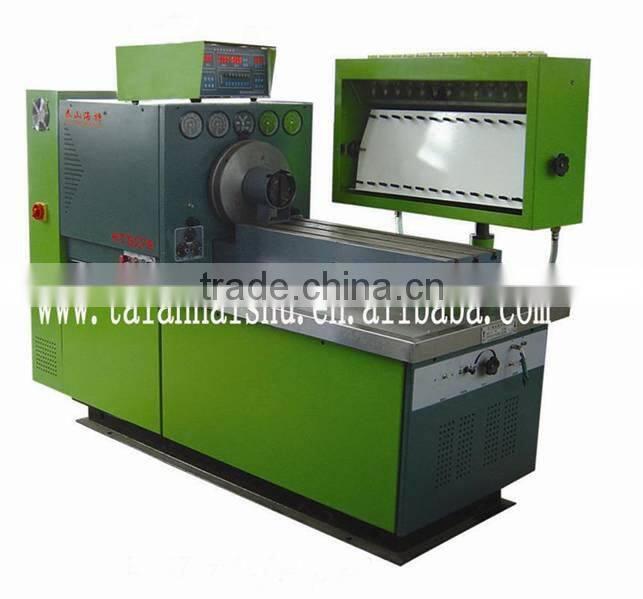

HTS279 lower price diesel fuel injection pump test bench
HTS279 diesel test bench Introduction
HTS279 test bench with LED digital display; adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business.
Useage
1, Checking and adjusting the distributor pump. for each cylinder
2 fuel injection pump test bench Test point and interval angle of oil supply of injection pump.
3, the governor performance debugging;
4, injection pump sealing of injection test;
5 the distributor pumps oil test;
6,the internal pressure of distributor pump. measurement
7, the allocation of the pump cavity pressure measurement;
8, advance angle measurement (optional);
9, fuel injection pump test bench the gear lever stroke measurement (optional).
Characteristics
1. industrial computer;
2. LED digital display;
3. speed manual, automatic optional;
4. speed six-speed preset, arbitrary set;
5. the table for the wide-body T-slot;
6,. fuel cooling mode: air-cooled (standard), the compressor forced cooling (optional)
Technical parameters
Model | HTS279-185 | HTS279-220 | HTS279-300 |
Spindle speed range | 0~3000 rpm | 0~3000 rpm | 0~3000 rpm |
injection pump cylinder | 12 | 12 | 12 |
spindle maximum output power | 18.5 KW | 22 KW | 30 KW |
Spindle center height | 125 mm | 125 mm | 125 mm |
Fuel system fuel supply | ≥8 L/min | ≥10 L/min | ≥12 L/min |
oil pressure | Low≥0.4,High≥4.0 (MPa) | Low≥0.4, High≥4.0 (MPa) | Low≥0.4, High≥4.0 (MPa) |
Number of times | 0~1000 | 0~1000 | 0~1000 |
Fuel temperature | 40±2 ℃ | 40±2 ℃ | 40±2 ℃ |
Positive pressure | 0~0.16 MPa | 0~0.16 MPa | 0~0.16 MPa |
Negative pressure | -0.1~0 MPa | -0.1~0 MPa | -0.1~0 MPa |
DC power | 12/24 V | 12/24 V | 12/24 V |
Back oil measurement | 6~60 L/h | 6~60 L/h | 6~60 L/h |
Dimensions | 2100×1100×1750 (L×W×H)mm | 2100×1100×1750 (L×W×H)mm | 2100×1100×1750 (L×W×H)mm |
Weight | 1100 Kg | 1300 Kg | 1500 Kg |

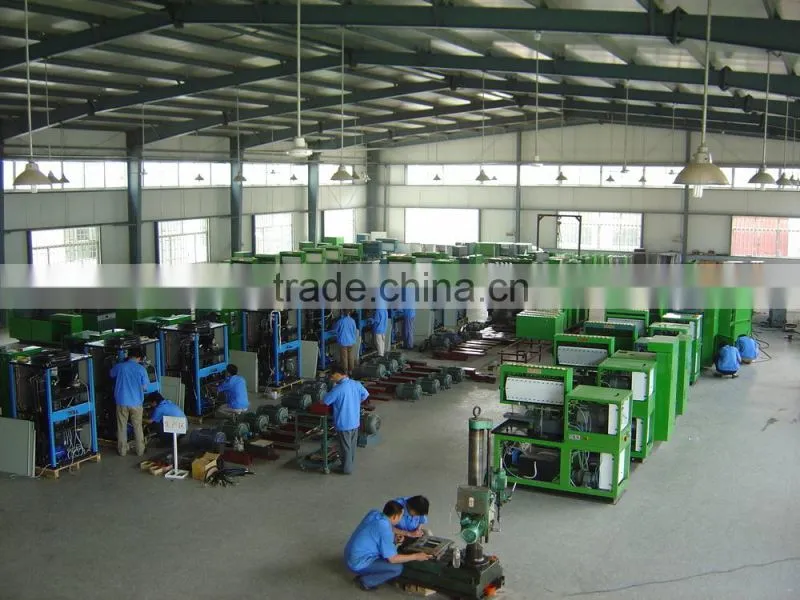

our workshop:
From : Taian Haishu Machinery co.,.ltd
Made manager : Cn1073767244
Website :/English/index.asp
