Product features and benefits
New designed streamline structure LED street light of EVERLITE, equipped with high efficient CREE COB LED source and high power factor MEAN WELL/Inventronics LED driver, have bright lighting and good heat dissapation capacibility. EL-SL08 is the best choice in energy-saving generation, could replace HPSL 60W-540W. We supply 3/5 years warranty. This LED street light is equipped with high quality COB/Multiple-LED, delivering 100lm/w, and high-end driver.
ADC 12 Die-casting aluminum body
Color Temperature: 3000-5700k
System Luminous efficacy: 105-110lm/w with CREE chips
CREE chips and MANWELL driver for 5 years warranty
Built-in Surge Protection: 4kv/6kv
Life Time: 70000 Hours
Input Voltage: 90-305V
Frequency Range: 50~60Hz
Temprature of Working Condition: -40°~+50°
Humidity of Working Condition: 10%~90%
Protection Grade: IP65

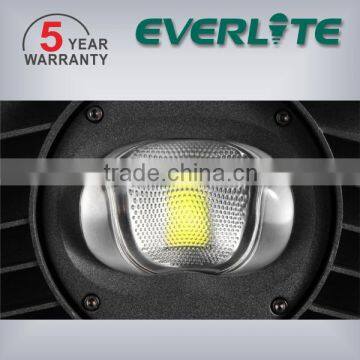

LED LUMINOUS SOURCE
EL-SL08 series are generally equipped with CREE CXA, Epistar and Bridgelux LED. The finished system efficiency can reach 100lm/w, CCT 4000K-5700K,. If you need higher efficiency, we could supply CITIZEN LED, delivering over 105 lm/w.

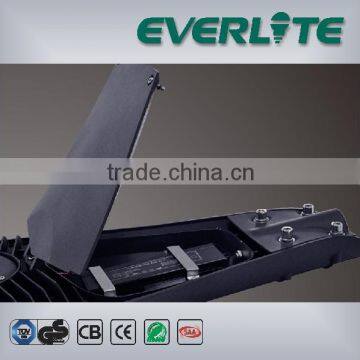

LED DRIVER
Full range EVERLITE LED street lights are utilizing MEAN WELL/ INVENTRONICS high end driver, great luminous stability, long lifespan, 7 years warranty and optional performance status. Input Voltage: 90-305V/160-265V, PF>0.95.
EXTREAME LUMINAIRE FEATURES
Product Name |
120W 150W 180W 200W COB LED Street Light TUV-GS SAA CB 5 years warranty LED street lighting |
Model |
EL-SL08(3)-180W |
| Power Comsuption | 180W |
| LED Brand | Cree CXA |
Lamp Rated Lumen output |
18000lm (Lumen tolerance +/- 5%) |
Lamp Rated Luminous Efficiency |
100lm/w |
Color Rendering Index |
Ra>70 |
Color Temperature |
2700-7000K |
| Driver Brand | Mean Well/Inventronics |
| Input Voltage | 90v-305v AC/12-24v DC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Surge Production Class | 3KV/6KV/10KV |
IP / IK |
IP65/ IK08 |
Working Environment |
Between -40℃~50℃,10%~90%RH |
Total Harmonic Distortion |
<15% |
Life Span and Warranty |
50000 hours/ 5 years |
Wind Index |
Force 12 |
Body and Shell Materials |
Aluminum Alloy |
|
Optional Function |
0-10V DC or PWM Signal or Resistance Dimming Timer/ Photocell Contral |
Certificates |
CE&ROHS , CB,SAA |
Fixture Dimension |
650x236x117mm |
Fixture Weight |
5.0kg |
Packing Dimension |
700x290x160mm |
Packing Weight |
6.1kg |
Light Distribution

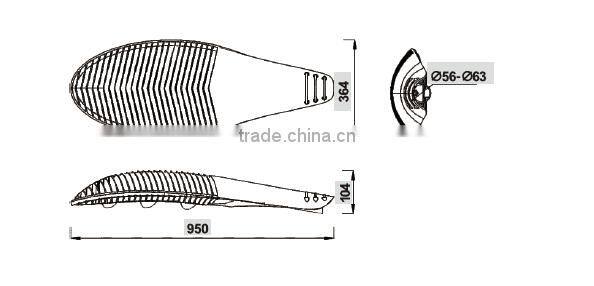

Product Dimensions

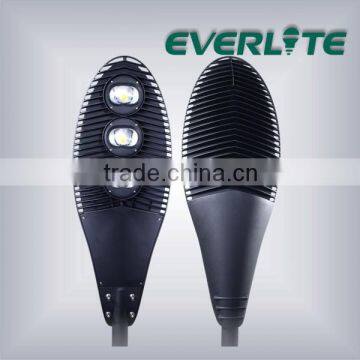

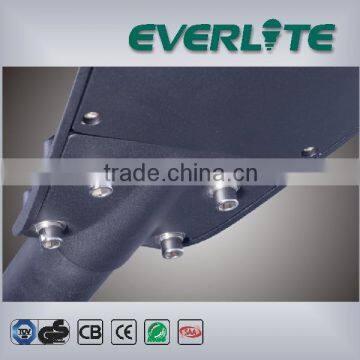

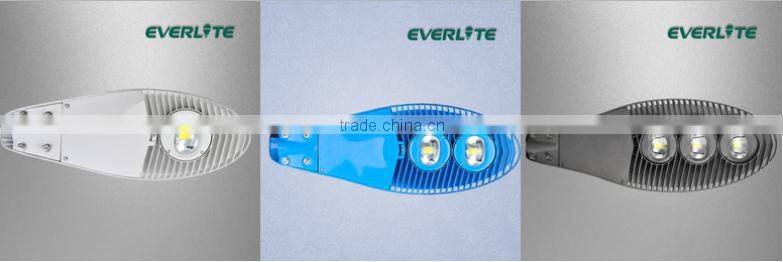

Real Products Pictures
Production and Aging
Packing and Shipping
Projects
- Everlite is professional in LED outdoor lighting and LED Lights Research , Development and Production for 8 years.
- We have very experienced LED R&D team, with 5 knowledgeable engineers, helping our customers customerize products, making thermal simulation, desining light distribution, and supplying OEM die-casting, as well as CKD/SKD.
- We can help clienst in modifying module design and developing module .
- We could supply technical support , including project lighting designing( indoor/outdoor) and optical simulation.
- We have Europea Union appearance patent , as well as versatility patent.
- All of our LED street lights are approved by TUV-GS certificate.
LED Street Light Certifictes
Customers Visiting
Business Activities
Qestions and Answers
Q1: Can we get the sample and how?
A1: Yes we can provide you samples for testing. When you choose one model, please contact us, we make a PI for you, after your payment, we will prepare the samples for you.
Q2: Delievery time
A2: For container order, generally 30~45 days.For sample orders sometimes within 7 days.
Q3: MOQ
A3: We can be exporter, wholesaler, or even retailer to you, there is no MOQ, but depend on the items.
Q4: Payment terms
A4: T/T 30%+70% preferred, but also L/C,T/T, D/A, D/P, accepted.
Q5: Delivery method
A5: By sea preferred, also by air, courrier, available too.
Q6: Who are our main customers
A6: Wholesaler, Contractor, Importer& Exporter, Manufacturer.
Q7: What products certificates do we have
A7: GS, CE, RoHS for general Europe market. SAA for Australian market.
Q8: Product Guarantee
A8: We are very flexible, could supply 3 years or 5 years warranty plan according to your requirements.
Welcome to contact us!
