Product features and benefits

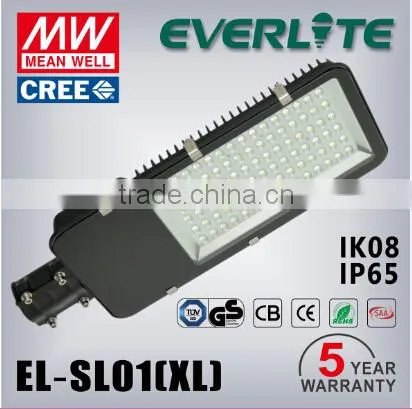

EL-SL01 series is Everlite classic outdoor LED lights . It can accomodate all the market. EL-SL01 90W-120W, could replace HPSL 270W-360W. We supply 3/5 years warranty. This LED street light is equipped with high quality COB/Multiple-LED, delivering over 100lm/w, and high-end driver.
LED LUMINOUS SOURCE
EL-SL01 series are generally equipped with CREE XT-E/ Nichia LED. The finished system efficiency can reach 100lm/w, CCT 4000K-5700K. Ra>70.
LED DRIVER
Full range EVERLITE LED street lights are utilizing MEAN WELL/ INVENTRONICS high end driver, great luminous stability, long lifespan, 7 years warranty and optional performance status. Input Voltage: 90-305V/160-265V, PF>0.95.

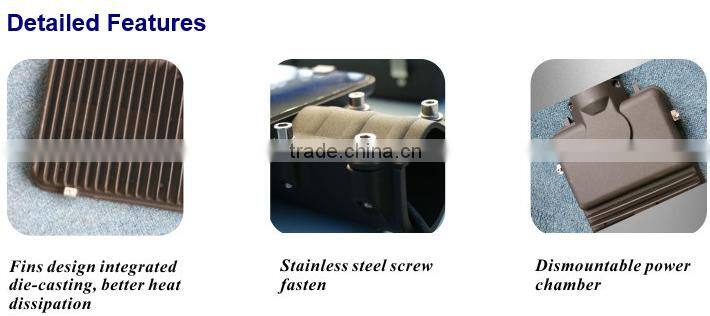

EXTREAME LUMINAIRE FEATURES
Product Name |
CE GS LVD EMC high efficient smd led streetlight 40w with 3/5 years warranty |
Model |
EL-SL01(S) |
| Power Comsuption | 60W |
| LED Brand | Cree XT-E/Nichia |
Lamp Rated Lumen output |
6000lm (Lumen tolerance +/- 5%) |
Lamp Rated Luminous Efficiency |
95lm/w |
Color Rendering Index |
Ra>70 |
Color Temperature |
2700-7000K |
| Driver Brand | Mean Well/Inventronics |
| Input Voltage | 90v-305v AC/12-24v DC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Surge Production Class | 3KV/6KV/10KV |
IP / IK |
IP65/ IK08 |
Working Environment |
Between -40℃~50℃,10%~90%RH |
Total Harmonic Distortion |
<15% |
Life Span and Warranty |
50000 hours/ 5 years |
Wind Index |
Force 12 |
Body and Shell Materials |
Aluminum Alloy |
|
Optional Function |
0-10V DC or PWM Signal or Resistance Dimming Timer/ Photocell Contral |
Certificates |
CE,GS , CB,SAA |
Fixture Dimension |
637x300x67mm |
Fixture Weight |
6.9kg |
Packing Dimension |
680x220x355mm |
Packing Weight |
14.6kg |

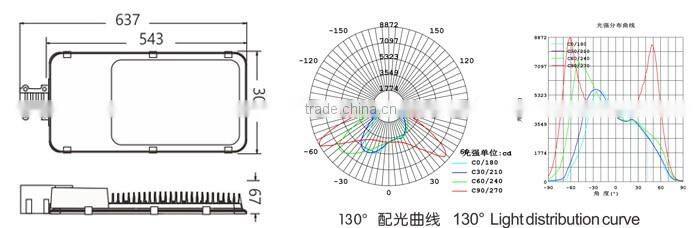

Product Dimensions& Light Distribution
Real Products Pictures
Production and Aging
Packing and Shipping
Projects
- Everlite is professional in LED outdoor lighting and LED Lights Research , Development and Production for 8 years.
- We have very experienced LED R&D team, with 5 knowledgeable engineers, helping our customers customerize products, making thermal simulation, desining light distribution, and supplying OEM die-casting, as well as CKD/SKD.
- We can help clienst in modifying module design and developing module .
- We could supply technical support , including project lighting designing( indoor/outdoor) and optical simulation.
- We have Europea Union appearance patent , as well as versatility patent.
- All of our LED street lights are approved by TUV-GS certificate.
LED Street Light Certifictes
Customers Visiting
Business Activities
Qestions and Answers
Q1: Can we get the sample and how?
A1: Yes we can provide you samples for testing. When you choose one model, please contact us, we make a PI for you, after your payment, we will prepare the samples for you.
Q2: Delievery time
A2: For container order, generally 30~45 days.For sample orders sometimes within 7 days.
Q3: MOQ
A3: We can be exporter, wholesaler, or even retailer to you, there is no MOQ, but depend on the items.
Q4: Payment terms
A4: T/T 30%+70% preferred, but also L/C,T/T, D/A, D/P, accepted.
Q5: Delivery method
A5: By sea preferred, also by air, courrier, available too.
Q6: Who are our main customers
A6: Wholesaler, Contractor, Importer& Exporter, Manufacturer.
Q7: What products certificates do we have
A7: GS, CE, RoHS for general Europe market. SAA for Australian market.
Q8: Product Guarantee
A8: We are very flexible, could supply 3 years or 5 years warranty plan according to your requirements.
