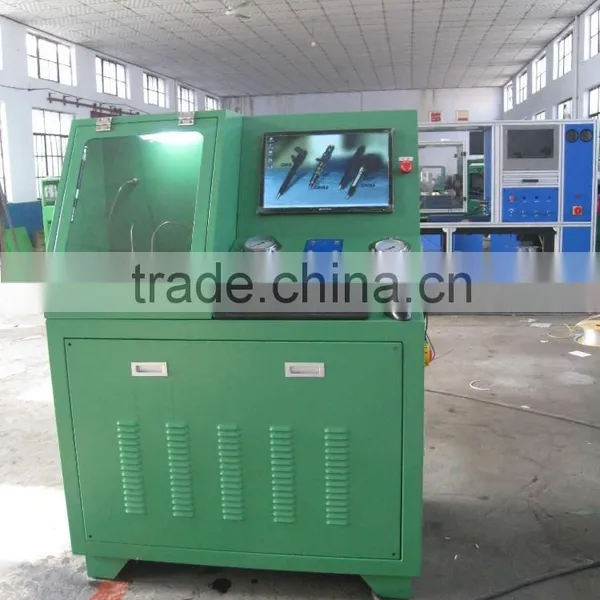

Heui injector test bench for EURO 3
Application:
HEUI injector test bench is controlled by industrial computer in real time, Windows operating system and touch screen
Improve fuel economy & enhance performance
Heui injector test bench is designed to test up to four HEUI CAT C7/C9,CAT 3408 and so on HEUI Injectors., which are equipped on the following engines:
Navistar T444E, as Ford 7.3L Power Stroke Engines
Navistar DT466E
Navistar I530E
Caterpillar 3126B
Heui injector test bench
Superiority
Oil measurement, fuel temperature, lub. oil temperature, injection time, injection pulse frenquency are all with digital display. Lub. oil pressure is displayed by s pressure gauge. Clear display, stable work, high control accuracy. Drive signal can be adjusted, you will have a safe repairing maintenance.
Characteristics
1. Controlled by industrial computer at real time, Windows operating system;
2.Oil quantity is measured by sensor and displayed on LCD;
3.Injection drive signal pluse width and frequency is adjustable;
4.The drive signal’s percentage is adjustable;
5.Short circuit protection function;
6.The injection time or injection times of injector can be set by yourself;
7.Date can be searched and saved.
1.Test CAT C7,C9 and other HEUI Injectors.
2.Test the high-speed oil quantity of HEUI;
3.Test the medium-speed oil quantity of HEUI;
4.Test the cranking oil quantity of HEUI
HEUI Injector test bench Technical data
Motor |
10HP motor |
|
Injector testing frequency |
50~2000 rpm; |
|
Injection time |
1~100s |
|
Lub. oil pressure |
0~25Mpa; |
|
Fuel pressure: |
0~0.3 Mpa ; |
|
nput power |
AC 380V/50HZ/3Phase or 220V/60HZ/3Phas |
|
Actuation Oil system |
0-300bar, |
|
.Fuel temperature |
40°C; |
|
.Lub. oil temperature |
.40°C; |
|
Test Oil Tank Capacity: |
40L |
|
|
Fuel Delivery Measurement Counter Range |
1~9999 |
|
Simple, User-Friendly Display and Mini-Key Pad | ||

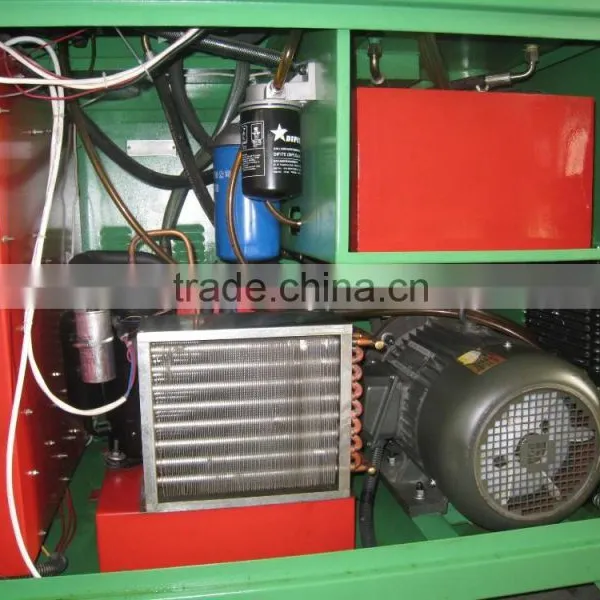

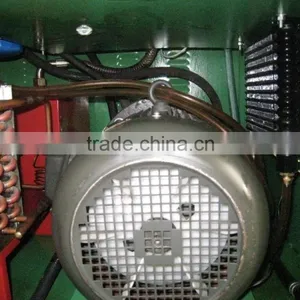

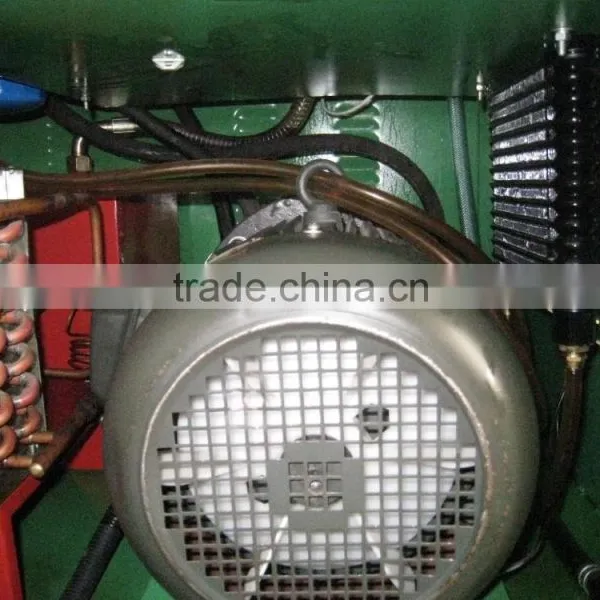

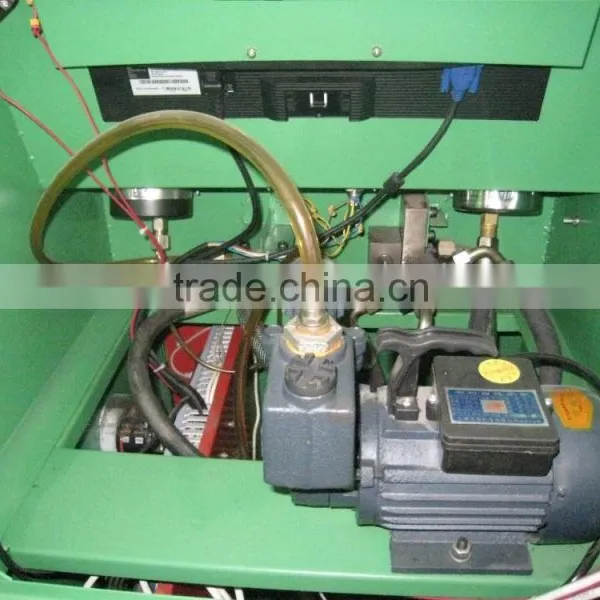

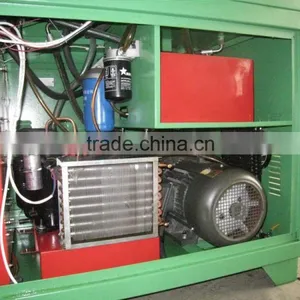

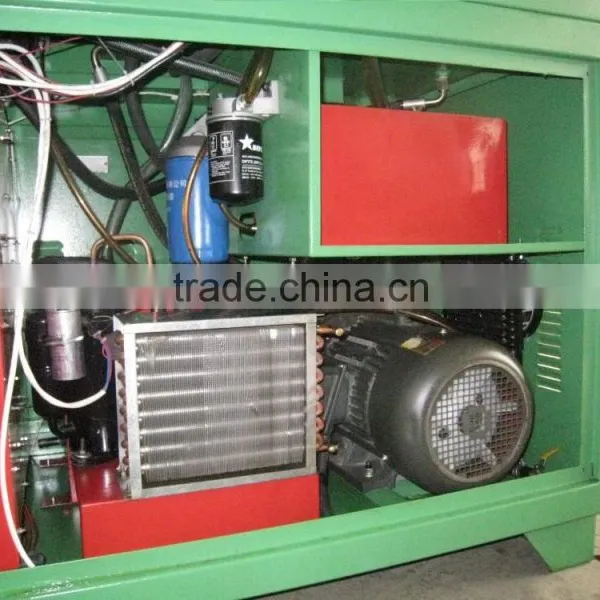

our workshop :
our package and transport
