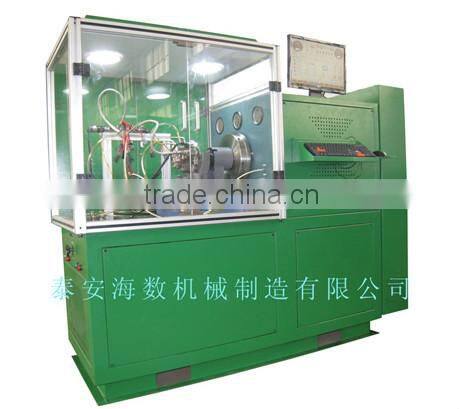

Electronic Power and alternator test bench Usage alternator starter test bench
`The main introduction
CRS-6 common rail comprehensive performance test hosts using advanced and reliable frequency variable speed, wide speed range, accurate and reliable, energy saving and environmental protection. controlled by Industrial control machine color display. Full Chinese or English or other language display menu
Display the common rail pumps, common rail injector debugging interface and user interface, common rail injector parameters interface.
According to user requirements to display the word introduction interface,
through manual input can print and save pump debugging data.
Glass cylinder measure the amount of oil
It has these characters :high precision,, low cost, reliable work. Can achieve six-cylinder common rail fuel system tests.
CRS-6 test bench Main features
1.. the host variable frequency variable speed;
2. Preset speed multi-file, and can be set arbitrarily;
3. Industrial control machine control, 6-cylinder common rail system testing;
4. Full Chinese or English menu, parameter interface color display;
5. Glass graduated cylinder to measure the amount of oil, and the testing is accurate, reliable, cost-effective;
6. The device driver parameters can be flexibly adjusted, measuring a variety of common rail pump and injector;
7. the system has expansibility, centralized management of multiple devices, data be reported to the batch testing of rail components.
The main technical parameters
Test bench brand |
CRS-6 common rail testbench |
Spindle speed range (r / mi |
0~3000 |
direction of rotation |
forward reverse |
the injectors number of testing |
1~6 |
|
the distance from spindel to bench (milimeter ) |
125 |
|
Oil amount of oil fuel system(L / min) (optional)
|
≥6 |
oil supply pressure(MPa) |
Low pressure ≥0.4 |
Cylinder capacity |
45ml/150ml |
|
return oil capacity capacityamountamount oiloilamount |
45ml/150ml |
Fuel temperature control(℃) |
40±2 |
Self-priming pump suction pressure measurement(Mpa ) |
-0.1~0 |
DRV measuring cylinder capacity |
250ml |
Rail High Pressure (MPa) |
0~180 |
Common Rail High Pressure (MPa) |
0~200 |
|
Dimensions (cm) (L * W * H) |
210*100*175 |
our workshop;

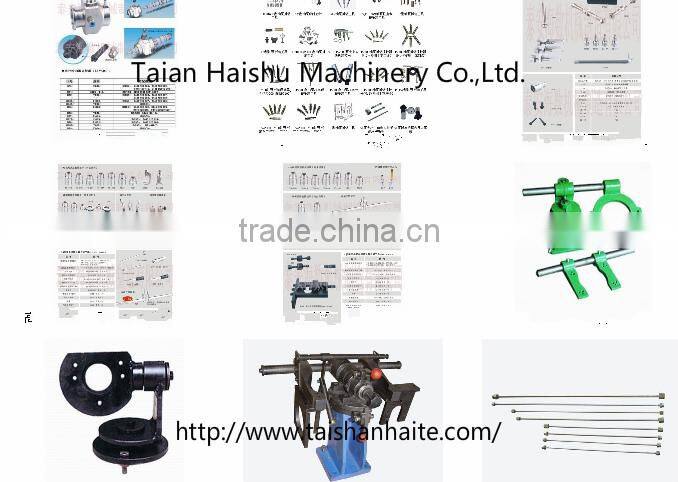

Some of our acessories :
Our packing :
