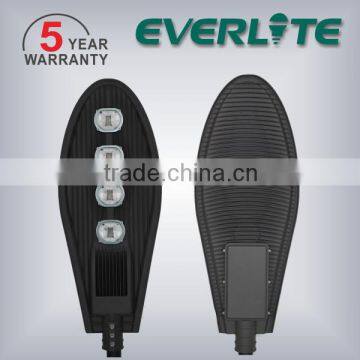

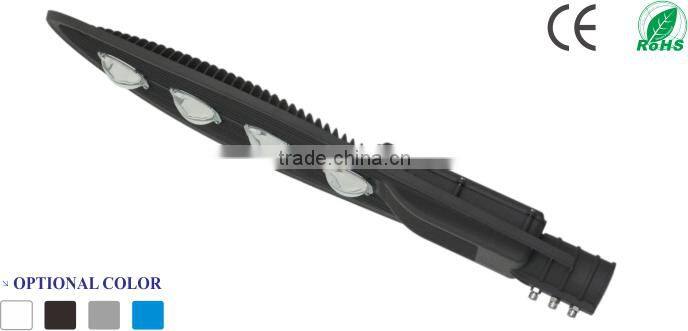

200w high power led street light with good waterproof urban lights
- Die-casting aluminum body with anti-corrosion treatment
- Highly polished aluminum reflector
- Adjustable bracket for angle of light output
- IP65 rated for external use
- Equipped with CREE LED chip, generate high luminous flux
- High efficient and power factor led power supply
- Long life span over 50000 hours
- Obstain a 50%0-70% energy saving compared with Halogen lamps
Overview
The elegant EL-SL09(4) series LED street lights are equipped with high efficiency and power factor led power supply. The LED emitter brand can be varied according to requirement.
Product Benefits
LED LUMINOUS SOURCE
American CREE high power LED luminous source, with LM-80
test report, providing excellent lumen output and high CRI, is
compatible with Bridgelux, Sharp, Nichia COB LED source as well.
More information about CREE LED source, please visit .

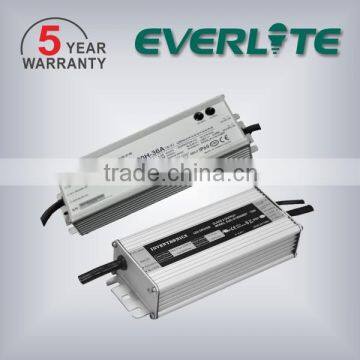

LED DRIVER
Full Range EVERLITE SL09(4) series LED street lights are utilizing MEAN WELL high-end driver, great luminaire stability, long life span and optimal performance status.
More information about the MEAN WELL LED driver technologies, please visit .

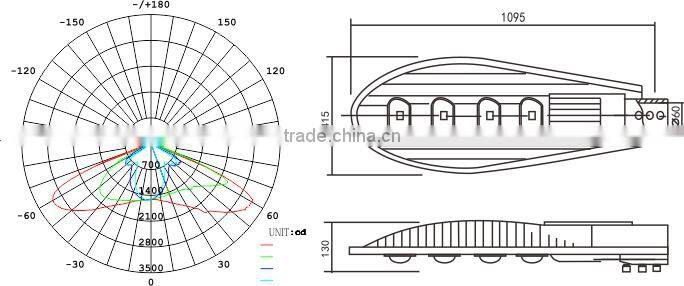

Dimension and Light Distribution Curve
Specification
| Product Name |
200w high power led street light with good waterproof urban lights |
| Model | EL-SL09(4)-200 |
| LED Brand | CREE |
| Driver Brand | MEAN WELL/Inventronics |
| Power Consumption | 200W |
| Input Voltage | 90v-305v AC/12-24v DC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Surge Production Class | 3KV/6KV/10KV |
| Lamp Rated Luminous Efficiency | 90lm/w |
| Lamp Rated Lumen output | 18000lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | >70 |
| Color Temperature | 2700-7000k |
| Working Environment | Between -40℃~50℃, 10%~90%RH |
| Total Harmonic Distortion | <15% |
| Life Span | 50000hours |
| Wind Index | Force 12 |
| Body and Shell Materials | Aluminum Alloy |
| IP Rating | IP65 |
| Certification | CE&ROHS |
| Optional Function |
0-10VDC or PWM Signal or Resistance Dimming Timer/Photocell Contral |
| Warranty | 5 years |
| Packing Details | |
| Fixture Dimension | 1095×415×130mm |
| Fixture Weight | 10.2kg |
| Packing Dimension | 1140x285x135mm |
| Packing Weight | 11kg |
Control System
A. Programmable time control dimmable LED driver
EVERLITE LED street lights can be installed with dimmable driver that varies voltage from 0 to 10v DC and can also support intelligent communication protocol. Its features including programmable dimming control, factory setting and accurate calibration etc.

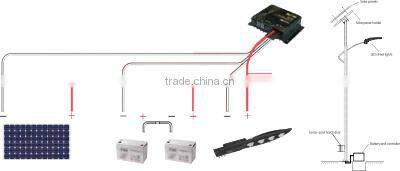

B. Solar power street lighting system
The system is mainly composed by five parts: LED street lights, solar panels, solar controller, storage battery and lamp-pole.
Installation Pictures

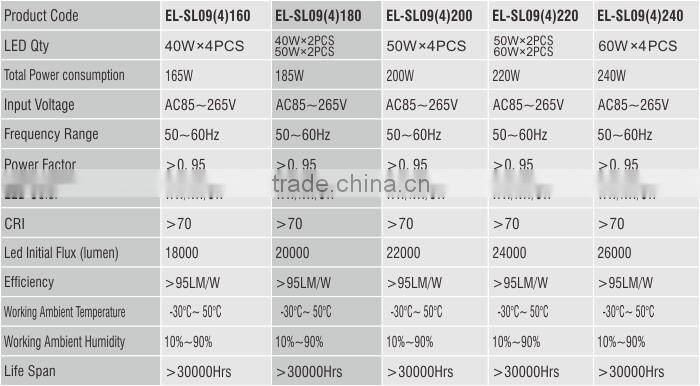

All Models of the Same Series LED Street Light
