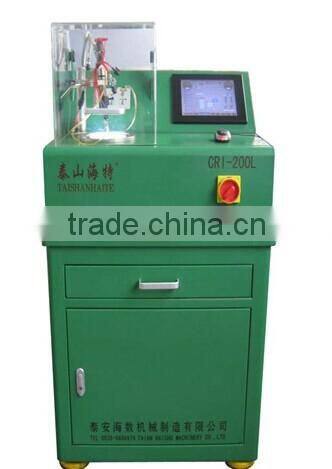

2015 CRI-200L common rail injector test bench with high quality
Introduction
.CRI-200L common rail injector test bench has the function of the diesel engine ECU (Engine Control Unit), while providing Bosch, Denso, Delphi, Siemens and other common rail system control signals (CP1 / CP2 / CP3 / HP3 / HP4 / DELPHI), driven high pressure common rail pumps and high pressure common rail injector to work, drive signal parameters the user can be set according to their own situation, and can save a packet, ease of maintenance personnel working state judge of Common Rail System and maintenance
Product characteristics
1. Supports high-speed solenoid valve common rail injector while, and supports third-generation common rail technology, piezoelectric crystal common rail injector (optional);
2. 6-channel common rail injector;
3.support a variety of rail pressure sensor (BOSCH / DEOSN / DELPHI);
4. intelligent PID algorithm, more accurate pressure control;
5. hardware and software aspects of the two short-circuit protection, more reliable machine;
6. multi-lingual side selection, Chinese / English / Russian;
7. security designed to prevent operator misuse, use more secure.
The exact test:
(A) high-pressure fuel rail
1, to provide Bosch, Delphi, Denso, pre-calibrated value of fresh air fuel rail pressure sensor;
2, the user can add new sensor type oil pump, and pressure sensors for different display value recalibration;
3, automatic rail pressure control and regulation;
4, automatic protection after the rail pressure is too high;
(B) common rail injector test
1, can be tested
High Voltage - Bosch, Denso injectors
Low Voltage - Delphi injectors
Siemens, Bosch piezoelectric crystal (PIEZO) Injector
2, all the way solenoid valve and piezoelectric crystals drive with short circuit protection, without compromising test injectors and the tester itself
3, to provide standard test procedures and working conditions, the standard amount of fuel injection / return oil data, synchronized display. Users can also customize the very convenient conditions, add or change the experimental data, a system with more than 400 pieces of standard data (and continually add), the user-friendly maintenance injector.
Function :
1.Industrial computer motherboard,windowsXP operating system.
2.Easy use by touch screen.
3.Delivery-quantity-based injector tests and displayed on the screen by the flow sensor.
4.Test data can be stored and print(optional).
5.Checking of common rail injector open pressure and atomization quality.
6.Function of high-pressure cleaning of the injector.
7.Function of the supersonic wave cleaning.
8.Testing of Start-up oil quantity.
9.Testing of the common rail injector sealing.
10.Testing of the common rail injector full –load operation.
11.Testing of the common rail injector idling conditions.
12.Testing of the common rail injector pre-injection conditions.
13.Testing of the common rail injector opening conditions.

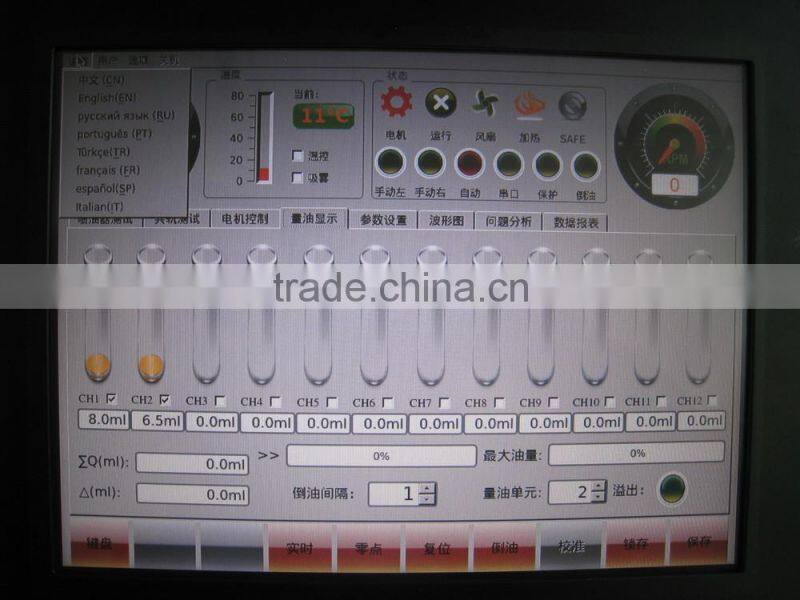

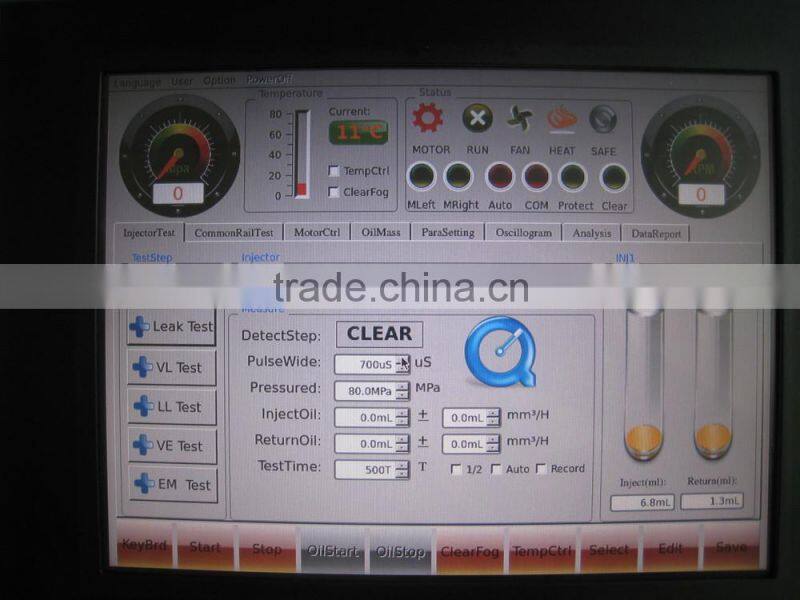

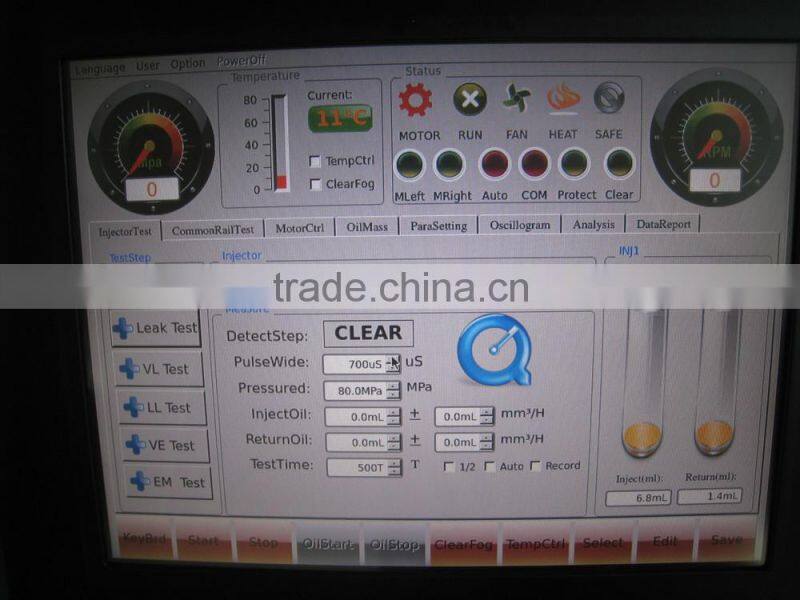

interdace
3. CRI-200L diesel injector calibration machine The technical parameters
the oil pressure |
0 ~ 200MPa any setting; |
the pressure display accuracy: |
+ 0.1 MPa; |
the amount of oil range: |
0 ~ 150mm;
|
|
the host power |
5.5-7.5KW |
|
the host power supply |
380V/50HZ. |
|
Net weight |
300kg |
|
Overall dimension: length |
length:870mm width:775mm height:1060mm |
|
Voltage |
380V/220V |

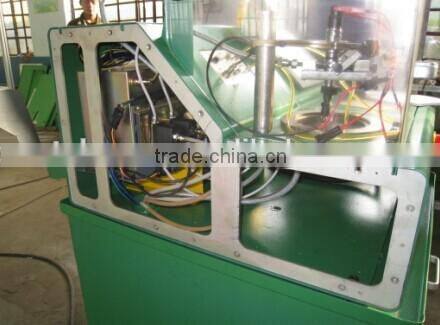

our workshop
