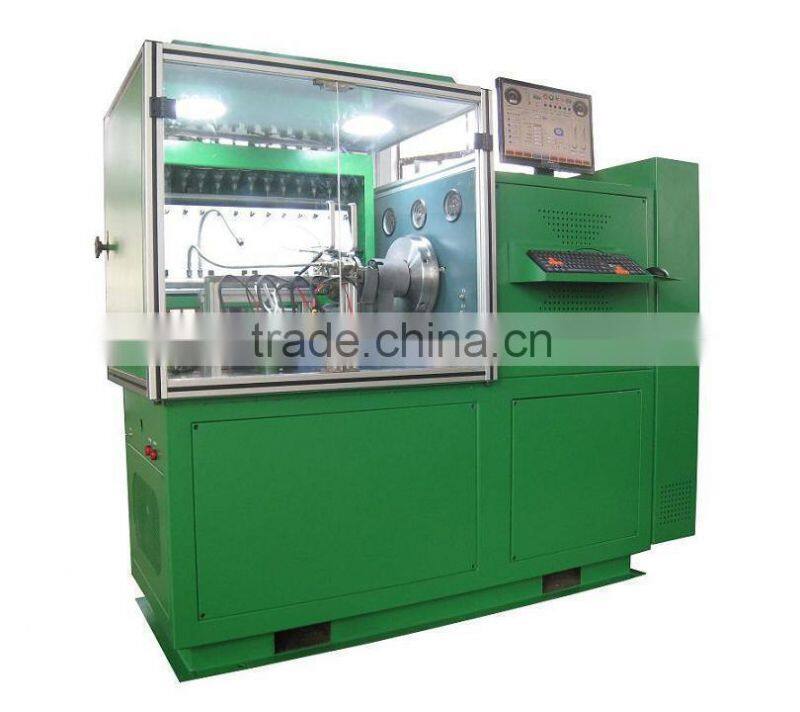

CRS-6 test bench measuring instrument
`The main introduction
CRS-6 test bench measuring instrument hosts using advanced and reliable frequency variable speed, wide speed range, accurate and reliable, energy saving and environmental protection. controlled by Industrial control machine color display. Full Chinese and English and Russain , Spanish and other lanuages
languages display menu
Display the common rail pumps, common rail injector debugging interface and user interface, common rail injector parameters interface.
According to user requirements to display the word introduction interface,
through manual input can print and save pump debugging data.
Glass cylinder measure the amount of oil
It has these characters :high precision,, low cost, reliable work. Can achieve six-cylinder common rail fuel system tests.
CRS-6 diesel test bench form haishu machinery test bench Main features
1.. the host variable frequency variable speed;
2. Preset speed multi-file, and can be set arbitrarily;
3. Industrial control machine control, 6-cylinder common rail system testing;
4. Full Chinese or English menu, parameter interface color display;
5. Glass graduated cylinder to measure the amount of oil, and the testing is accurate, reliable, cost-effective;
6. The device driver parameters can be flexibly adjusted, measuring a variety of common rail pump and injector;
7. CRS-6 test bench measuring instrument system has expansibility, centralized management of multiple devices, data be reported to the batch testing of rail components.
Main function
The test stand can accurately test the following common-rail performance:
1. high-pressure fuel rail
1.1 Provide sBosch, Delphi, Denso, fuel rail pressure sensor pre-calibration values.
1.2 The user can add new the pump sensor type, and display of different sensor pressure value recalibration
1.3 Automatic rail pressure control regulator
1.4 Automatic protection , if the rail pressure is too high
2. Common Rail Injector Test
2.1 Can be measured up to 6-way solenoid valve injector
High Voltage - Bosch, Denso injector
Low voltage - Delphi injector
2.2 Measured 1 Road, Siemens, Bosch piezoelectric crystal injector
2.3 Channel solenoid valve and piezoelectric crystal driver with short circuit protection, and will not damage the injector to be tested and the tester itself.
2.4 Provides a standard test procedure and conditions, the standard amount of fuel injection / back oil data synchronized display. The user can also be very convenient since the given conditions, add or change the experimental data, the system with more than 400 standard data (and continue to add), and user-friendly repair injector.
3. Common rail pump test
3.1 Multi-channel PWM (pulse width modulation signal) output is used to drive a variety of pump.
3.1.1 Single-channel drive signal oil pump regulation.
Bosch CP1/CP2/CP3
Delphi CRSP
Denso HP3/HP4
3.1.2 The ability to pump oil to drive 1 road DRV, specifically for the test pump.
3.2 Separate the two drivers combined Denso HP0 pump(ECD-U2) speed sensor on the timing signal, the synchronization control HP0 pump two oil control solenoid valve;
3.3 All channels driven with short circuit protection, tested the oil pump and the tester will not harm themselves;
3.4 Standard test procedure and conditions, the standard pump oil data synchronized display. The user can also be very convenient to base on their conditions to ,add or change the test data.
The main technical parameters
Test bench brand |
CRS-6 common rail testbench |
Spindle speed range (r / mi |
0~3000 |
direction of rotation |
forward reverse |
the injectors number of testing |
1~6 |
|
the distance from spindel to bench (milimeter ) |
125 |
|
Oil amount of oil fuel system(L / min) (optional)
|
≥6 |
oil supply pressure(MPa) |
Low pressure ≥0.4 |
Cylinder capacity |
45ml/150ml |
|
return oil capacity capacityamountamount oiloilamount |
45ml/150ml |
Fuel temperature control(℃) |
40±2 |
Self-priming pump suction pressure measurement(Mpa ) |
-0.1~0 |
DRV measuring cylinder capacity |
250ml |
Rail High Pressure (MPa) |
0~180 |
Common Rail High Pressure (MPa) |
0~200 |
|
Dimensions (cm) (L * W * H) |
210*100*175 |
our workshop;
