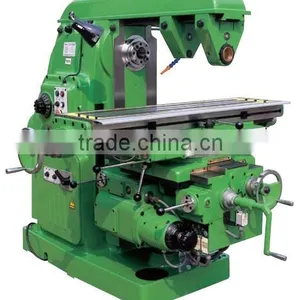

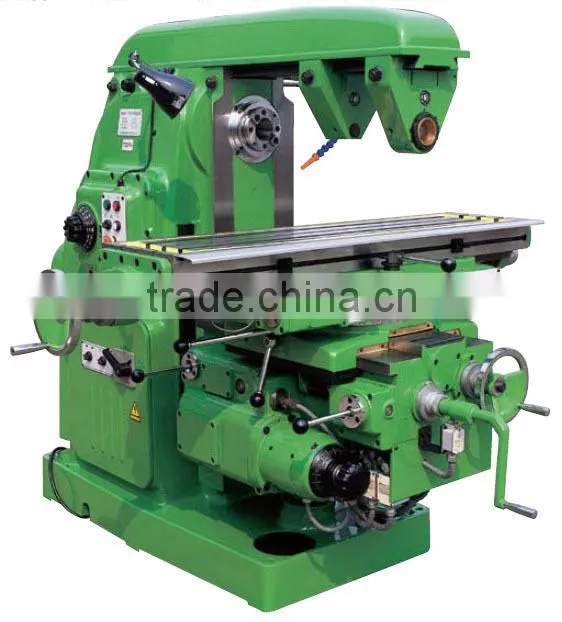

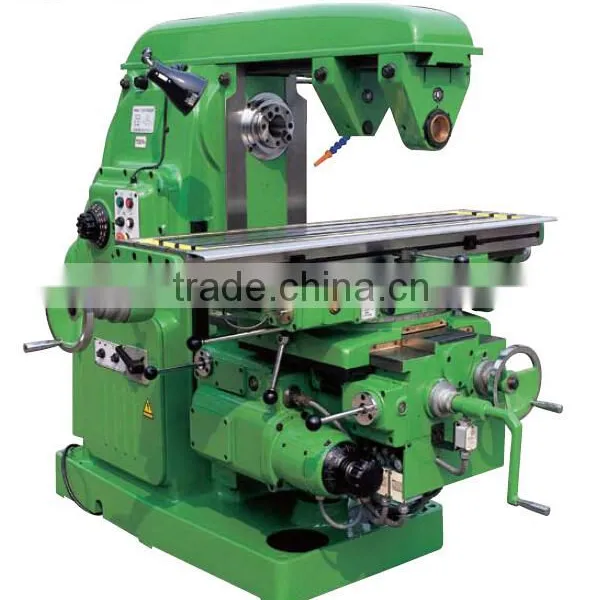

Universal machine X6132 Universal knee-type milling machine
NO. |
Item |
Units |
Specifications |
1 |
Table size |
mm |
1320×320 |
2 |
Number/Width/Distance of T-slot |
mm |
3-18-70 |
3 |
Max. load of table |
kg |
500 |
4 |
Longitudinal travel (manual/auto) |
mm |
700/680 |
5 |
Transverse travel (manual/auto) |
mm |
255/240 |
6 |
Vertical travel (manual/auto) |
mm |
320/300 |
7 |
Cutting feed speed |
mm/min |
X,Y: 23.5-1180, Z: 8-394 |
8 |
Rapid feed speed |
mm/min |
X: 2300, Y: 2300, Z: 770 |
9 |
Spindle speed range |
rpm |
30-1500 |
10 |
Spindle speed step |
steps |
18 |
11 |
Distance from spindle axis to table surface |
mm |
30/350 |
12 |
Spindle motor power |
kw |
7.5 |
13 |
Overall dimension |
mm |
2294×1770×1665 |
14 |
Machine weight |
kg |
2650 |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
If you are interested in our products, welcome to leave a message or send the inquiry to understand the details of machine.
