Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation

Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation thumbnail-1
Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation thumbnail-2
Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation thumbnail-3
Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation thumbnail-4
Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation thumbnail-5
Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation photo-1
Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation photo-2
Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation photo-3

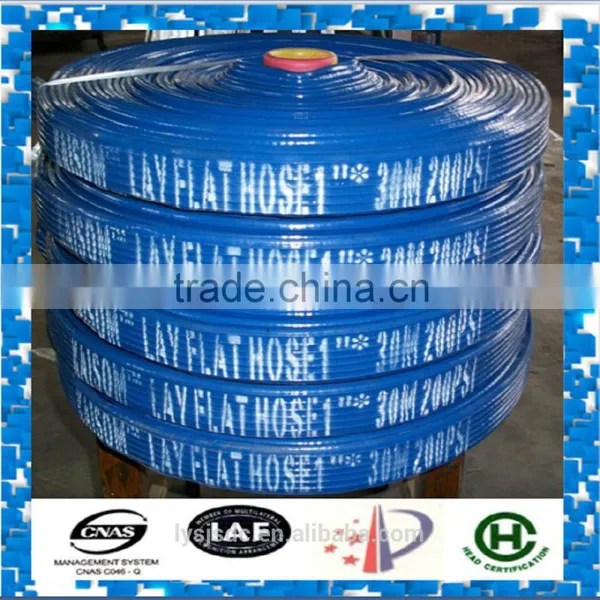

Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation photo-4

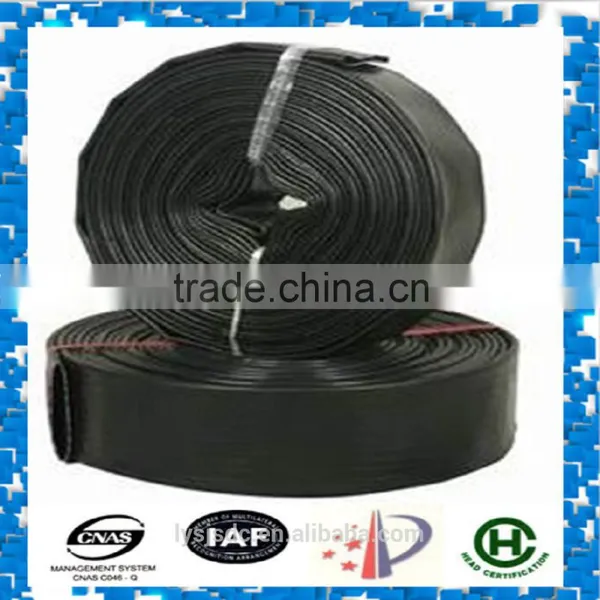

Colorful Transparent 300mm Layflat Hose Pipe in Forestry and Agriculture Irrigation photo-5
US$ 0.3 - 10 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
sanjiang
Model Number:
2bar-48bar
Contact Supplier Request Quote Chat Now
Linyi Saijun Pipe Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name sanjiang
Model Number 2bar-48bar
Material PVC
Specification 1''-12''
Length 200m
Thickness 2-6mm
Standard enterprise standard

                                              colorful layflat hose pipe in forestry and agriculture irrigation

•Application:

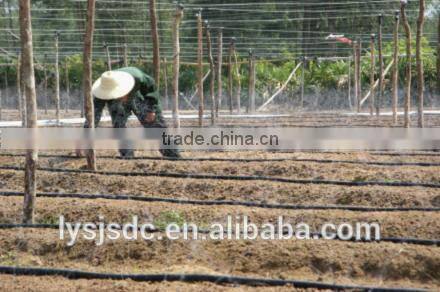

 •Agriculture: irrigation, mobile sprinkler, drip irrigation

 •Mine: emergency drainage, water supply

 •Construction:  temporary water supply

 •Industry:  sewage, aeration

 •Oil well washing to remove sediment

 •Long distance water supply for the exploitation of shale gas

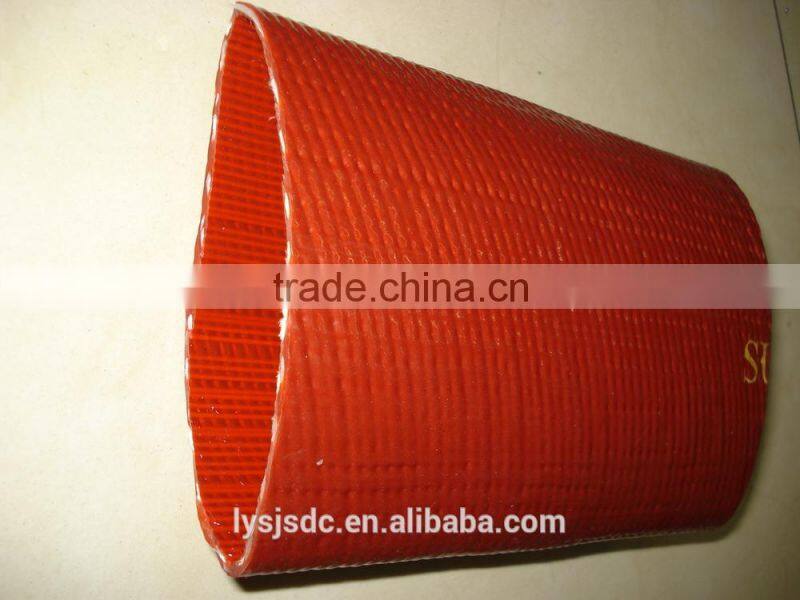

 Lay Flat Hose



colorful transparent 300mm layflat hose pipe in forestry and agriculture irrigationcolorful transparent 300mm layflat hose pipe in forestry and agriculture irrigation



Our layflat hose are produced by high strength industrial polyester yarn and the best quality of PVC/TPU. The one-time forming product is anti high pressure, anti wear, anti corrosion, anti aging, anti freeze. It is also impermeable water, non toxic, light and soft, and long service life!


 Specification about Lay Flat Hose

inside diameter wall thickness    mm
mm inch 0.2 MPa 0.4 MPa 0.6 MPa 0.8 MPa 1.0MPa 1.5MPa 2.0 MPa 2.5MPa
25.4 1 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8
38.1 1 1/2 1.4 1.6 1.8 2 2.2 2.4 2.6 2.8
50.8 2 1.4 1.6 1.8 2 2.2 2.4 2.6 3
63.5 2 1/2 1.4 1.7 2 2.2 2.4 2.6 2.8 3.2
76.2 3 1.5 1.8 2.1 2.3 2.5 2.8 3 3.2
101.6 4 1.5 1.8 2.1 2.3 2.5 2.8 3 3.2
127 5 1.5 1.8 2.1 2.3 2.5 2.8 3
152.4 6 1.6 2 2.2 2.5 2.8 3 3.2
203.2 8 1.8 2.3 2.5 2.8 3 3.2
254 10 2 2.3 2.8 3 3.2
304.8 12 2.4 2.8 3 3.2 3.4
inside diameter weight    kg
mm inch 0.2 MPa 0.4 MPa 0.6 MPa 0.8 MPa 1.0 MPa 1.5MPa 2.0MPa 2.5 MPa
25.4 1 0.154 0.176 0.198 0.220 0.242 0.264 0.286 0.308
38.1 1 1/2 0.231 0.264 0.297 0.330 0.363 0.396 0.429 0.462
50.8 2 0.308 0.352 0.396 0.440 0.484 0.528 0.572 0.616
63.5 2 1/2 0.385 0.467 0.549 0.604 0.659 0.714 0.769 0.824
76.2 3 0.461 0.593 0.692 0.758 0.823 0.922 0.988 1.054
101.6 4 0.660 0.792 0.924 1.012 1.100 1.232 1.320 1.408
127 5 0.825 0.990 1.155 1.265 1.375 1.540 1.650 1.760
152.4 6 1.054 1.318 1.450 1.648 1.845 1.977 2.109
203.2 8 1.500 1.917 2.083 2.330 2.500 2.670
254 10 2.000 2.600 2.800 3.000 3.200
304.8 12 2.710 3.162 3.388 3.614 3.840
inside diameter volume m^3
mm inch 0.2 MPa 0.4 MPa 0.6 MPa 0.8 MPa 1.0 MPa 1.5MPa 2.0MPa 2.5 MPa
25.4 1 0.000231 0.000264 0.000297 0.000330 0.000363 0.000396 0.000429 0.000462
38.1 1 1/2 0.000347 0.000396 0.000446 0.000495 0.000545 0.000595 0.000644 0.000694
50.8 2 0.000462 0.000529 0.000595 0.000661 0.000727 0.000793 0.000859 0.000925
63.5 2 1/2 0.000578 0.000701 0.000824 0.000907 0.000989 0.001072 0.001155 0.001237
76.2 3 0.000692 0.000890 0.001039 0.001138 0.001236 0.001384 0.001483 0.001583
101.6 4 0.000991 0.001189 0.001387 0.001520 0.001652 0.001850 0.001982 0.002114
127 5 0.001239 0.001486 0.001734 0.001899 0.002065 0.002312 0.002477 0.002643
152.4 6 0.001583 0.001979 0.002177 0.002474 0.002770 0.002968 0.003167
203.2 8 0.002252 0.002878 0.003128 0.003498 0.003754 0.004009
254 10 0.003003 0.003904 0.004204 0.004505 0.004805
304.8 12 0.004069 0.004748 0.005087 0.005426 0.005766



•Features of Lay Flat Hose
•Quick installation, mobile use, rolling
•High pressure, abrasion resistance, temperature resistance, anti-aging
•Different colors available

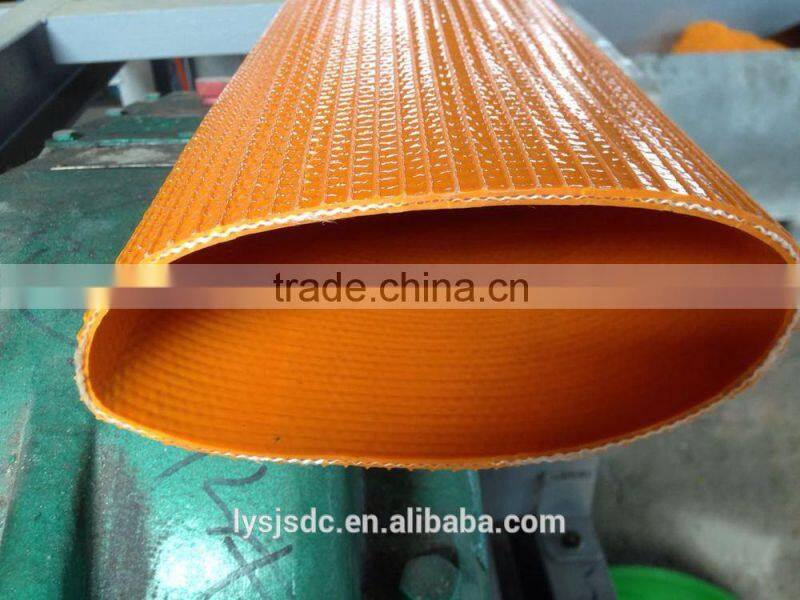

High pressure PVC/TPU lay flat hose-Patent No.200920163127x

We develop a new product-high pressure lay flat hose according market demand, which is updated from the agriculture irrigation lay flat hose. It has advantages of safety and environment protection, non-toxic, wide usage and powerful high pressure resistance. Tha max pressure is 30-90 MPa. It is applicable in the condition of oil proof, wearing proof, acid-alkali proof and high temperature proof, etc.

colorful transparent 300mm layflat hose pipe in forestry and agriculture irrigation

colorful transparent 300mm layflat hose pipe in forestry and agriculture irrigation



Ordinary working pressure lay flat hose for agriculture

colorful transparent 300mm layflat hose pipe in forestry and agriculture irrigation

                     colorful transparent 300mm layflat hose pipe in forestry and agriculture irrigation

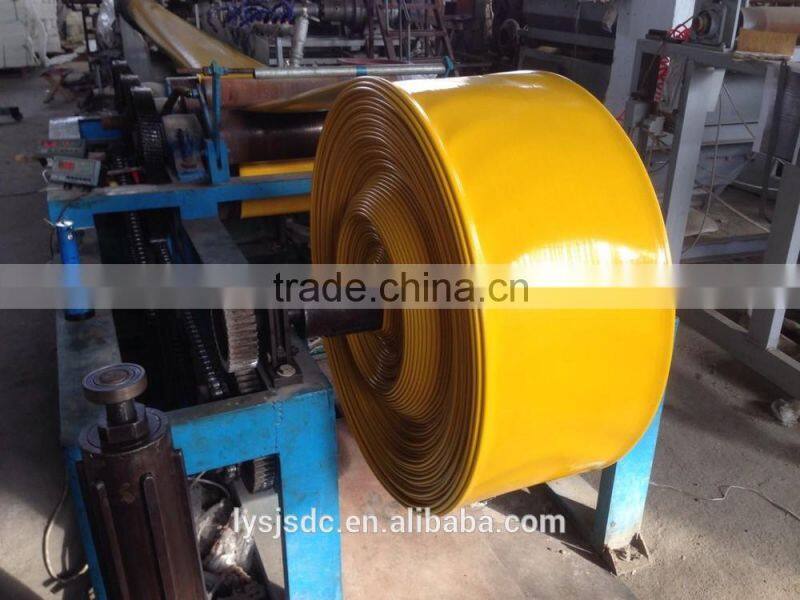

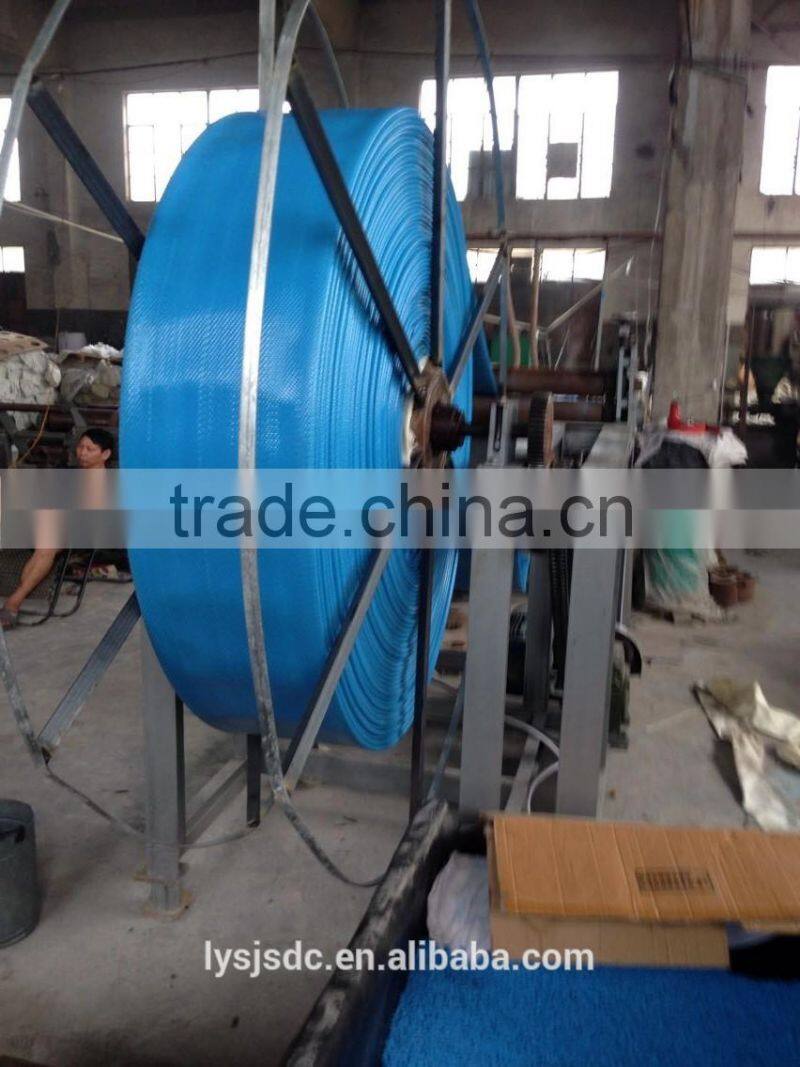

 Production Line

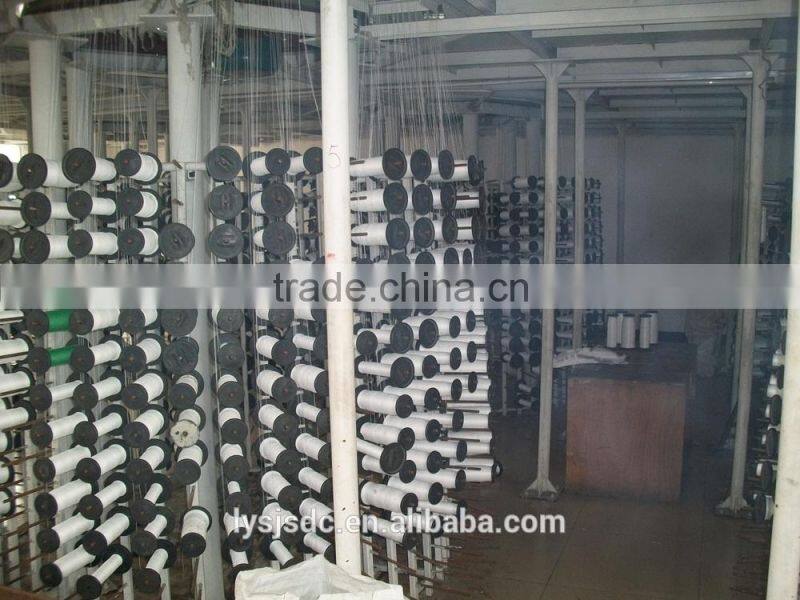

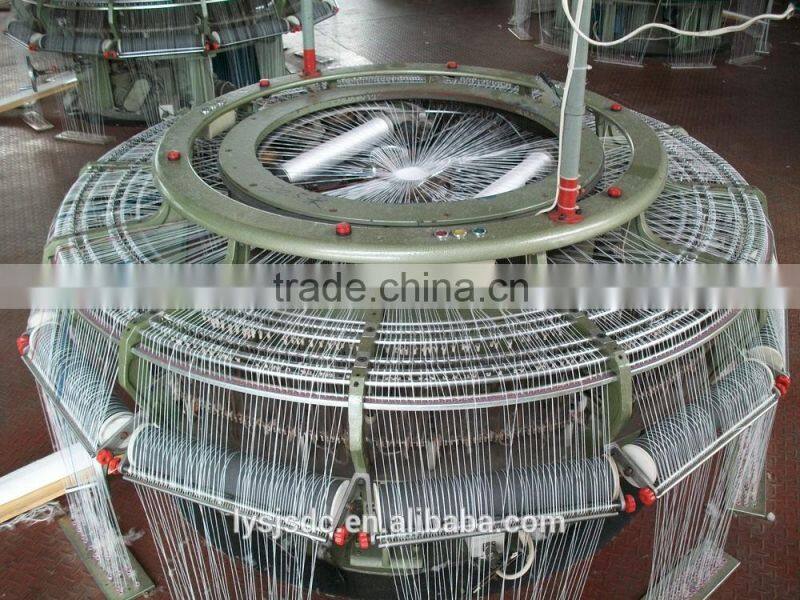

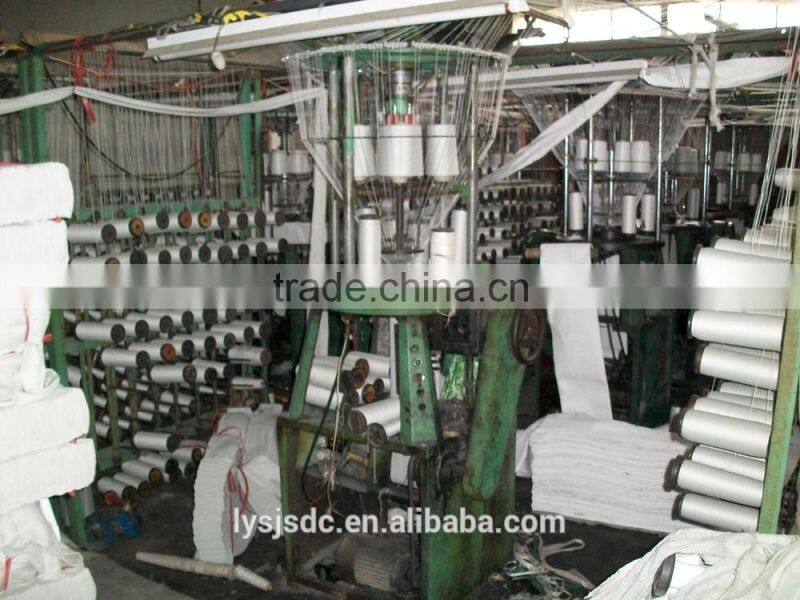

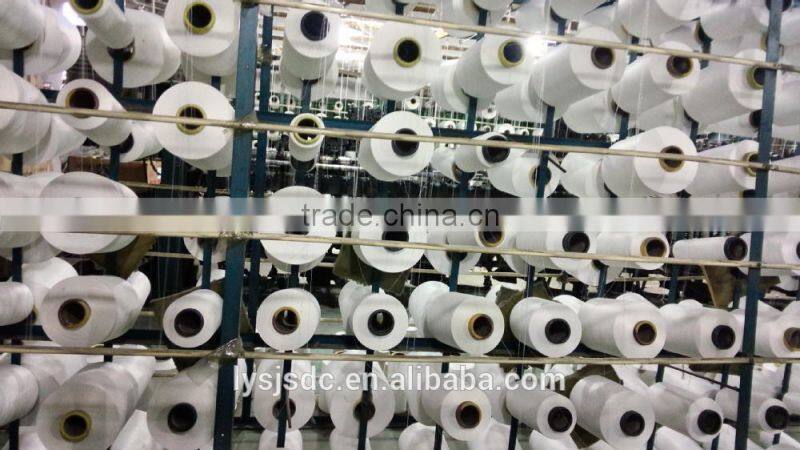

Inner Reinforcement -Industrial Polyester Yarn

It is used by high strength industrial polyester yarn, twisted with shares and woven in circulation.

colorful transparent 300mm layflat hose pipe in forestry and agriculture irrigationcolorful transparent 300mm layflat hose pipe in forestry and agriculture irrigationcolorful transparent 300mm layflat hose pipe in forestry and agriculture irrigationcolorful transparent 300mm layflat hose pipe in forestry and agriculture irrigation

colorful transparent 300mm layflat hose pipe in forestry and agriculture irrigation

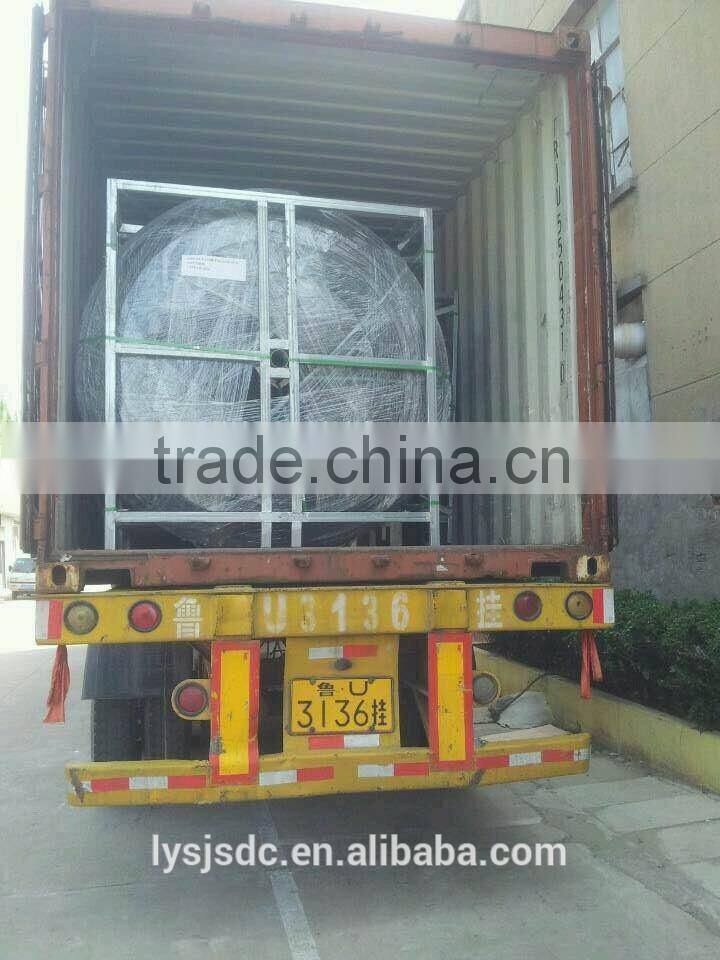

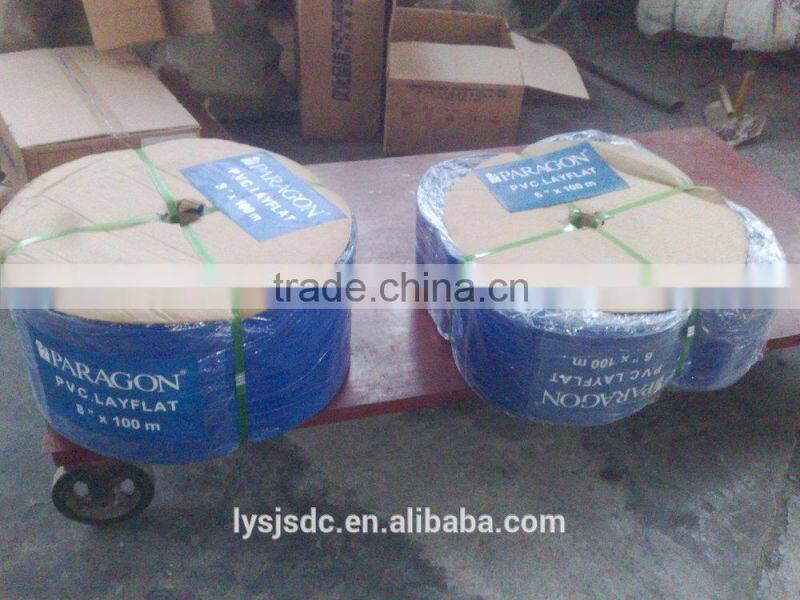

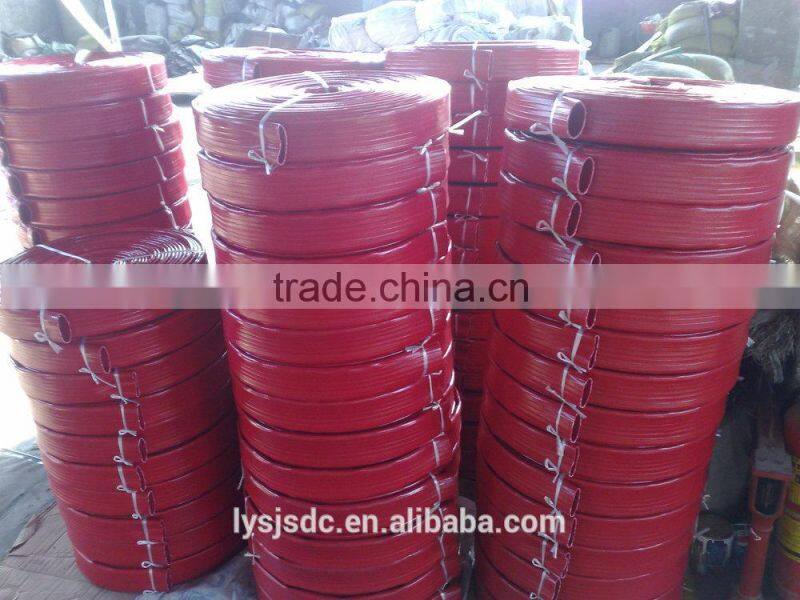

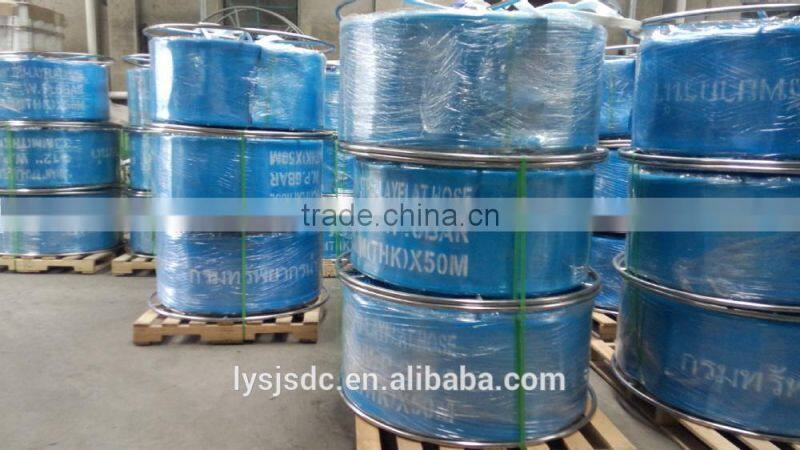

Packing:

colorful transparent 300mm layflat hose pipe in forestry and agriculture irrigationcolorful transparent 300mm layflat hose pipe in forestry and agriculture irrigationcolorful transparent 300mm layflat hose pipe in forestry and agriculture irrigation



Contact Us:

Should you need any other information, please feel free to let me know.

Tel:15762983159

TM:cn1512417922

WhatsApp:008615762983159
