Help CenterPVC - RUBBER PIPE
US$ 0.3 - 10
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
sanjiang
Model Number:
2bar-48bar
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Side Tape Material High Pressure PVC Layflat HoseUS$ 0.3 - 10MOQ: 1000 Meters -
Two Layers 6 Bar Lay Flat Hose Professional ManufacturerUS$ 0.3 - 10MOQ: 1000 Meters
-
Large Diameter High Pressure Hose Linyi Saijun PipeUS$ 0.3 - 10MOQ: 1000 Meters
-
Green 2 Inch Soft Pvc Pipe for Water SupplyUS$ 0.3 - 10MOQ: 1000 Meters
-
Flexible Pvc Water Lay Flat Hose Pvc Pipe 12 Inch Professional ManufacturerUS$ 0.3 - 10MOQ: 1000 Meters
Place of Origin
Shandong, China
Brand Name
sanjiang
Model Number
2bar-48bar
Material
PVC
Specification
1''-12''
Length
200m
Thickness
2-6mm
Standard
enterprise standard

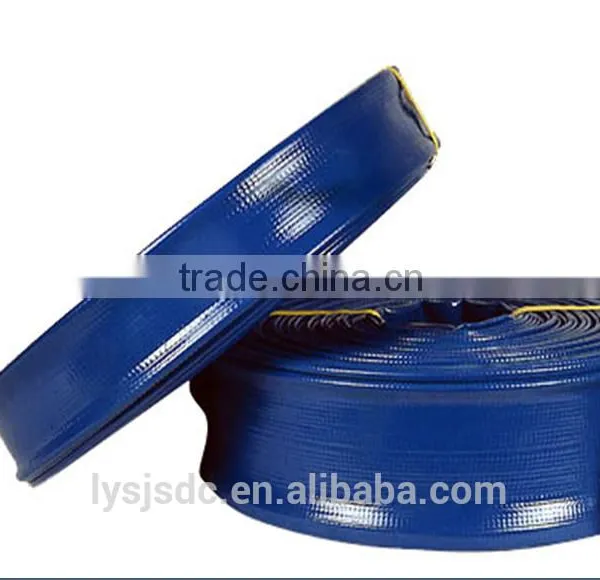

Pictures of Lay Flat Hose
Specification about Lay Flat Hose
| inside diameter | wall thickness mm | ||||||||
| mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
| 25.4 | 1 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
| 38.1 | 1 1/2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
| 50.8 | 2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 3 |
| 63.5 | 2 1/2 | 1.4 | 1.7 | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3.2 |
| 76.2 | 3 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
| 101.6 | 4 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
| 127 | 5 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | |
| 152.4 | 6 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.2 | |
| 203.2 | 8 | 1.8 | 2.3 | 2.5 | 2.8 | 3 | 3.2 | ||
| 254 | 10 | 2 | 2.3 | 2.8 | 3 | 3.2 | |||
| 304.8 | 12 | 2.4 | 2.8 | 3 | 3.2 | 3.4 | |||
| inside diameter | weight kg | ||||||||
| mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0 MPa | 1.5MPa | 2.0MPa | 2.5 MPa |
| 25.4 | 1 | 0.154 | 0.176 | 0.198 | 0.220 | 0.242 | 0.264 | 0.286 | 0.308 |
| 38.1 | 1 1/2 | 0.231 | 0.264 | 0.297 | 0.330 | 0.363 | 0.396 | 0.429 | 0.462 |
| 50.8 | 2 | 0.308 | 0.352 | 0.396 | 0.440 | 0.484 | 0.528 | 0.572 | 0.616 |
| 63.5 | 2 1/2 | 0.385 | 0.467 | 0.549 | 0.604 | 0.659 | 0.714 | 0.769 | 0.824 |
| 76.2 | 3 | 0.461 | 0.593 | 0.692 | 0.758 | 0.823 | 0.922 | 0.988 | 1.054 |
| 101.6 | 4 | 0.660 | 0.792 | 0.924 | 1.012 | 1.100 | 1.232 | 1.320 | 1.408 |
| 127 | 5 | 0.825 | 0.990 | 1.155 | 1.265 | 1.375 | 1.540 | 1.650 | 1.760 |
| 152.4 | 6 | 1.054 | 1.318 | 1.450 | 1.648 | 1.845 | 1.977 | 2.109 | |
| 203.2 | 8 | 1.500 | 1.917 | 2.083 | 2.330 | 2.500 | 2.670 | ||
| 254 | 10 | 2.000 | 2.600 | 2.800 | 3.000 | 3.200 | |||
| 304.8 | 12 | 2.710 | 3.162 | 3.388 | 3.614 | 3.840 | |||
| inside diameter | volume m^3 | ||||||||
| mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0 MPa | 1.5MPa | 2.0MPa | 2.5 MPa |
| 25.4 | 1 | 0.000231 | 0.000264 | 0.000297 | 0.000330 | 0.000363 | 0.000396 | 0.000429 | 0.000462 |
| 38.1 | 1 1/2 | 0.000347 | 0.000396 | 0.000446 | 0.000495 | 0.000545 | 0.000595 | 0.000644 | 0.000694 |
| 50.8 | 2 | 0.000462 | 0.000529 | 0.000595 | 0.000661 | 0.000727 | 0.000793 | 0.000859 | 0.000925 |
| 63.5 | 2 1/2 | 0.000578 | 0.000701 | 0.000824 | 0.000907 | 0.000989 | 0.001072 | 0.001155 | 0.001237 |
| 76.2 | 3 | 0.000692 | 0.000890 | 0.001039 | 0.001138 | 0.001236 | 0.001384 | 0.001483 | 0.001583 |
| 101.6 | 4 | 0.000991 | 0.001189 | 0.001387 | 0.001520 | 0.001652 | 0.001850 | 0.001982 | 0.002114 |
| 127 | 5 | 0.001239 | 0.001486 | 0.001734 | 0.001899 | 0.002065 | 0.002312 | 0.002477 | 0.002643 |
| 152.4 | 6 | 0.001583 | 0.001979 | 0.002177 | 0.002474 | 0.002770 | 0.002968 | 0.003167 | |
| 203.2 | 8 | 0.002252 | 0.002878 | 0.003128 | 0.003498 | 0.003754 | 0.004009 | ||
| 254 | 10 | 0.003003 | 0.003904 | 0.004204 | 0.004505 | 0.004805 | |||
| 304.8 | 12 | 0.004069 | 0.004748 | 0.005087 | 0.005426 | 0.005766 | |||
Notice:
Our layflat hose are produced by high strength polyester industrial filament and the best quality of PVC/TPU. The one-time forming product is anti high pressure, anti wear, anti corrosion, anti aging, anti freeze. It is also impermeable water, non toxic, light and soft, and long service life!
What We Supply:
•PVC Fiber Reinforcement Lay Flat Hose
•Abrasion Resistant Agriculture Lay Flat Hose
•Compressive Mining Lay Flat Hose
•Large Diameter Irrigation Lay Flat Hose
•
•TPU Material Smooth Lay Flat Hose
•Anti Ultraviolet Lay Flat Hose
•High Pressure Fire Fighting Lay Flat Hose
•Aeration Environmental Lay Flat Hose
•
•PVC Mixed With Nitrile Rubber Lay Flat Hose
•Shale Gas Exploitation Large Size Lay Flat Hose
•
•Connector For Lay Flat Hose
•PVC Tablet
PVC/TPU Resin
