Help CenterTransparent and Flexible PVC Suction Hose/ Steel Wire Suction Hose
Related Products
-
Flexible PVC Sucthion Hose/ PVC Spring HoseUS$ 1.5 - 2MOQ: 1 -
Pvc Ribbed Flexible Hose/ PVC Suction HoseUS$ 1.8 - 2.8MOQ: 500 Meters
-
Transparent Pvc Corrugated HoseUS$ 1.8 - 2.8MOQ: 500 Meters
-
Pvc Water Pump Suction HoseUS$ 1.8 - 2.8MOQ: 500 Meters
-
PVC Suction Hose/pvc Corrugated HoseUS$ 1.8 - 2.8MOQ: 500 Meters

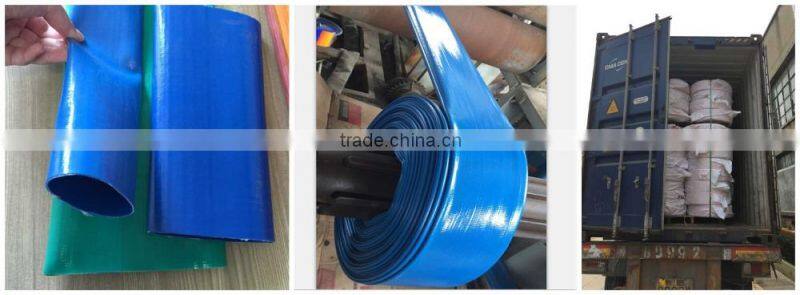

PVC LAYFLAT HOSE
This hose is designed as a standard duty hose for water discharge in Agricultural Irrigation, industrial and construction applications, and is economical and rolls up flat for easy and storage, resists kinking and twisting.
Tube: PVC compound
Cover:PVC compound
Reinforcement: High strength polyester yarn jacket
Temperature: -20 to +80 degree
|
Inch |
Diameter (mm) |
Thickness (mm) |
W.P. (Bar) |
B.P. (Bar) |
Length (m/roll) |
1 |
25.4 |
1.4-2.2 |
2-10 |
6-30 |
200m max
|
|
1 1/2 |
38.1 |
1.4-2.2 |
2-10 |
6-30 |
||
2 |
50.8 |
1.4-2.4 |
2-10 |
6-30 |
||
2 1/2 |
63.5 |
1.5-2.4 |
2-10 |
6-30 |
||
3 |
76.2 |
1.5-2.5 |
2-10 |
6-30 |
||
4 |
102 |
1.5-2.6 |
2-10 |
6-30 |
||
5 |
127 |
1.5-2.6 |
2-10 |
6-30 |
||
6 |
152 |
1.6-2.8 |
2-10 |
6-30 |
||
8 |
203 |
1.8-3.0 |
2-10 |
6-30 |
||
10 |
254 |
2.0-3.2 |
2-10 |
6-30 |
||
12 |
304 |
2.4-3.4 |
2-10 |
6-30 |

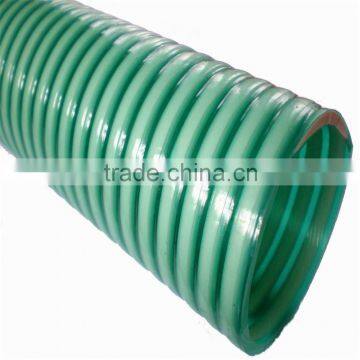

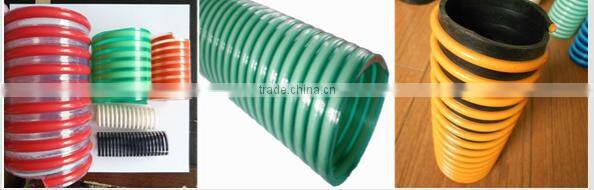

PVC suction hose
|
Size (inch) |
I.D. (mm) |
O.D. (mm) |
W.P. (Bar) |
B.P. (Bar) |
Packing size |
1’’ |
25 |
30 |
8 |
24 |
0.3x0.5x0.3m |
1-1/4’’ |
32 |
39 |
7 |
21 |
0.3x0.61x0.36m |
1-1/2’’ |
38 |
45 |
6 |
18 |
0.3x0.65x0.43m |
2’’ |
50 |
58 |
6 |
18 |
0.8x1.1x0.25m |
2-1/2’’ |
63 |
71 |
5 |
15 |
0.8x1.2x0.28m |
3’’ |
75 |
84 |
4 |
12 |
1.45x1.8x0.26m |
4’’ |
102 |
112 |
4 |
12 |
1.70x2.35x0.33m |
5’’ |
125 |
136 |
4 |
12 |
1.75x2.35x0.4m |
6’’ |
152 |
166 |
3 |
9 |
1.85x2.35x0.50m |

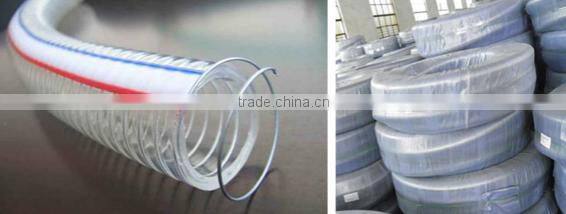

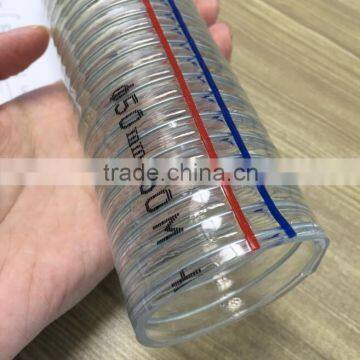

PVC steel wire suction hose
Inch |
I.D. (mm) |
O.D. (mm) |
Length (m/roll) |
W.P. (Bar) |
5/16 |
8 |
13 |
100 |
8 |
3/8 |
9 |
15 |
100 |
8 |
3/8 |
10 |
16 |
100 |
8 |
1/2 |
12 |
18 |
100 |
6 |
5/8 |
15 |
22 |
100 |
6 |
5/8 |
16 |
23 |
100 |
6 |
3/4 |
19 |
26 |
50 |
5 |
1 |
25 |
33 |
50 |
4 |
1-1/4 |
32 |
41 |
50 |
4 |
1-1/2 |
38 |
48 |
50 |
4 |
1-3/4 |
45 |
55 |
50 |
4 |
2 |
50 |
62 |
50 |
4 |
2-3/8 |
58 |
68 |
50 |
4 |
2-1/2 |
64 |
80 |
30 |
4 |
3 |
75 |
92 |
30 |
3 |
3-1/2 |
90 |
108 |
30 |
3 |
4 |
102 |
120 |
30 |
3 |
5 |
125 |
145 |
30 |
3.5 |
6 |
152 |
172 |
30 |
3.5 |
