irrigation hose/pvc hose pipe/pvc irrigation hose

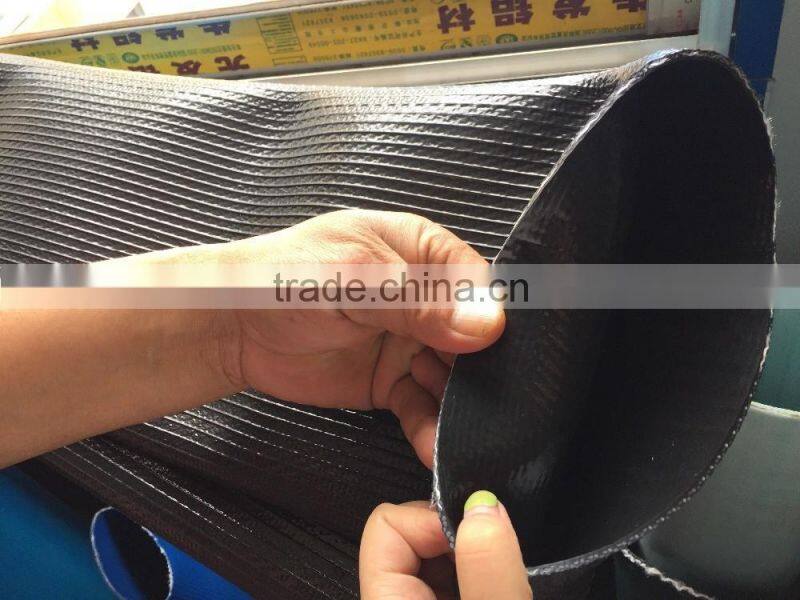

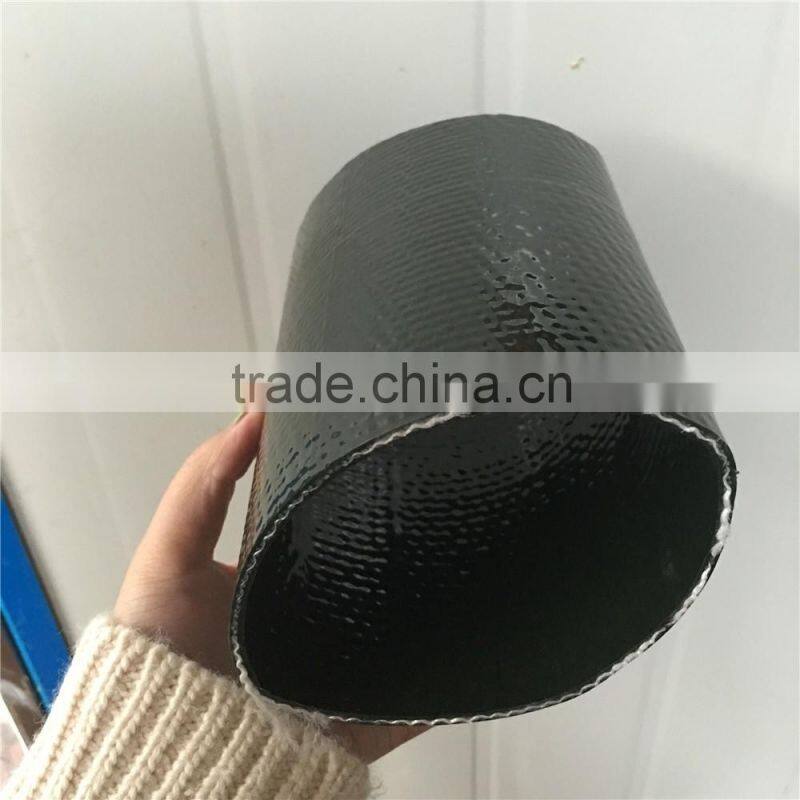

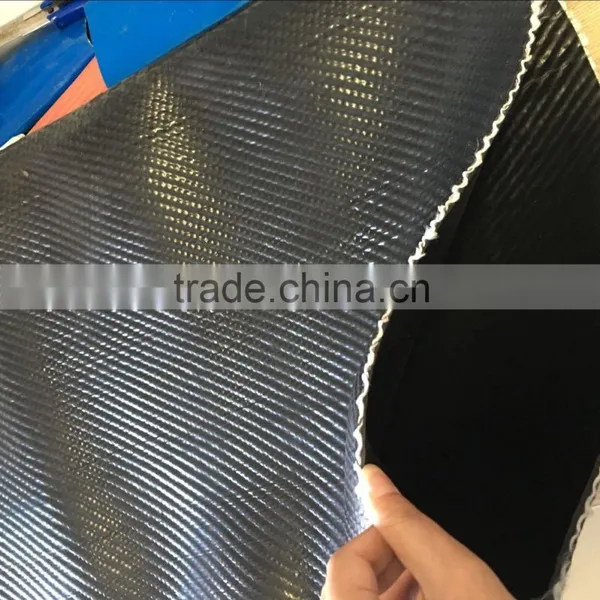

Heavy Duty(PVC WITH NITRILE RUBBER)
is a ribbed black nitrile oil resistant discharge lay-flat hose.
It is lighter and less bulky than most rubber discharge hoses. and resist abrasion and weathering.
Used in many varied applications, with limited oil and chemical use.
Resisting kinking and stretching while in service.
| Inch | I.D(mm) | Thickness(mm) | W.P(bar) | B.P(bar) |
| 1 | 26.5-28 | 2.2-2.8 | 10-25 | 30-75 |
| 1 1/2 | 39.5-41 | 2.2-2.8 | 10-25 | 30-75 |
| 2 | 52.5-54 | 2.2-3.0 | 10-25 | 30-75 |
| 2 1/2 | 66-67.5 | 2.2-3.5 | 10-25 | 30-75 |
| 3 | 79-81 | 2.2-3.5 | 10-25 | 30-75 |
| 4 | 103.5-106 | 2.2-4.0 | 10-25 | 30-75 |
| 5 | 129.5-132 | 2.2-4.0 | 10-25 | 30-75 |
| 6 | 155.5-158 | 2.2-4.0 | 10-15 | 30-45 |
| 8 | 204-207 | 2.2-4.0 | 10-15 | 30-45 |
| 10 | 256-259 | 3.0-4.0 | 10 | 30 |
| 12 | 302-305 | 3.0-4.0 | 10 | 30 |
TPU Lay flat hose
Cover and Lining: PU, Ribbed cover or smooth cover
Reinforcement Jacket: High-tenacity synthetic jacket
Color: Blue, Green,Black, Red or as you requested
Application:Irrigation, Pumping of sludge and liquid fertilizers, supply or drag hose
Available length: 30m (100ft), 61m(200ft), 91.5m (300ft), 100m (330ft) 200m(660ft) other length as requested
This hose is made from extruded thermoplastic polyester based polyurethane (TPU) with excellent wear & tear properties.
The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
This hose can operate in temperature range from -50 C deg to 80 C deg(-58 F deg to +176 F deg).
| Inch | I.D(mm) | Thickness(mm) | W.P(bar) | B.P(bar) |
| 2 | 51±2.0 | 2.5 | 20 | 60 |
| 2 1/2 | 65±2.0 | 2.8 | 20 | 60 |
| 3 | 76±2.0 | 3.0 | 18 | 54 |
| 4 | 102±2.0 | 3.5 | 13 | 39 |
| 5 | 127±2.0 | 4 | 13 | 39 |
| 5 | 127±2.0 | 6 | 15 | 45 |
| 6 | 152±3.0 | 4 | 13 | 39 |
| 6 | 152±3.0 | 4.5 | 15 | 45 |
| 6 | 152±3.0 | 7 | 25 | 75 |
| 8 | 201±3.0 | 4 | 10 | 30 |
| 8 | 201±3.0 | 4.5 | 13 | 39 |
| 10 | 250±3.0 | 4 | 10 | 30 |
| 10 | 250±3.0 | 4.5 | 13 | 39 |
| 12 | 302±4.0 | 6 | 10 | 30 |

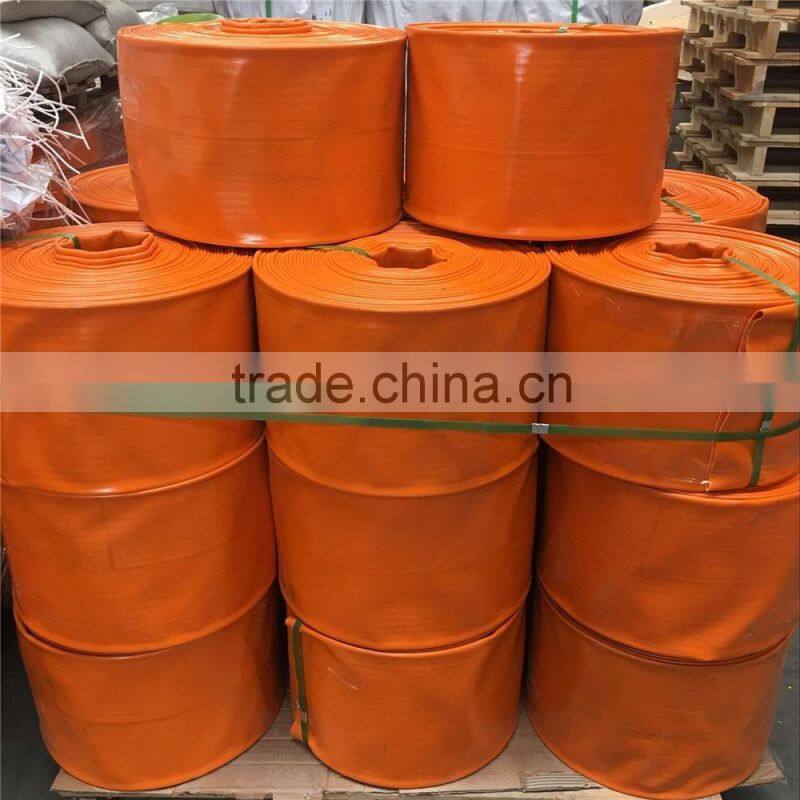

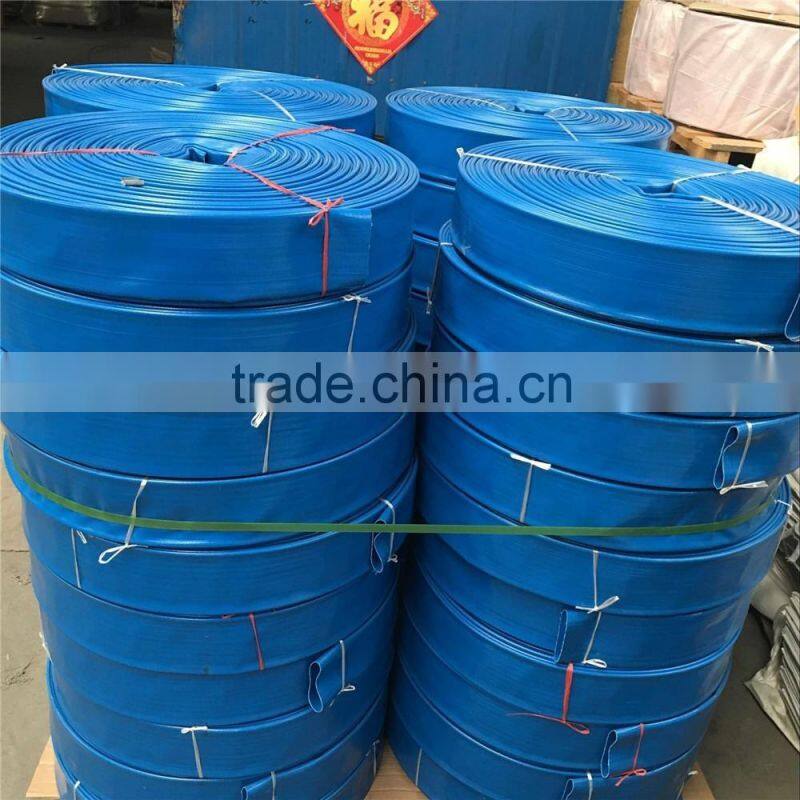

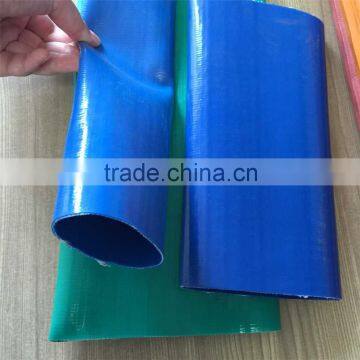

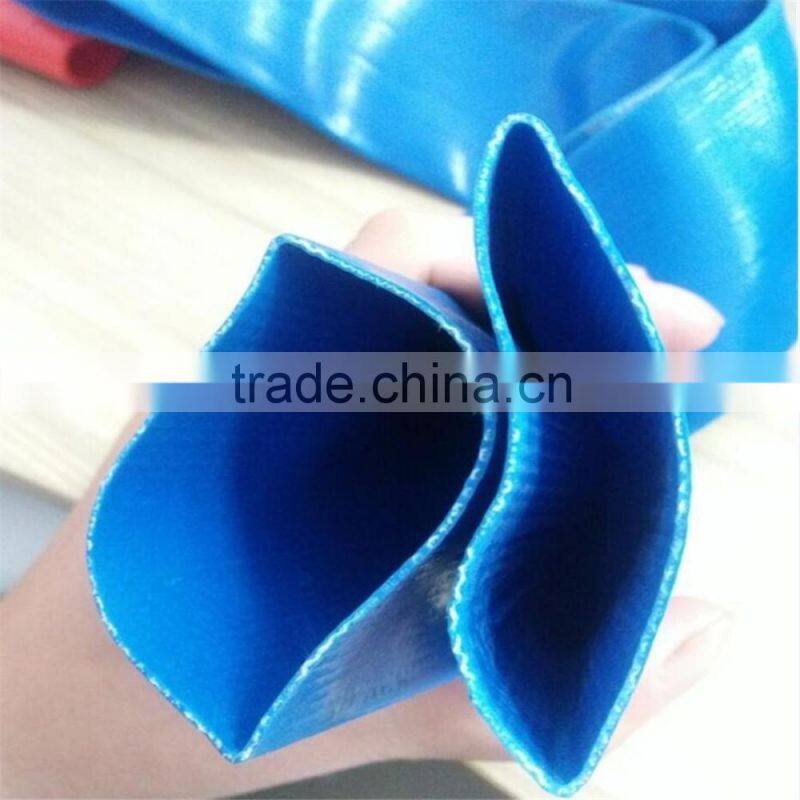

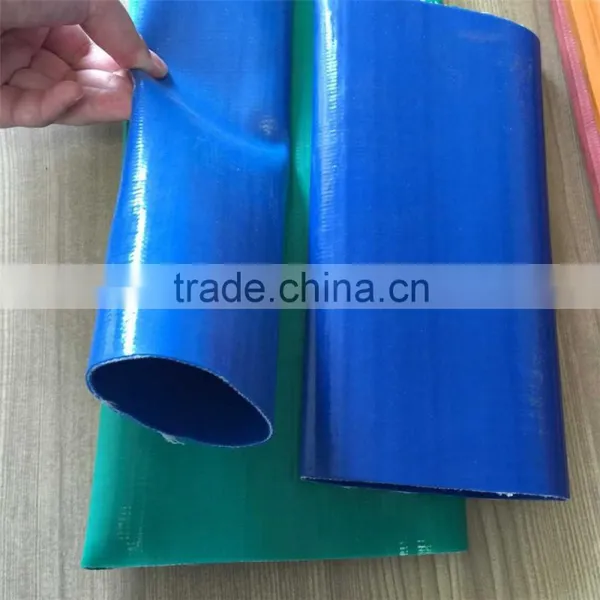

PVC Lay flat hose
Inner Tube and Cover:PVC
Reinforcement:High strength polyester
Application:The hose is a PVC discharge lay-flat hose that resists kinking and twisting.
This hose is designed as a standard duty hose for water discharge in industrial and construction applications,
and is economical and rolls up flat for easy and storage.
Temperature: -30 to +80degree
| Inch | I.D(mm) | Thickness(mm) | W.P(Bar) | B.P(Bar) |
| 1 | 25-26.5 | 1.4-2.2 | 2-10 | 6-30 |
| 1 1/4 | 32-33.5 | 1.4-2.2 | 2-10 | 6-30 |
| 1 1/2 | 38-40 | 1.4-2.2 | 2-10 | 6-30 |
| 2 | 51-52 | 1.4-2.4 | 2-10 | 6-30 |
| 2 1/2 | 63-65 | 1.5-2.4 | 2-10 | 6-30 |
| 3 | 76-77 | 1.5-2.5 | 2-10 | 6-30 |
| 4 | 102-103 | 1.5-2.6 | 2-10 | 6-30 |
| 5 | 127-128 | 1.5-2.6 | 2-10 | 6-30 |
| 6 | 152-155 | 1.6-2.8 | 2-10 | 6-30 |
| 8 | 203-206 | 1.8-3.0 | 2-10 | 6-30 |
| 10 | 254-255 | 2.0-3.2 | 2-10 | 6-30 |
| 12 | 304-306 | 2.4-3.4 | 2-10 | 6-30 |
1. Hose Specification
We can produce lay flat hose acording to your request on Inner Diameter, working pressure and length per roll.Before send you right quotation, pls kindly confirm with me.
2. About sample before order
We can supply 20-50cm free sample for your test or little longer, you just need to pay express freight or we can do freight collect.
3. MOQ
Usually our MOQ is 1000m each size, but for first cooperation we also accept little order, so any order is welcomed.

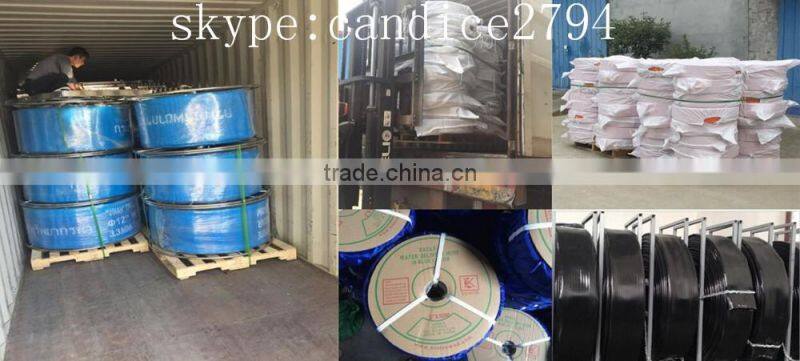

4.Shipping and delivery
We can send to you by sea/air/express according to you, ususally deliver within 7 working days after receive deposit.
5. About hose connector
we can also supply according to your request, following is our common connector:
Free to contact me:
SKYPE:candice2794
PH/Whatsapp:+8615216550902
QQ:1757304248
E-mail:candice at
