Home > Products > NBR Layflat Hose > anti abrasion working pressure oil rubber hose

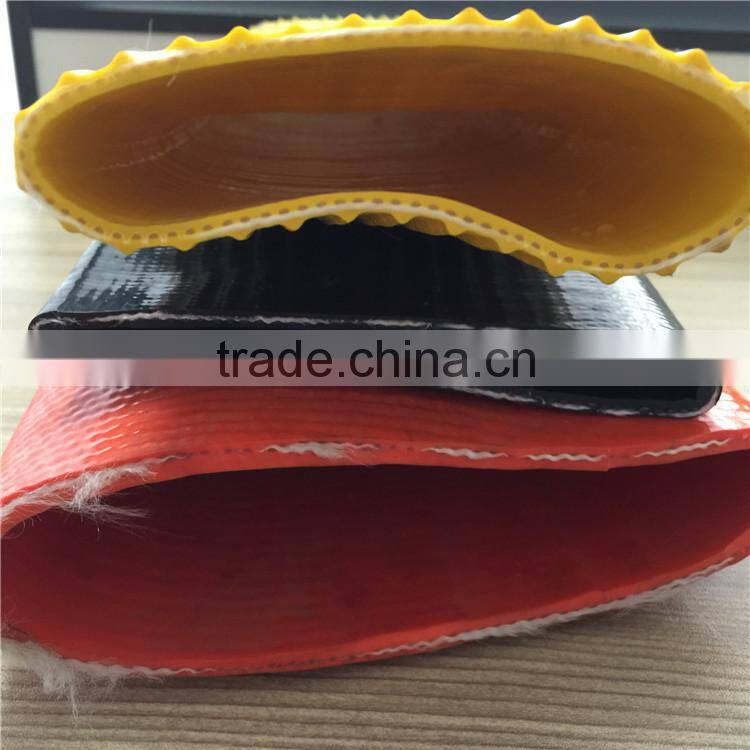

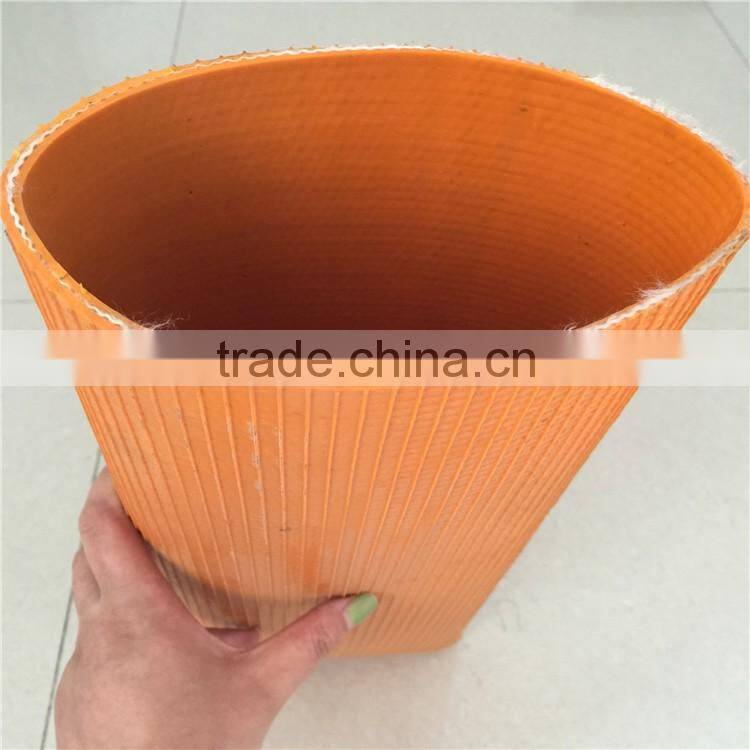

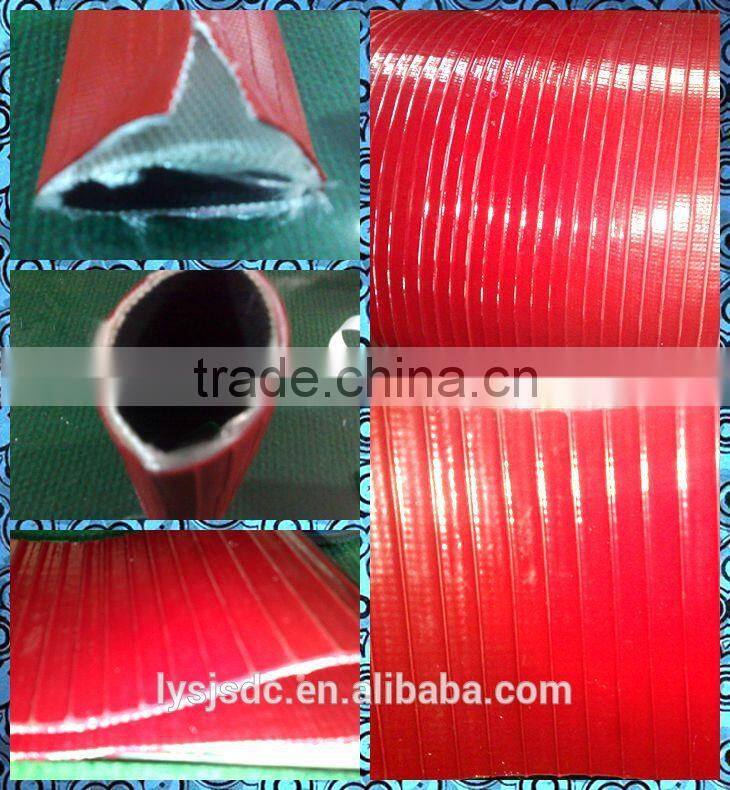

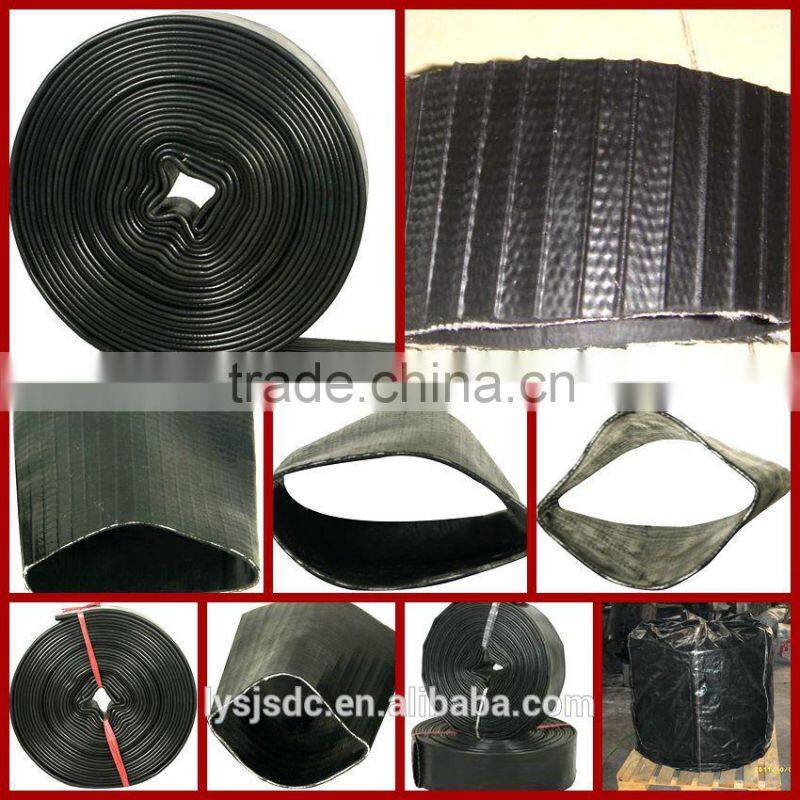

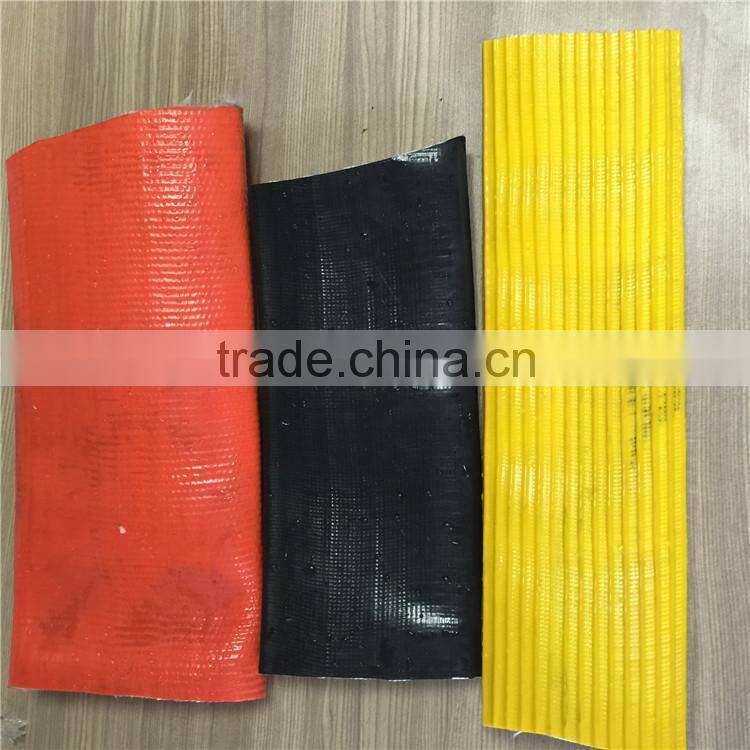

anti abrasion working pressure oil rubber hose
- 5000000 Meter / Meters per Month
- Qingdao
Product Details
Place of Origin: | Shandong, China | Brand Name: | shengding | Model Number: | 2bar-48bar |
Material: | PVC | Specification: | 1''-12'' | Length: | 200m |
Thickness: | 2-6mm | Standard: | enterprise standard |
Product Description
PVC-Nitrile rubber layflat hose
inside diameter | wall thickness mm | ||||||||
mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0MPa | 1.5MPa | 2.0 MPa | 2.5MPa |
25.4 | 1 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
38.1 | 1 1/2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 2.8 |
50.8 | 2 | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.4 | 2.6 | 3 |
63.5 | 2 1/2 | 1.4 | 1.7 | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3.2 |
76.2 | 3 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
101.6 | 4 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | 3.2 |
127 | 5 | 1.5 | 1.8 | 2.1 | 2.3 | 2.5 | 2.8 | 3 | |
152.4 | 6 | 1.6 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.2 | |
203.2 | 8 | 1.8 | 2.3 | 2.5 | 2.8 | 3 | 3.2 | ||
254 | 10 | 2 | 2.3 | 2.8 | 3 | 3.2 | |||
304.8 | 12 | 2.4 | 2.8 | 3 | 3.2 | 3.4 |
TPU Layflat Hose
TPU (Thermoplastic polyurethanes) is increasingly popular. It is proud of its superior performance and the concept of environmental protection. At present, TPU can become better substitute of PVC, with excellent abrasion resistance, oil resistance, temperature resistance.
inside diameter | weight kg | ||||||||
mm | inch | 0.2 MPa | 0.4 MPa | 0.6 MPa | 0.8 MPa | 1.0 MPa | 1.5MPa | 2.0MPa | 2.5 MPa |
25.4 | 1 | 0.154 | 0.176 | 0.198 | 0.220 | 0.242 | 0.264 | 0.286 | 0.308 |
38.1 | 1 1/2 | 0.231 | 0.264 | 0.297 | 0.330 | 0.363 | 0.396 | 0.429 | 0.462 |
50.8 | 2 | 0.308 | 0.352 | 0.396 | 0.440 | 0.484 | 0.528 | 0.572 | 0.616 |
63.5 | 2 1/2 | 0.385 | 0.467 | 0.549 | 0.604 | 0.659 | 0.714 | 0.769 | 0.824 |
76.2 | 3 | 0.461 | 0.593 | 0.692 | 0.758 | 0.823 | 0.922 | 0.988 | 1.054 |
101.6 | 4 | 0.660 | 0.792 | 0.924 | 1.012 | 1.100 | 1.232 | 1.320 | 1.408 |
127 | 5 | 0.825 | 0.990 | 1.155 | 1.265 | 1.375 | 1.540 | 1.650 | 1.760 |
152.4 | 6 | 1.054 | 1.318 | 1.450 | 1.648 | 1.845 | 1.977 | 2.109 | |
203.2 | 8 | 1.500 | 1.917 | 2.083 | 2.330 | 2.500 | 2.670 | ||
254 | 10 | 2.000 | 2.600 | 2.800 | 3.000 | 3.200 | |||
304.8 | 12 | 2.710 | 3.162 | 3.388 | 3.614 | 3.840 |
Application:
•Agriculture: irrigation, mobile sprinkler, drip irrigation
•Mine: emergency drainage, water supply
•Construction: temporary water supply
•Industry: sewage, aeration
•Oil well washing to remove sediment
•Long distance water supply for the exploitation of shale gas
Production Line
Inner Reinforcement -Industrial Polyester Yarn
It is used by high strength industrial polyester yarn, twisted with shares and woven in circulation.
Certification
Contact Us
Should you need any other information, please feel free to let me know.
Tel:15762983159
TM:cn1512417922
WhatsApp:008615762983159
Contact Us
- Linyi Saijun Pipe Co., Ltd.
- Contact nameFang Qiao
- Phone86-0539-7168563
- AddressHuasen Industrial Park Linxi 9th road Linyi,Shandong
