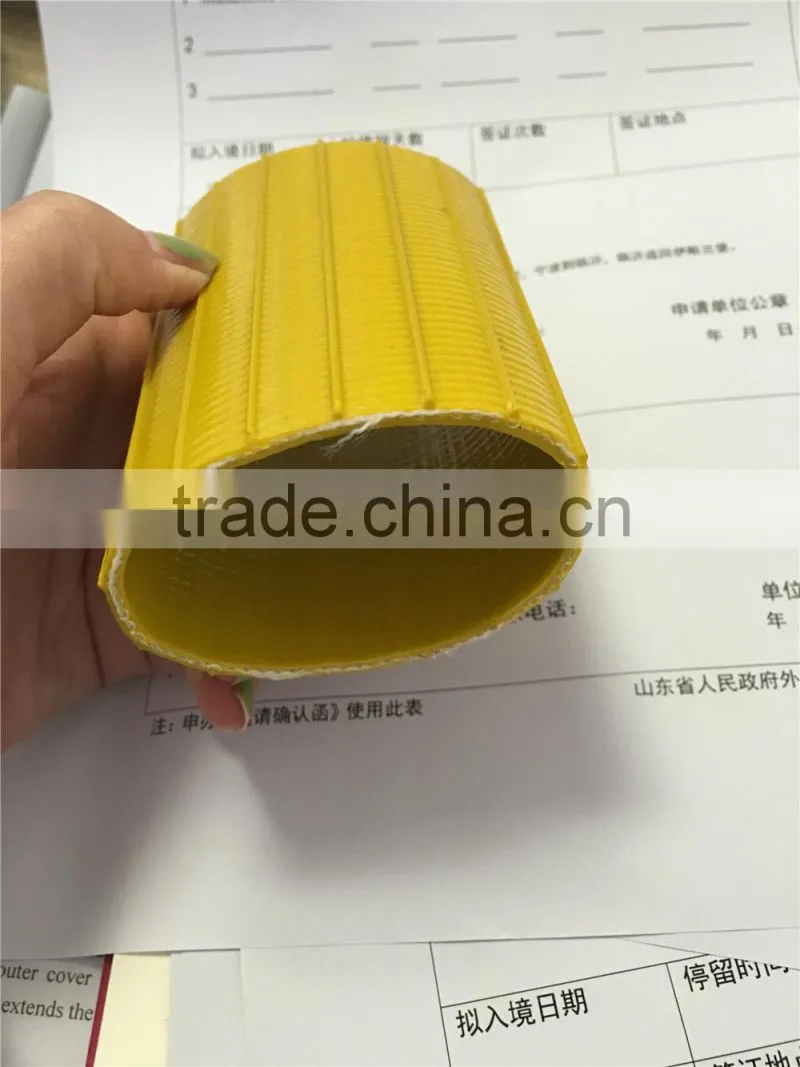

synthetic rubber oil delivery lay flat hose
- 5000000 Meter / Meters per Month
- Qingdao
- T/T Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | sanjiang | Model Number: | 2000psi |
Material: | Other, PVC with NBR | Specification: | 1''-8'' | Length: | 60 m |
Thickness: | 3.0mm | Standard: | enterprise standard |
Product Description
Layflat hose/Manure flow drag hose
synthetic rubber oil delivery lay flat hose
Material: 70%NBR and 30%PVC
Reinforcement: High strength polyester woven jacket
Tempertaure: -35 degree to +80 degree
Length: 30m, 60m
PVC-Nitrile Rubber Lay Flat Hose(30%PVC and 70% Nitrile Rubber)
Construction: Circular polyester weave extruded internally and
externally with NBR-PVC.
Hose shall be made from 100% high tenacity synthetic yarn circular woven
and completely, protected and locked-in by tough highly resistant
synthetic nitrile rubber, forming a single homogenous construction without
the use of glues or adhesives of any type.
Inner Diameter | Wall Thickness | Working Pressure | Burst Pressure | Strength Tensile | |
Inch | mm | mm | psi | psi | kg |
1 | 25.4 | 2.2 | 300 | 900 | 2286 |
1 | 25.4 | 2.5 | 400 | 1200 | 2286 |
1 1/2 | 38.1 | 2.2 | 200 | 600 | 2858 |
1 1/2 | 38.1 | 2.8 | 300 | 900 | 3429 |
2 | 50.8 | 2.4 | 200 | 600 | 4000 |
2 | 50.8 | 3.0 | 300 | 900 | 4572 |
2 1/2 | 63.5 | 2.5 | 175 | 525 | 4572 |
2 1/2 | 63.5 | 3.0 | 300 | 900 | 5715 |
3 | 76.2 | 2.7 | 175 | 525 | 6286 |
3 | 76.2 | 3.2 | 250 | 750 | 7143 |
4 | 102 | 3.0 | 150 | 450 | 10000 |
4 | 102 | 3.5 | 200 | 600 | 11715 |
5 | 127 | 3.0 | 150 | 450 | 12286 |
5 | 127 | 3.8 | 200 | 600 | 14572 |
6 | 152 | 3.2 | 150 | 450 | 15143 |
6 | 152 | 4.3 | 200 | 600 | 18000 |
8 | 203 | 3.3 | 150 | 450 | 19715 |
8 | 203 | 4.5 | 200 | 600 | 22858 |
10 | 254 | 3.8 | 150 | 450 | 35715 |
10 | 254 | 4.8 | 200 | 600 | 42286 |
12 | 305 | 4.0 | 150 | 450 | 63143 |
Linyi Saijun Pipe Industry Co., Ltd is a professional manufacturer of Lay flat hoses from 1998 years, that are rapidly replacing unconventional rigid pipes in numerous applications around the world.
Product
Saijun have a wide range of lay flat hoses for using in a number of areas, such as offshore fluid transfer, irrigation, agriculture, construction, military, fuel and chemical transfer, marine and fire-fighting, mining, and industrial water supply operations etc. Mainly,
Thermoplastic Polyurethane (TPU) layflat hoses
Nitrile Rubber layflat hoses
PVC layflat hoses
Fittings and Couplings
Quality
Our hoses and fittings are submitted to a strict quality control, which made based on ISO and Chinese Military QMS requirement. All Saijun products are built using high quality raw materials, each step is exhaustively monitored throughout manufacturing process. We have got certificates for Petroleum and Chemical, Mining.
Customization
We can adapt to produce hoses that meets the specific requirements of special customers.
Manure hose for Agriculture
